ATI TEC/Peltier Controller Family Comparison
Compare ATI TEC/Peltier controller platforms by input voltage, maximum output voltage, dimensions, shutdown behavior, package type, evaluation board availability, and application notes. Use the part-number links for product pages and the PDF links for datasheets.
TEC Controller Comparison Table
| Image | Part Number | Datasheet | Input Voltage | Max. Output Voltage | Dimension (mm) |
Temp Pin @ Shutdown |
4V / 3V / 2.5V Ref. @ Shutdown |
Package Type | Evaluation Board | Note |
|---|---|---|---|---|---|---|---|---|---|---|
 |
TEC14M5V3R5AS | 4.75 ~ 5.25V | VPS − 0.2V | 14×14×2.2 | Disabled | Working | SMT | — | Micro TEC Controller | |
 |
TEC28V15A | 6 ~ 28V | 22V | 35.78×35.78×7.2 | Disabled | Disabled | DIP/SMT | TEC28V15AEV1 | — | |
 |

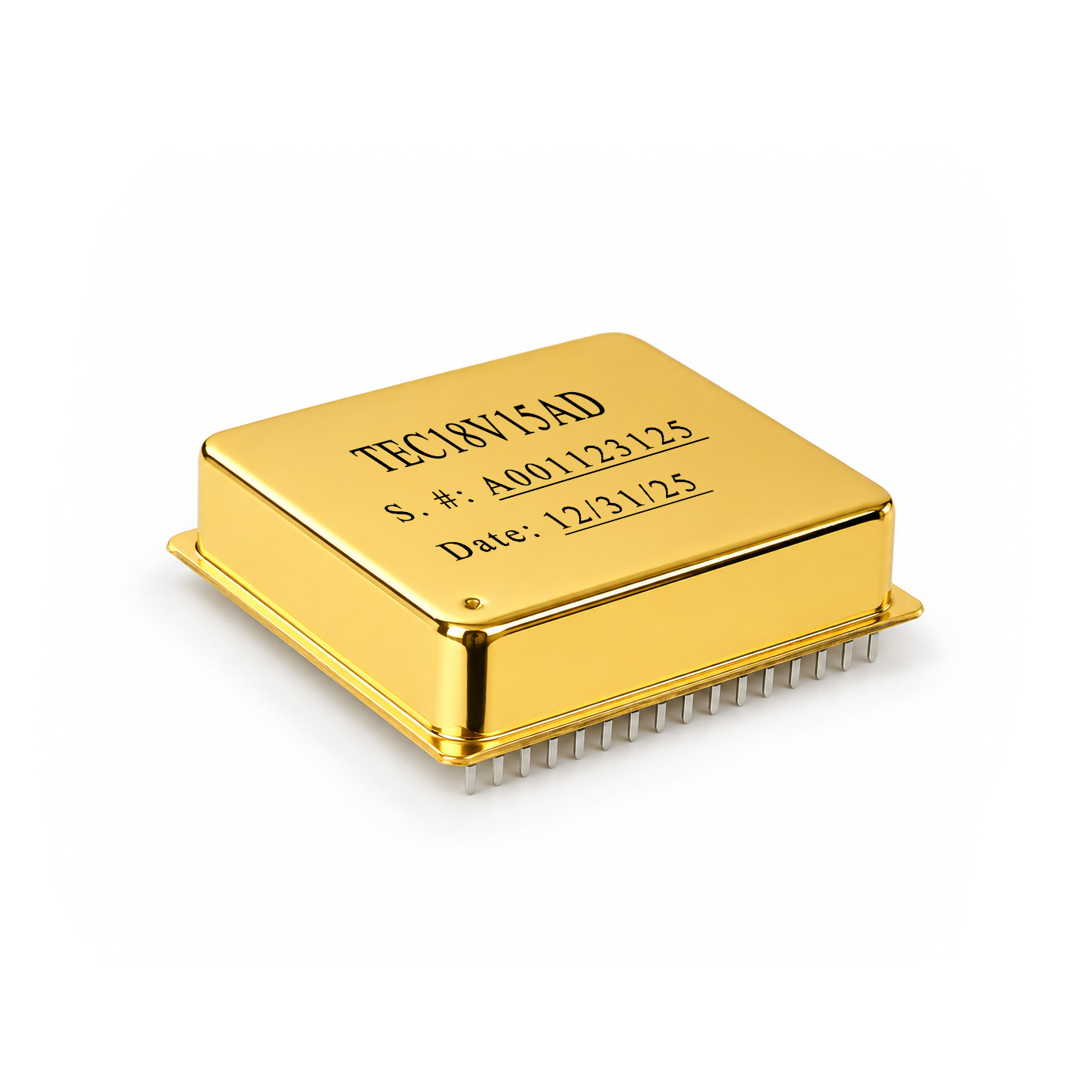

TEC18V15A | 6 ~ 18V | ±15V | 35.78×35.78×7.2 | Disabled | Disabled | DIP/SMT | TEC28V15AEV1 | — | |
 |

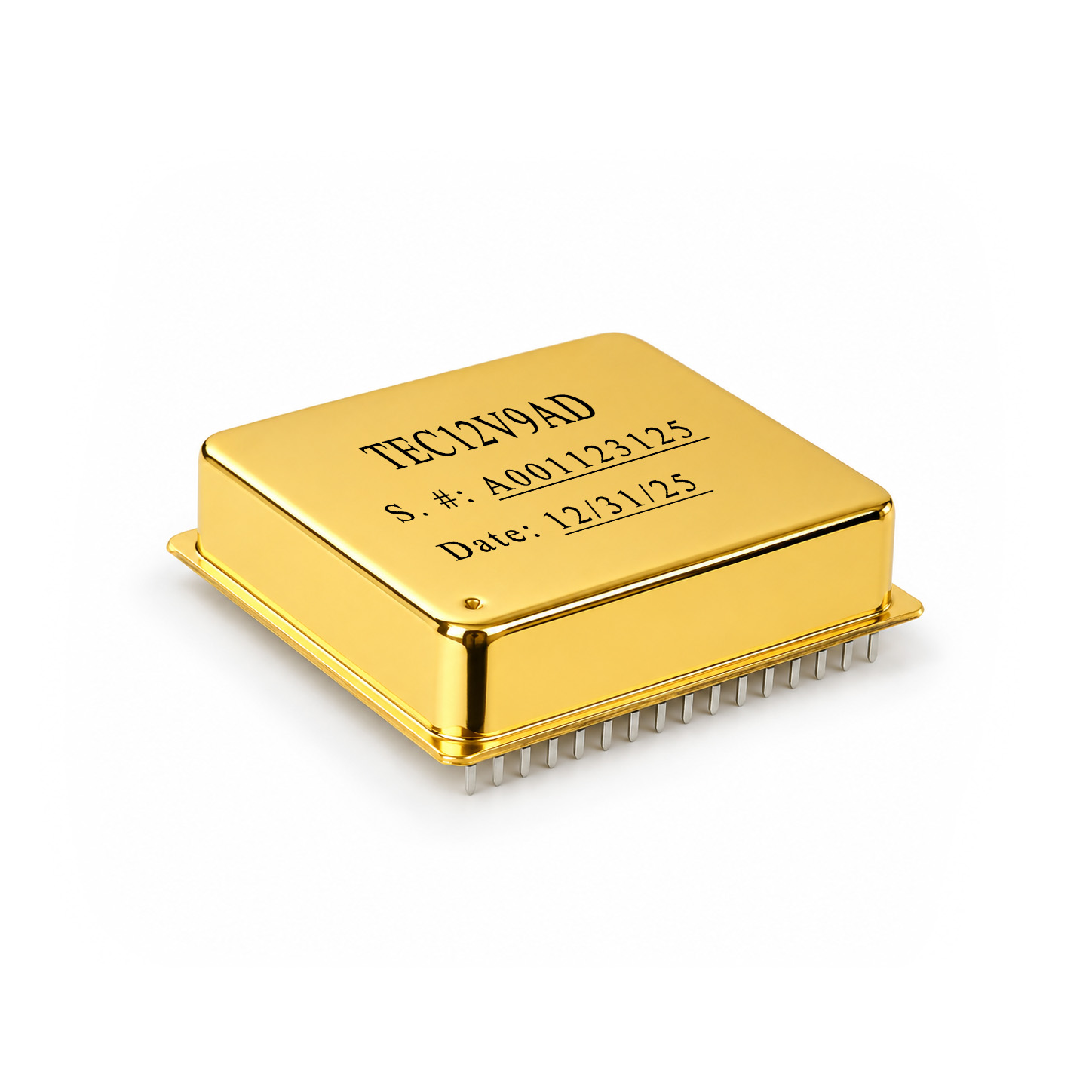

TEC12V15A | 6 ~ 12V | ±10V | 35.78×35.78×7.2 | Disabled | Disabled | DIP/SMT | TEC28V15AEV1 | — | |
 |

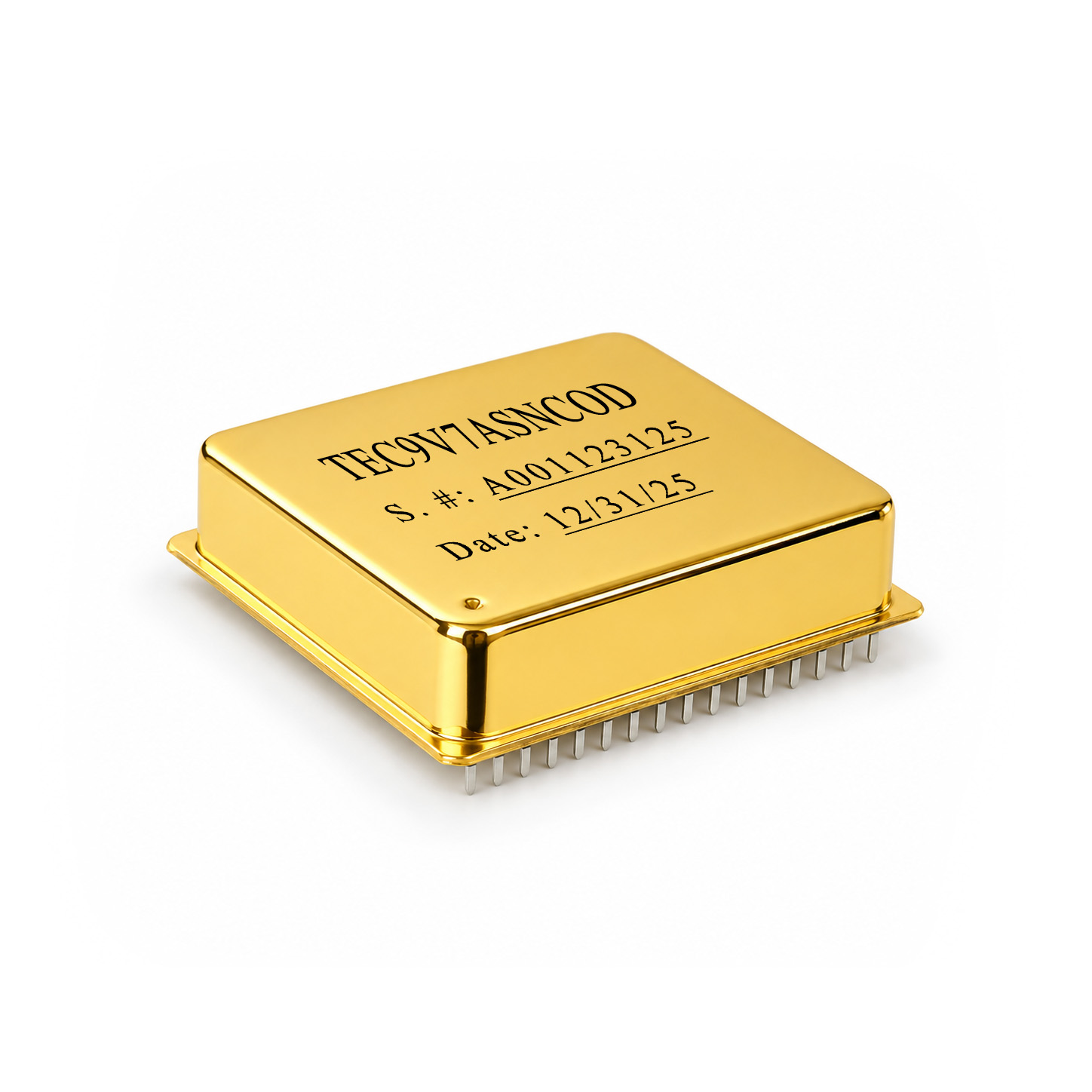

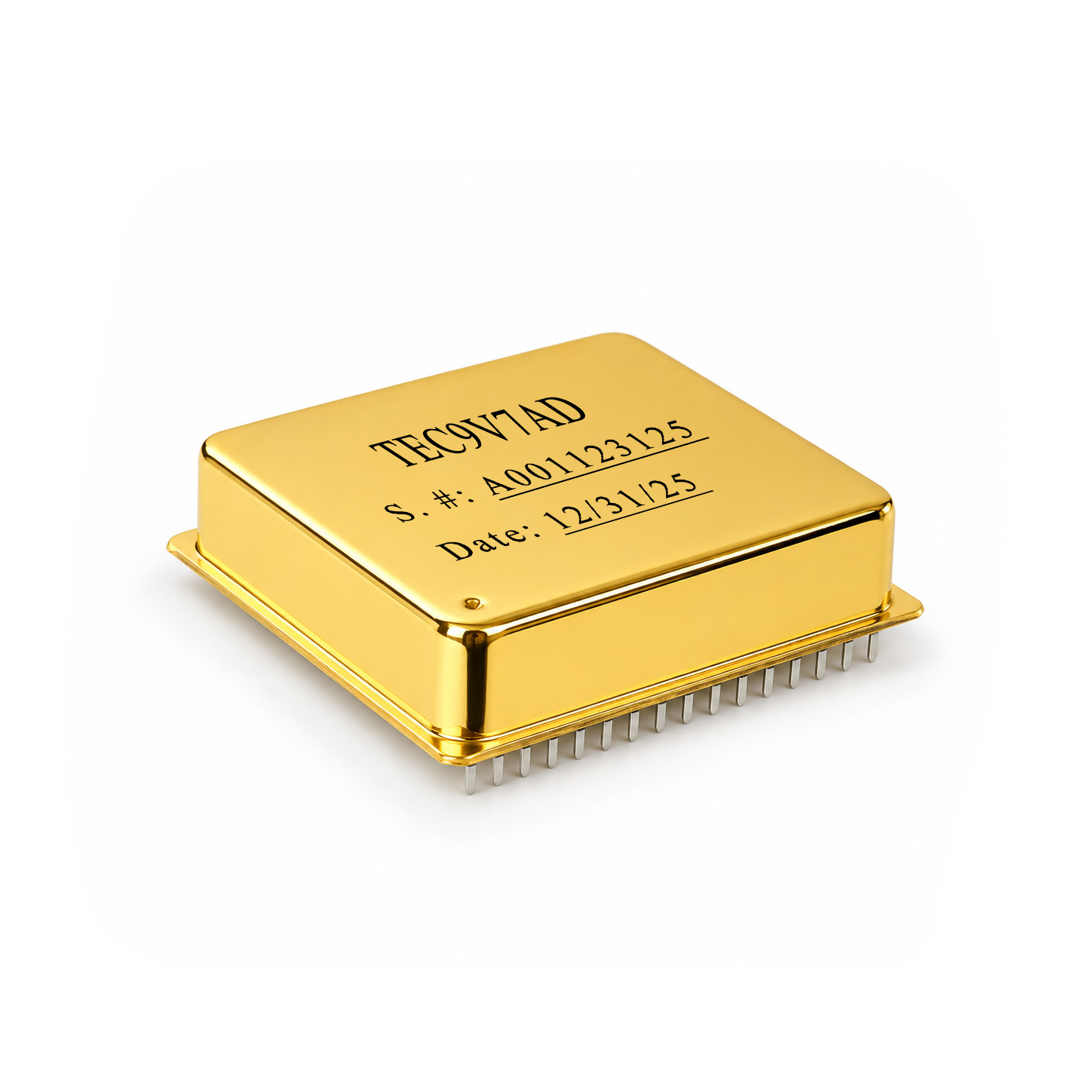

TEC9V15A | 6 ~ 9V | ±7.5V | 35.78×35.78×7.2 | Disabled | Disabled | DIP/SMT | TEC28V15AEV1 | — | |
 |
TEC50V20ACH | 12V ~ 50V | 40V | 61×63×16.7 | Disabled | Disabled | Chassis | – | – | |
 |
TEC5V4A-D | 4.75 ~ 5.25V | VPS − 0.2V | 25.4×19.9×8.8 | Working | Working | DIP | TECEV104 | — | |
|
TEC5V4A-NT | 4.75 ~ 5.25V | VPS − 0.2V | 25.4×19.9×8.8 | Working | Working | DIP | TECEV104 | No Default Temp. Setting Network | |
|
TEC5V4A-DB | 4.75 ~ 5.25V | VPS − 0.2V | 25.4×19.9×8.8 | Disabled | Working | DIP | TECEV104 | — | |
 |
TEC5V6A-D | 4.75 ~ 5.25V | VPS − 0.3V | 25.4×19.9×8.8 | Working | Working | DIP | TECEV104 | — | |
|
TEC5V6A-NT | 4.75 ~ 5.25V | VPS − 0.3V | 25.4×19.9×8.8 | Working | Working | DIP | TECEV104 | No Default Temp. Setting Network | |
 |
TECA2-xV-xV-DAH | 4.75 ~ 5.25V | VPS − 0.3V | 25.4×19.9×8.0 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-6A-NT | 4.75 ~ 5.25V | VPS − 0.3V | 25.4×19.9×8.8 | Working | Working | DIP | TECEV104 | No Default Temp. Setting Network | |
 |
TECA1-5V5V-NT | 4.75 ~ 5.25V | VPS − 0.3V | 25.4×19.9×8.8 | Working | Working | DIP | TECEV104 | No Default Temp. Setting Network | |
|
TECA1-5V-6A-D | 4.75 ~ 5.25V | VPS − 0.3V | 25.4×19.9×8.8 | Working | Working | DIP | TECEV104 | With Default Temp. Setting Network | |
 |
TECA1-3V-1.3V-D | 3.3V | 1.3V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-3V-1.3V-DB | 3.3V | 1.3V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-3V-1.3V-S | 3.3V | 1.3V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-3V-1.3V-SB | 3.3V | 1.3V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-3V-2V-D | 3.3V | 2V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-3V-2V-DB | 3.3V | 2V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-3V-2V-S | 3.3V | 2V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-3V-2V-SB | 3.3V | 2V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-3V-2.5V-D | 3.3V | 2.5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-3V-2.5V-DB | 3.3V | 2.5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-3V-2.5V-S | 3.3V | 2.5V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-3V-2.5V-SB | 3.3V | 2.5V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-3V-3V-D | 3.3V | 3V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-3V-3V-DB | 3.3V | 3V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-3V-3V-S | 3.3V | 3V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-3V-3V-SB | 3.3V | 3V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-5V-2V-D | 5V | 2V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-2V-DB | 5V | 2V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-2V-S | 5V | 2V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-5V-2V-SB | 5V | 2V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TEC-5V-2.5V-D | 5V | 2.5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TEC-5V-2.5V-DB | 5V | 2.5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-2.5V-D | 5V | 2.5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-2.5V-DB | 5V | 2.5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-2.5V-S | 5V | 2.5V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-5V-2.5V-SB | 5V | 2.5V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-5V-2.5V-D-OP | 5V | 2.5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-2.5V-D-OPB | 5V | 2.5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
 |
TECA1-5V-2.5V-DU | 5V | 2.5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-2.5V-DUB | 5V | 2.5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
 |
TECA1-5V-2.5V-S-OP | 5V | 2.5V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-5V-2.5V-S-OPB | 5V | 2.5V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-5V-3V-D | 5V | 3V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-3V-DB | 5V | 3V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-3V-S | 5V | 3V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-5V-3V-SB | 5V | 3V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-5V-3.5V-D | 5V | 3.5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-3.5V-DB | 5V | 3.5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-3.5V-S | 5V | 3.5V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-5V-3.5V-SB | 5V | 3.5V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-5V-4V-D | 5V | 4V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-4V-DB | 5V | 4V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-4V-S | 5V | 4V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-5V-4V-SB | 5V | 4V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
|
TECA1-5V-5V-D | 5V | 5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-5V-DB | 5V | 5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-5V-DS | 5V | 5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-5V-DSB | 5V | 5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
 |
TECA1-5V-5V-DU | 5V | 5V | 25.4×17.78×4.5 | Working | Working | DIP | TECEV104 | — | |
|
TECA1-5V-5V-DUB | 5V | 5V | 25.4×17.78×4.5 | Disabled | Working | DIP | TECEV104 | — | |
|
TECA1-5V-5V-S | 5V | 5V | 25.4×17.78×4.5 | Working | Working | SMT | TECEV104 | — | |
|
TECA1-5V-5V-SB | 5V | 5V | 25.4×17.78×4.5 | Disabled | Working | SMT | TECEV104 | — | |
 |
TECA1-xV-xV-DAH | 6V | VPS − 5V | 25.4×19.9×4.5 | Working | Working | DIP | TECEV104 | Maximum |V TEMP − V TEMPSP | ≤ 0.5mV | |
 |
ATW3A314 | 3.1 ~ 5.5V | 0 − VPS | 25.4×19.9×6.8 | — | — | DIP | — | Under Development | |
 |
ATEC24V10A-D | 5 ~ 25V | 24V | 38.8 × 34.5 × 7.5 | — | — | DIP | — | Under Development |
