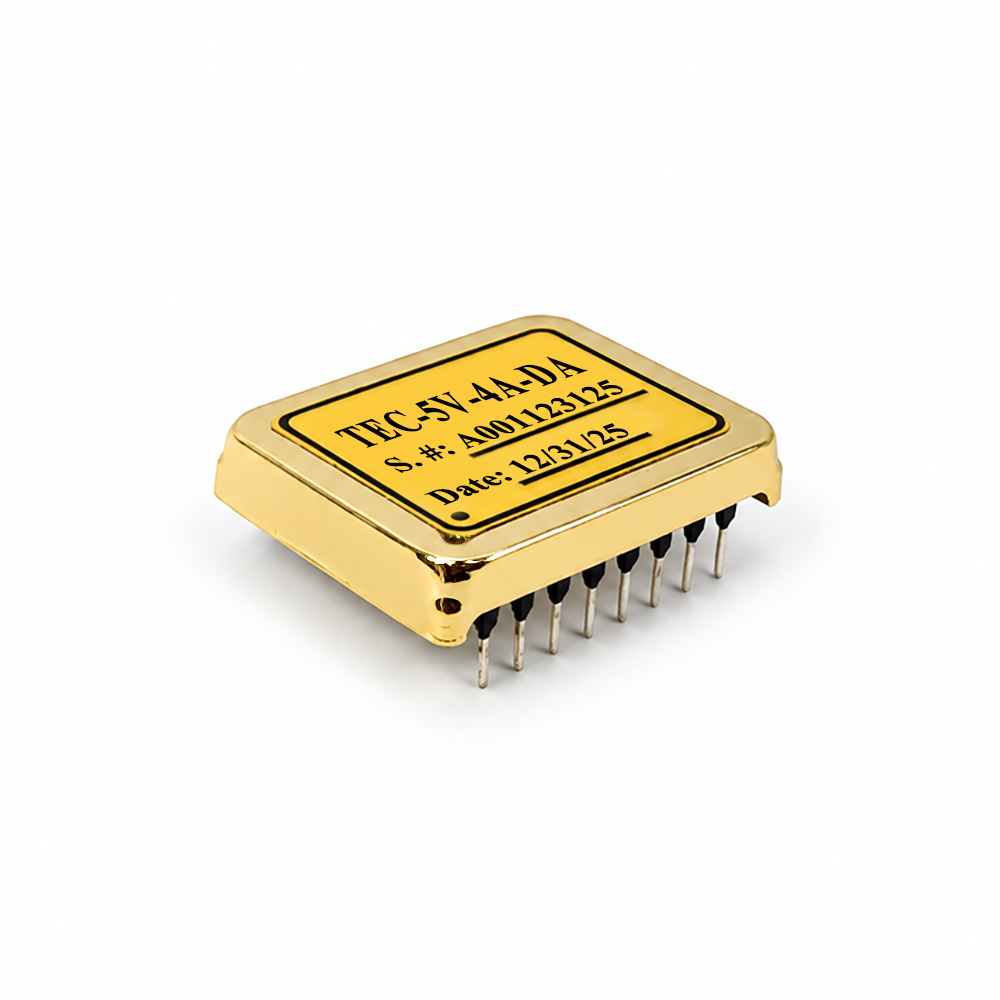

TEC5V4A-DA 4A 2mV TEC Controller for 5V Supply
$89.00
Bipolar TEC Controller
Input Voltage (VVPS): 5V
Max. Output Voltage: ±4.8V
Max. Output Current: 4A
Stability: ≤2mV (|VTEMP−VTEMPSP|)
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $89.00 |
| 10 - 49 | $86.00 |
| 50 - 199 | $83.00 |
| 200 - 499 | $80.00 |
| 500 + | $77.00 |
Product Overview
The TEC5V4A-DA is a compact bipolar TEC controller designed for driving Peltier modules up to 4A. It operates from a 5V power supply with bidirectional ±4.8V output, enabling both heating and cooling control in a small DIP form factor.
Well-suited for laser diode temperature stabilization, small sensor cooling, and other applications requiring precise temperature control with minimal board space.
Specifications
| Input Voltage (VVPS) | 5V |
| Max. Output Voltage | ±4.8V |
| Max. Output Current | 4A |
| Temperature Stability | ≤2mV (|VTEMP−VTEMPSP|) |
| Output Polarity | Bipolar (Heating & Cooling) |
| Sensor Type | Thermistor |
| Efficiency | ≥90% |
| Package Type | DIP |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 25.4×19.9×4.5 |
| Weight | 0.3 lbs |
|---|
