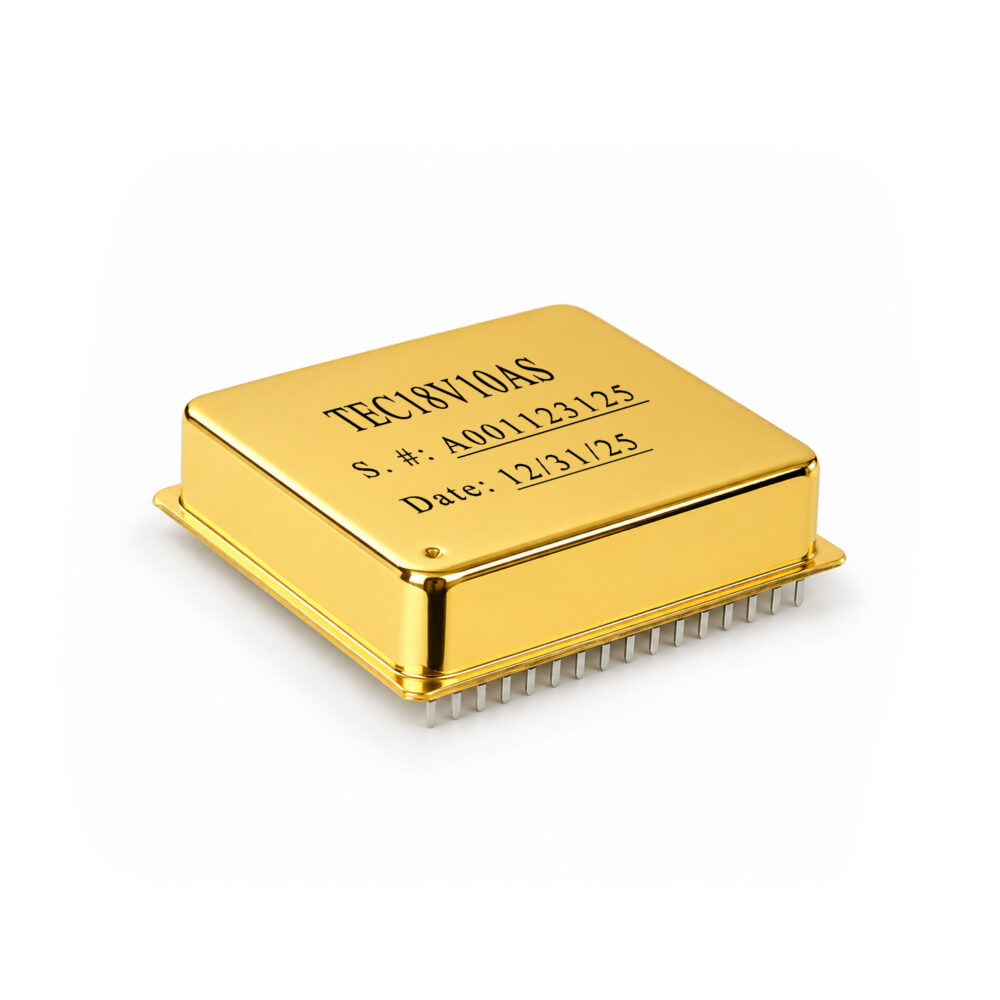

TEC18V10AS 10A High-Power TEC Controller, 6V ~ 18V Supply
$189.00
High-Power Bipolar TEC Controller, Multi-Sensor Support
Input Voltage (VVPS): 5.5V ~ 18V
Max. Output Voltage: ±18V
Max. Output Current: 10A
Stability: <±0.001°C
Available on backorder
Product Overview
The TEC18V10AS is a high-power bipolar TEC controller capable of driving up to 10A across the TEC at ±18V output. It operates from a 5.5V ~ 18V supply with support for thermistor, RTD, and IC temperature sensors.
Designed for industrial cooling, high-power laser thermal management, CCD/IR sensor stabilization, and other demanding temperature control applications requiring sub-millikelvin stability.
Specifications
| Input Voltage (VVPS) | 5.5V ~ 18V |
| Max. Output Voltage | ±18V |
| Max. Output Current | 10A |
| Temperature Stability | <±0.001°C |
| Output Polarity | Bipolar (Heating & Cooling) |
| Sensor Type | Thermistor, RTD, or IC Sensor |
| Efficiency | ≥92% |
| Package Type | SMT |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 35.7×35.7×7.2 |
| Weight | 0.3 lbs |
|---|---|
| TEC Max Current | 6A And Above |
| TEC Input Voltage | 5.5V ~ 18V |
| TEC Package | SMT |
| TEC Stability Class | High Precision |
| Iout | 10A |
| Vin | 5.5V ~ 18V |
| Vout | ±18V |
| Temp Stability | <±0.001°C |
| Features | Multi-Sensor |
