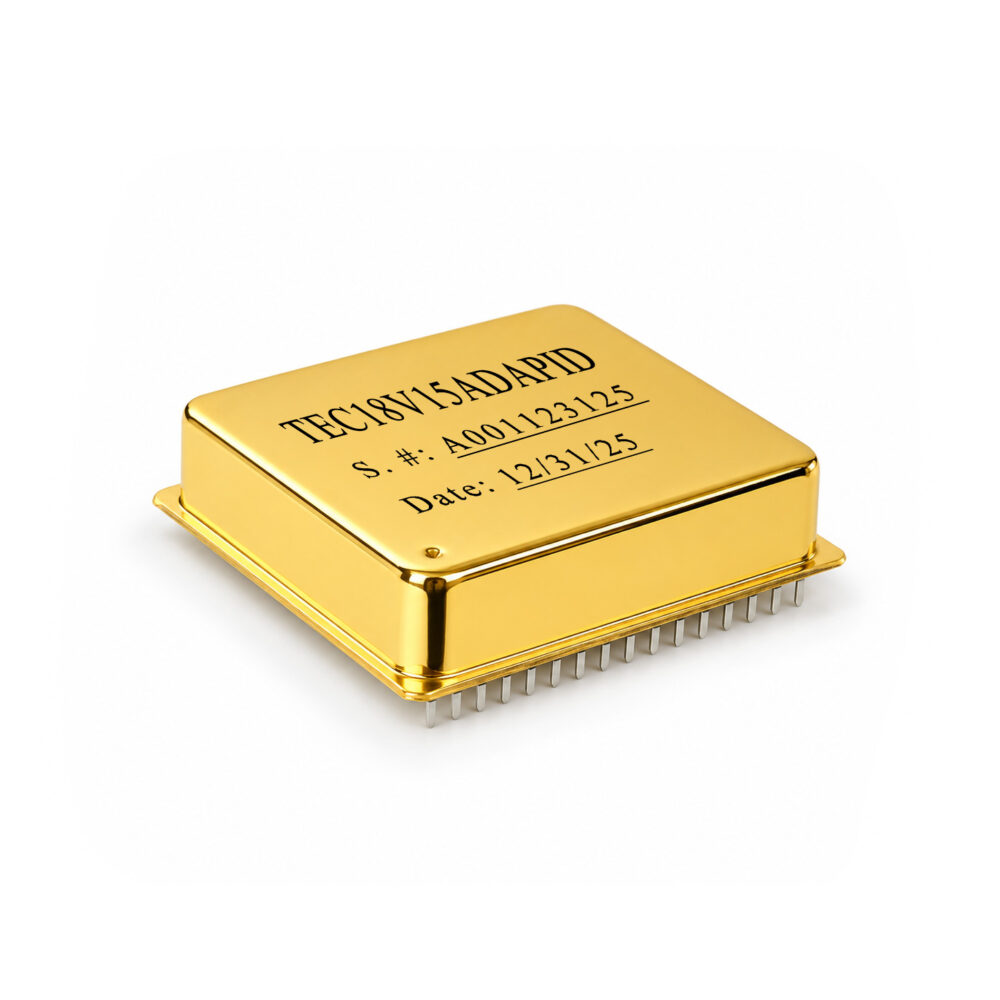

TEC18V15ADAPID 15A High-Power TEC Controller, Built-in Auto-PID
$249.00
High-Power TEC Controller with Built-in Auto-PID
Input Voltage (VVPS): 5.5V ~ 18V
Max. Output Voltage: ±17.5V
Max. Output Current: 15A
Stability: <±0.001°C
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $249.00 |
| 10 - 49 | $246.00 |
| 50 - 199 | $243.00 |
| 200 - 499 | $240.00 |
| 500 + | $237.00 |
Product Overview
The TEC18V15ADAPID is a high-power bipolar TEC controller with built-in Auto-PID, capable of driving up to 15A across the TEC at ±17.5V output. The integrated Auto-PID eliminates manual loop tuning, while support for thermistor, RTD, and IC sensors offers flexibility across applications.
Designed for industrial cooling, high-power laser thermal management, CCD/IR sensor stabilization, and other demanding temperature control applications requiring sub-millikelvin stability.
Specifications
| Input Voltage (VVPS) | 5.5V ~ 18V |
| Max. Output Voltage | ±17.5V |
| Max. Output Current | 15A |
| Temperature Stability | <±0.001°C |
| Output Polarity | Bipolar (Heating & Cooling) |
| Auto-PID | Built-in (no manual tuning required) |
| Sensor Type | Thermistor, RTD, or IC Sensor |
| Efficiency | >90% |
| Package Type | DIP |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 36×36×8.2 |
| Weight | 0.3 lbs |
|---|
