$49.00
Micro SMT TEC Controller
Input Voltage (VVPS): 2.7V ~ 5.5V
Max. Output Voltage: ±VVPS
Max. Output Current: 3.5A
Stability: ≤0.001°C
57 in stock (can be backordered)
Product Overview

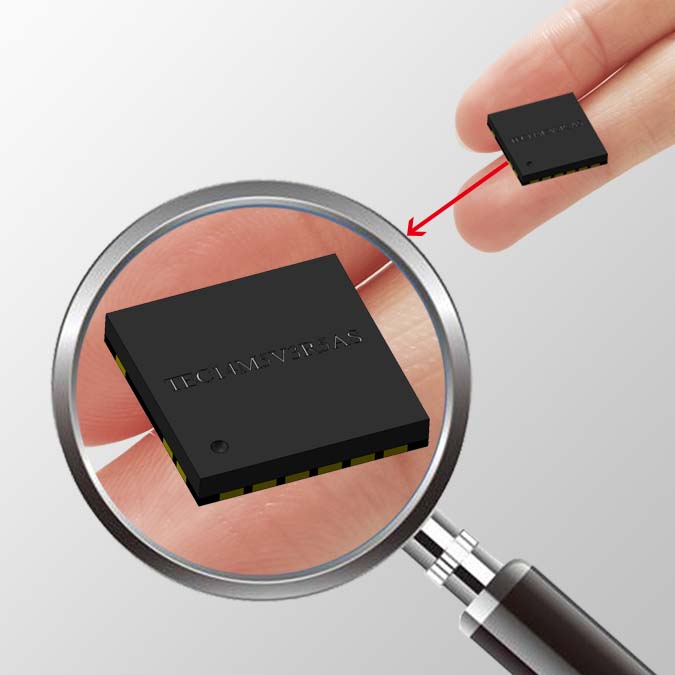

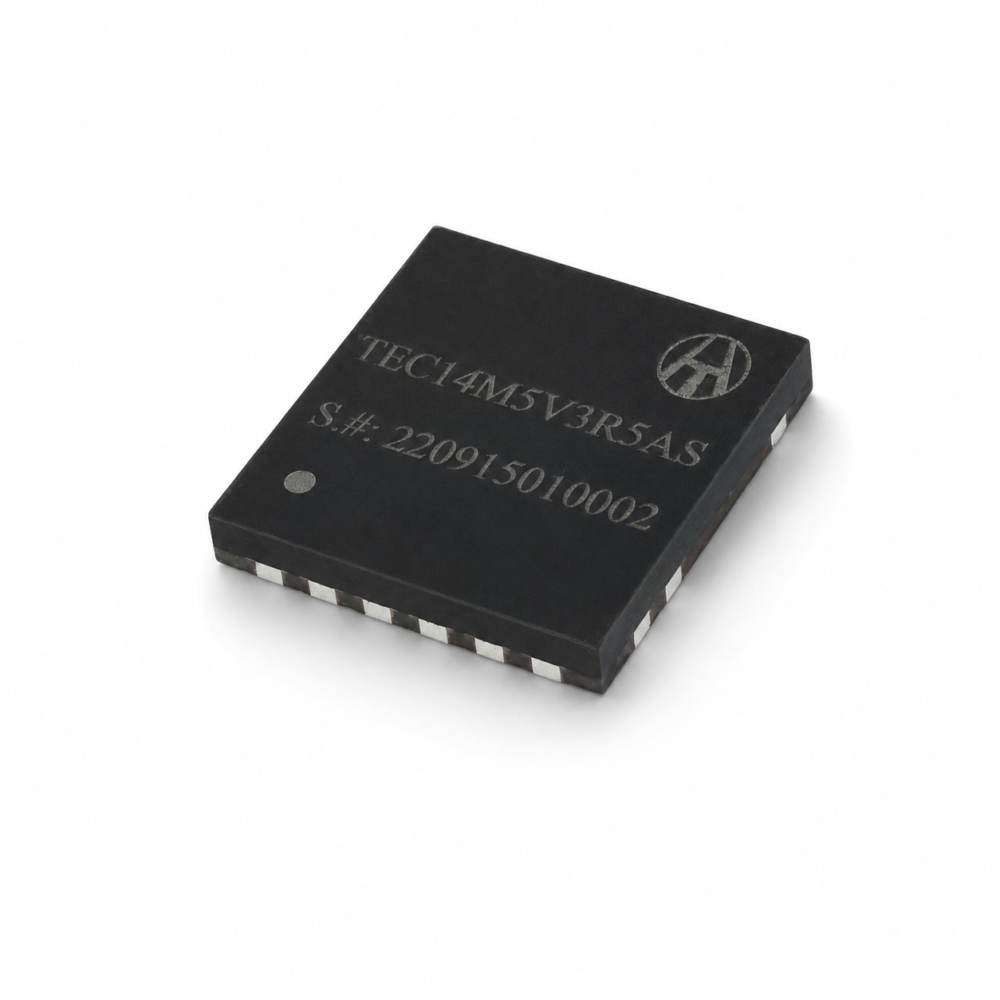

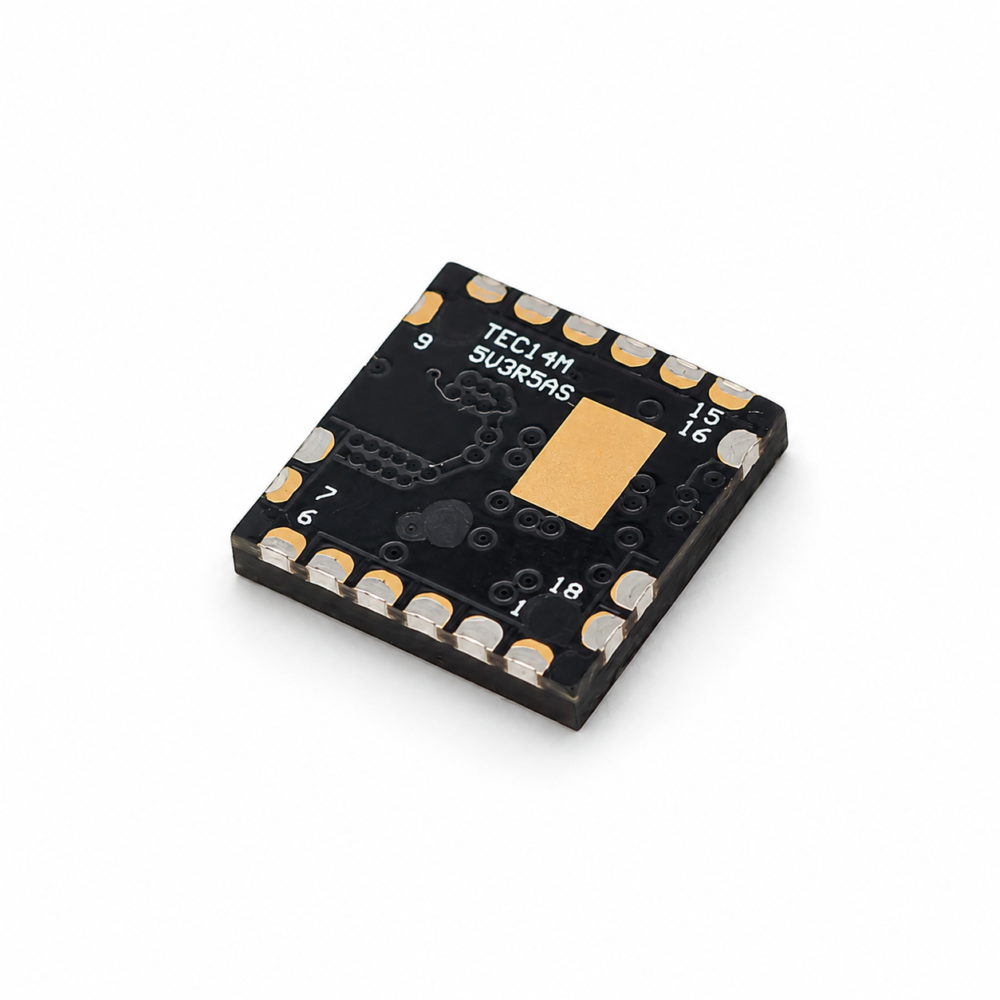

The TEC14M5V3R5AS is a micro SMT TEC controller in an ultra-compact 14×14×2.2 mm package, delivering up to 3.5A output at ±VVPS across the TEC. It operates from a 2.7V ~ 5.5V supply with sub-millikelvin temperature stability.
Optimized for portable medical devices, IoT thermal management, and any application requiring high-performance TEC control in a minimal footprint.
Specifications
| Input Voltage (VVPS) | 2.7V ~ 5.5V |
| Max. Output Voltage | ±VVPS |
| Max. Output Current | 3.5A |
| Temperature Stability | ≤0.001°C |
| Output Polarity | Bipolar (Heating & Cooling) |
| Sensor Type | Thermistor |
| Efficiency | ≥90% |
| Package Type | SMT |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 14×14×2.2 |
| Weight | 0.3 lbs |
|---|---|
| TEC Max Current | 2.5A To 6A |
| TEC Input Voltage | DC Low (Up To 5.5V) |
| TEC Package | SMT |
| TEC Stability Class | High Precision |
