$89.00

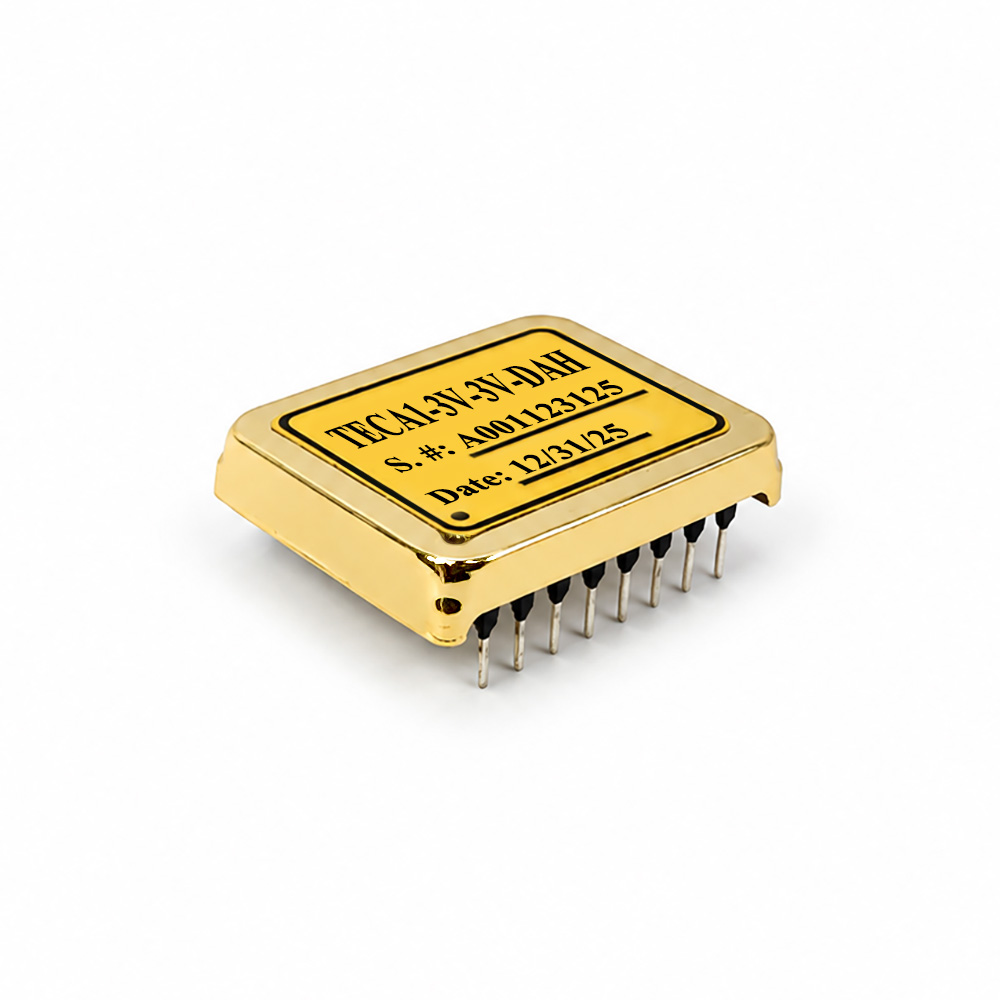

High-Precision Bipolar TEC Controller
Input Voltage (VVPS): 3V
Max. Output Voltage: ±3V
Max. Output Current: 2.5A
Stability: ≤0.5mV (|VTEMP−VTEMPSP|)
Available on backorder
Product Overview
The TECA1-3V-3V-DAH is a compact bipolar TEC controller designed for driving Peltier modules up to 2.5A. It operates from a 3V power supply with bidirectional ±3V output, enabling both heating and cooling control in a small DIP form factor.
Well-suited for laser diode temperature stabilization, small sensor cooling, and other applications requiring precise temperature control with minimal board space.
Specifications
| Input Voltage (VVPS) | 3V |
| Max. Output Voltage | ±3V |
| Max. Output Current | 2.5A |
| Temperature Stability | ≤0.5mV (|VTEMP−VTEMPSP|) |
| Output Polarity | Bipolar (Heating & Cooling) |
| Sensor Type | Thermistor |
| Efficiency | ≥90% |
| Package Type | DIP |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 25.4×19.9×8.8 |
| Weight | 0.3 lbs |
|---|---|
| TEC Max Current | Up To 2.5A |
| TEC Input Voltage | DC Low (Up To 5.5V) |
| TEC Package | DIP |
| TEC Stability Class | High Precision |
