TEC28V15AEV1 Evaluation Board for TEC28V15A TEC Controller

The TEC28V15AEV1 is a TEC controller evaluation board developed for the TEC28V15A high-efficiency TEC controller. It provides a convenient platform for evaluating TEC temperature control performance before integrating the controller into a complete thermal control system.

The TEC28V15A controller is designed to drive a thermoelectric cooler at high efficiency for precise object temperature regulation. It controls both the direction and magnitude of the current flowing through the TEC, allowing heating and cooling control for accurate temperature stabilization.

This evaluation board is designed for use with the TEC28V15A controller, which is powered by a 9 V to 28 V DC supply and can provide up to 15 A output current without using a heat sink. The board allows users to configure the maximum output voltage and current, set-point temperature range, set-point temperature, and related control parameters conveniently.

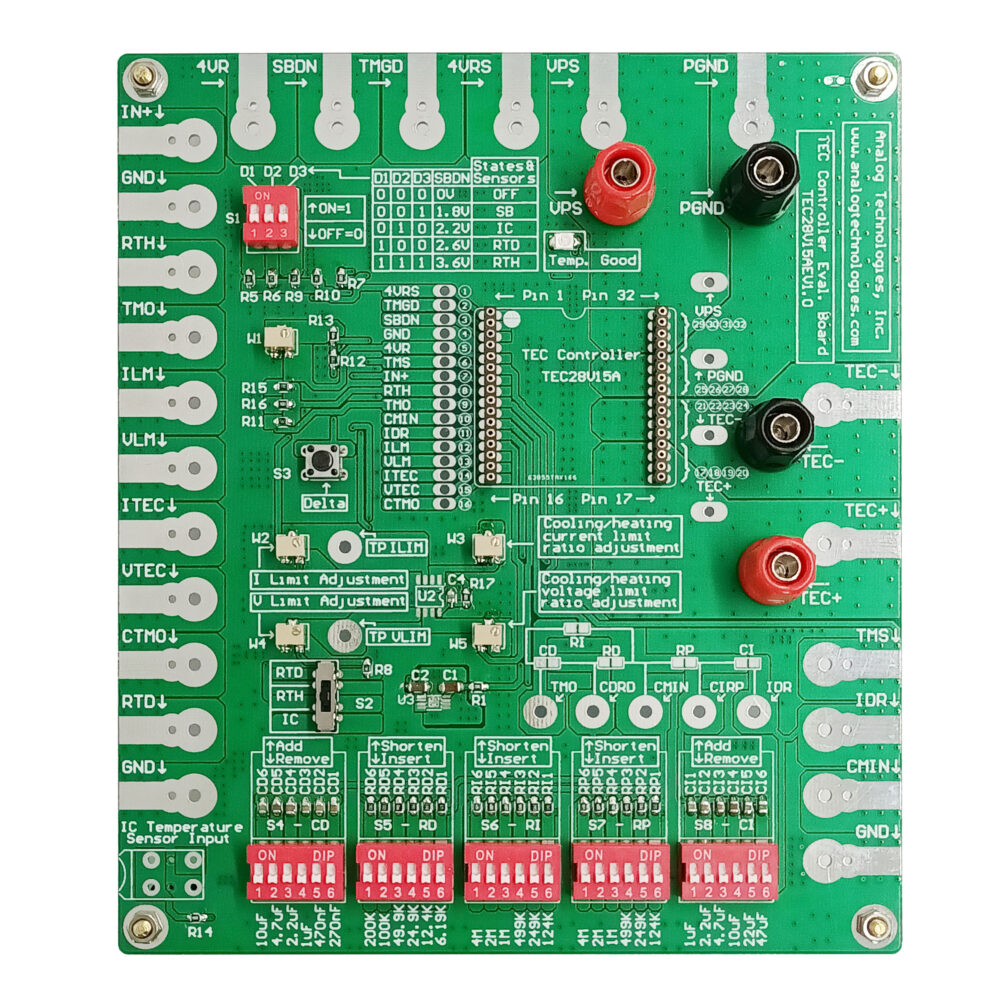

The TEC28V15AEV1 includes a complete application circuit for evaluating and driving the TEC controller. It provides an LED for indicating the working status of the controller, as well as numerous connection pads and terminal connectors for external components and instruments.

The board offers a versatile interface for necessary measurement nodes and is easy to use during TEC controller evaluation, configuration, and basic specification verification.
