$179.00
High-Power Bipolar TEC Controller, Multi-Sensor Support
Input Voltage (VVPS): 9V ~ 28V
Max. Output Voltage: ±7.5V
Max. Output Current: 7A
Stability: <0.001°C
Available on backorder
Product Overview

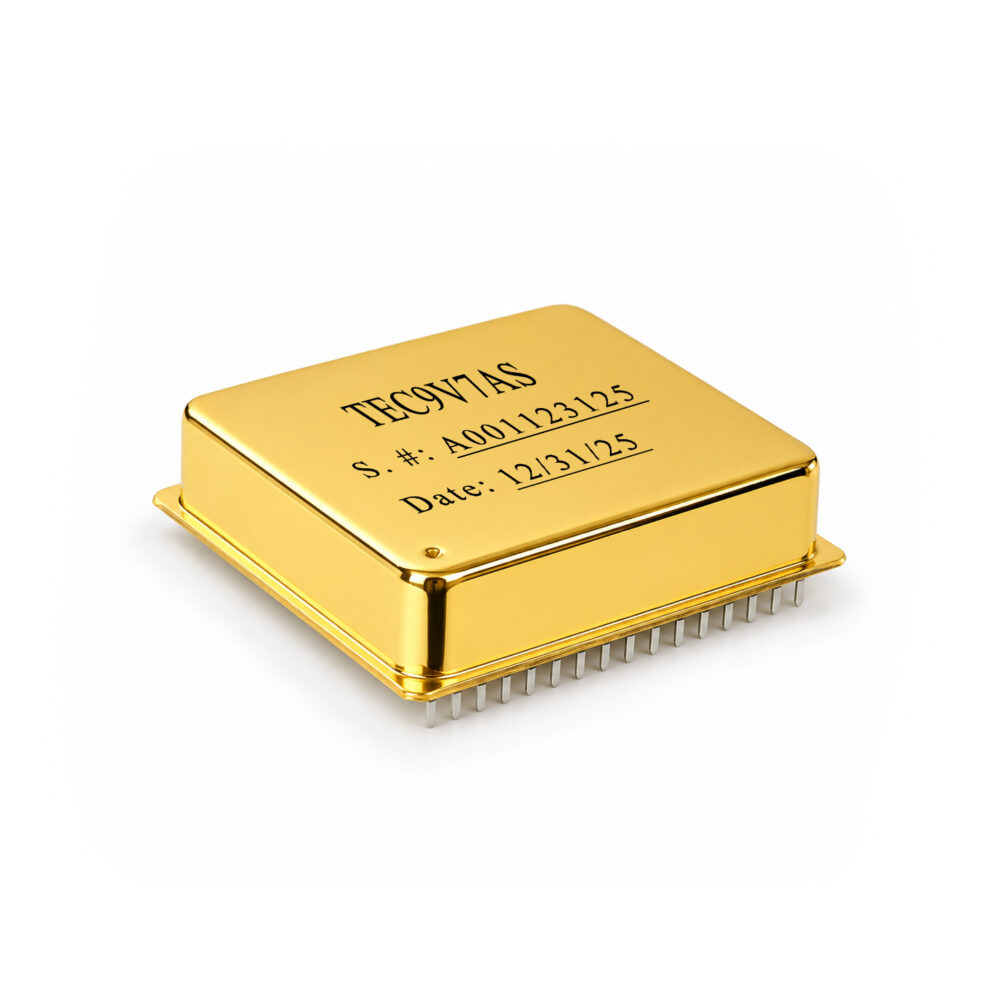

The TEC9V7AS is a high-power bipolar TEC controller capable of driving up to 7A across the TEC at ±7.5V output. It operates from a 9V ~ 28V supply with support for thermistor, RTD, and IC temperature sensors.
Designed for industrial cooling, high-power laser thermal management, CCD/IR sensor stabilization, and other demanding temperature control applications requiring sub-millikelvin stability.
Specifications
| Input Voltage (VVPS) | 9V ~ 28V |
| Max. Output Voltage | ±7.5V |
| Max. Output Current | 7A |
| Temperature Stability | <0.001°C |
| Output Polarity | Bipolar (Heating & Cooling) |
| Sensor Type | Thermistor, RTD, or IC Sensor |
| Efficiency | ≥92% |
| Package Type | SMT |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 35.7×35.7×7.2 |
| Weight | 0.3 lbs |
|---|---|
| TEC Max Current | 6A And Above |
| TEC Input Voltage | DC High (Above 18V) |
| TEC Package | SMT |
| TEC Stability Class | High Precision |
