$179.00

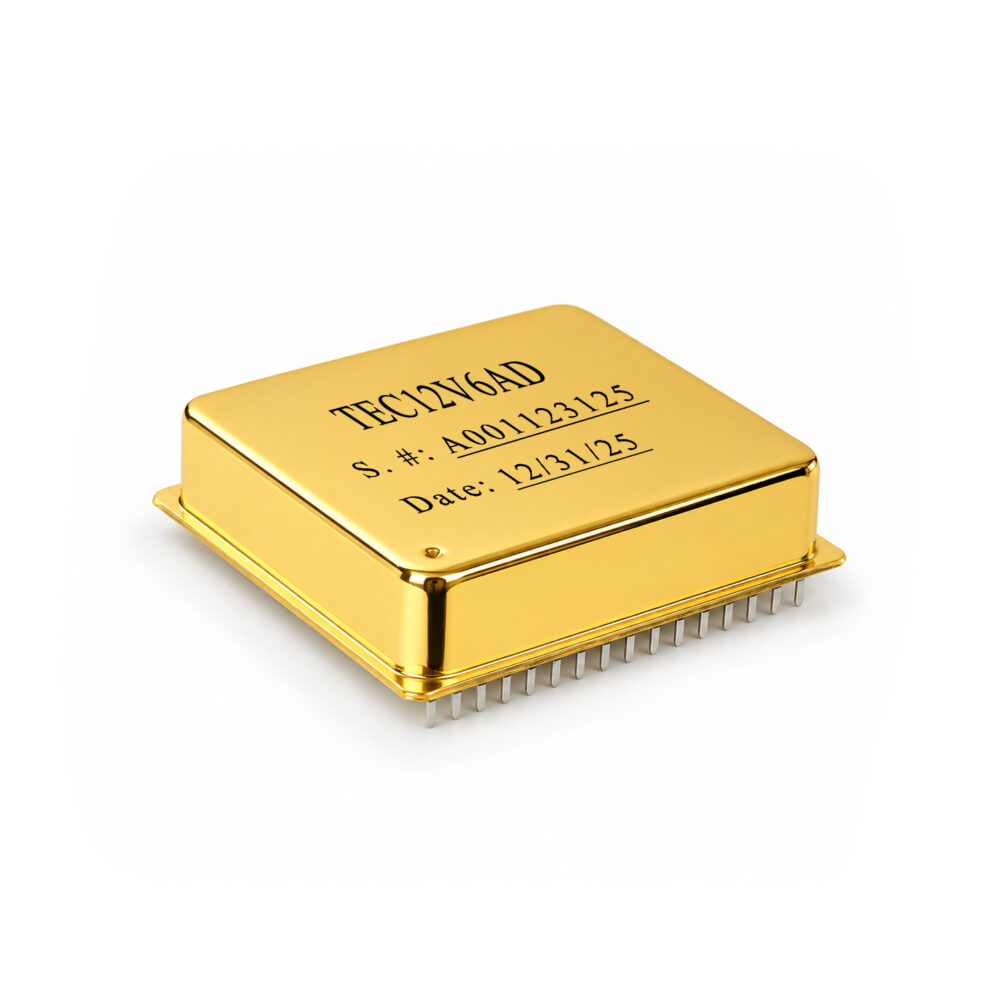

High-Power Bipolar TEC Controller, Multi-Sensor Support
Input Voltage (VVPS): 6V ~ 12V
Max. Output Voltage: ±10V
Max. Output Current: 6A
Stability: <0.001°C
Available on backorder
Product Overview
The TEC12V6AD is a high-power bipolar TEC controller capable of driving up to 6A across the TEC at ±10V output. It operates from a 6V ~ 12V supply with support for thermistor, RTD, and IC temperature sensors.
Designed for industrial cooling, high-power laser thermal management, CCD/IR sensor stabilization, and other demanding temperature control applications requiring sub-millikelvin stability.
Specifications
| Input Voltage (VVPS) | 6V ~ 12V |
| Max. Output Voltage | ±10V |
| Max. Output Current | 6A |
| Temperature Stability | <0.001°C |
| Output Polarity | Bipolar (Heating & Cooling) |
| Sensor Type | Thermistor, RTD, or IC Sensor |
| Efficiency | ≥92% |
| Package Type | DIP |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 35.7×35.7×7.2 |
| Weight | 0.3 lbs |
|---|---|
| TEC Max Current | 2.5A To 6A |
| TEC Input Voltage | DC Medium (6V To 18V) |
| TEC Package | DIP |
| TEC Stability Class | High Precision |
