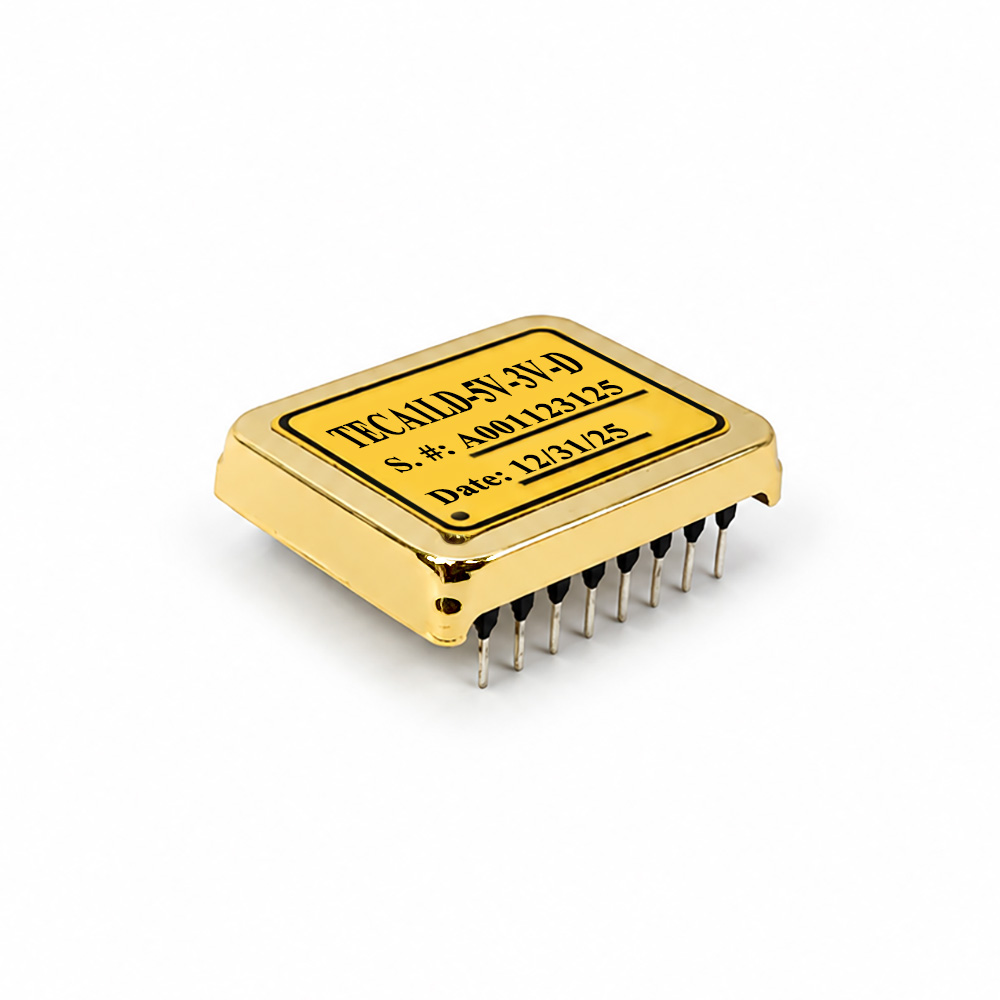

The TECA1LD-5V-3V-D is a high-precision bipolar TEC controller with a built-in compensation network, eliminating the need for external loop tuning. It operates from a 5V supply, drives up to 2.5A across the TEC at ±3V output, and delivers set-point accuracy better than ≤5mV.
Ideal for laser diode wavelength stabilization, scientific instrumentation, and other applications requiring stable, low-noise temperature control with minimal design effort.
Specifications
Input Voltage (VVPS)
5V
Max. Output Voltage
±3V
Max. Output Current
2.5A
Temperature Stability
≤5mV (|VTEMP−VTEMPSP|)
Output Polarity
Bipolar (Heating & Cooling)
Compensation Network
Built-in (no external tuning required)
Sensor Type
Thermistor
Efficiency
≥90%
Package Type
DIP
Operating Temperature (°C)
-40 ~ 85
Dimension (mm)
25.4×19.9×4.5
Weight
0.3 lbs
