$239.00

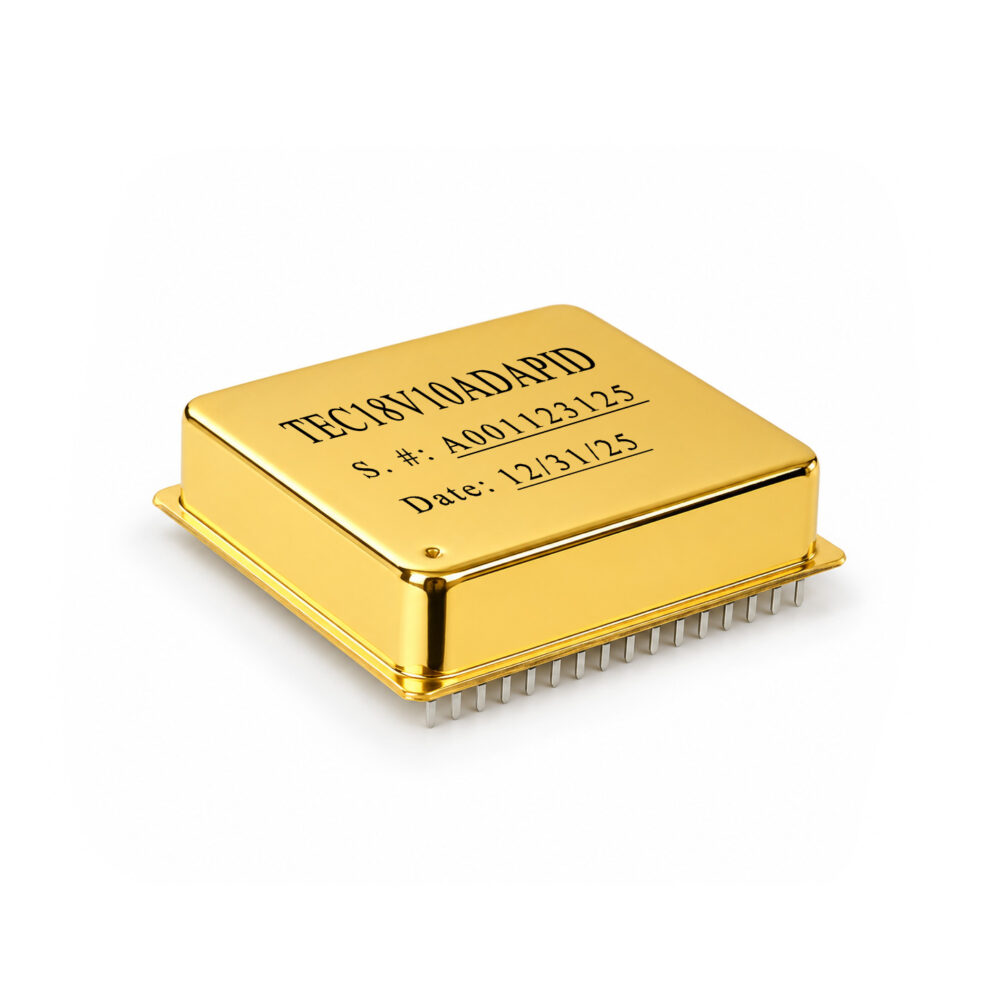

High-Power TEC Controller with Built-in Auto-PID
Input Voltage (VVPS): 6V ~ 18V
Max. Output Voltage: ±15V
Max. Output Current: 10A
Stability: <0.001°C
Available on backorder
Product Overview
The TEC18V10ADAPID is a high-power bipolar TEC controller with built-in Auto-PID, capable of driving up to 10A across the TEC at ±15V output. The integrated Auto-PID eliminates manual loop tuning, while support for thermistor, RTD, and IC sensors offers flexibility across applications.
Designed for industrial cooling, high-power laser thermal management, CCD/IR sensor stabilization, and other demanding temperature control applications requiring sub-millikelvin stability.
Specifications
| Input Voltage (VVPS) | 6V ~ 18V |
| Max. Output Voltage | ±15V |
| Max. Output Current | 10A |
| Temperature Stability | <0.001°C |
| Output Polarity | Bipolar (Heating & Cooling) |
| Auto-PID | Built-in (no manual tuning required) |
| Sensor Type | Thermistor, RTD, or IC Sensor |
| Efficiency | ≥92% |
| Package Type | DIP |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 35.7×35.7×7.2 |
| Weight | 0.3 lbs |
|---|---|
| TEC Max Current | 6A And Above |
| TEC Input Voltage | DC Medium (6V To 18V) |
| TEC Package | DIP |
| TEC Stability Class | High Precision |
