R08E96 50 300PCD 0805 1% SMD Differential Resistor Kit 510 Values
$349.00

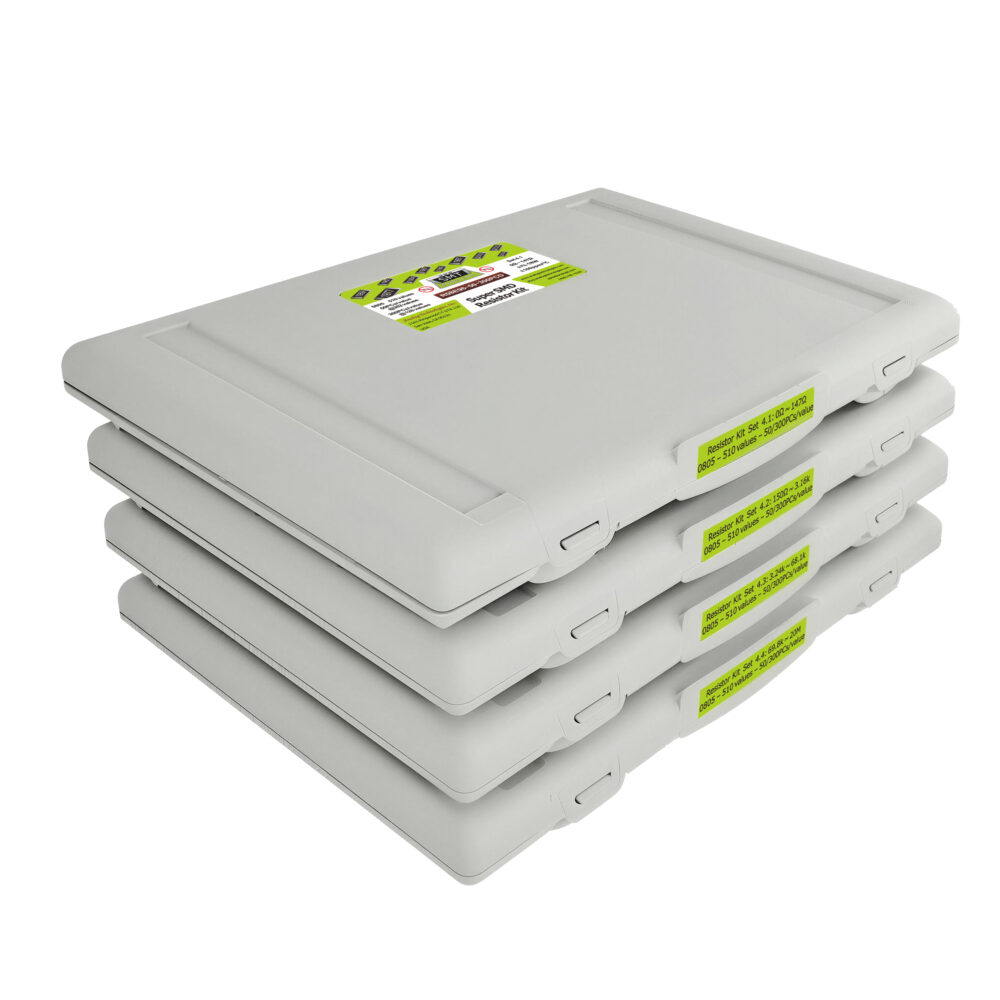

R08E96-50-300 is an 0805 1% SMD differential resistor kit with 510 values, featuring 50 pieces per rarely used value and 300 pieces per commonly used value in a sturdy snap-lockable enclosure.
Product Overview
The R08E96-50-300 is an 0805 1% SMD differential resistor kit covering all 510 values of the E-96 series. Each value is pre-sorted into its own lidded and labeled bin, so locating a specific resistor takes seconds instead of a parts-drawer search.
Quantities are matched to how often a value is actually used: 300 pieces of each commonly used value and 50 pieces of each rarely used value. The kit therefore lasts far longer in service without tying up stock in values that are rarely pulled.
Specifications
| Resistor Size | 0805 |
| Number of Values | 510 |
| Resistance Range | 0Ω to 20MΩ, 0Ω jumper < 0.05Ω |
| Tolerance | 1% |
| Power Rating | 1/8W |
| Max. Working Voltage | 150V |
| Max. Overload Voltage | 300V |
| Dielectric Withstanding Voltage | 300V |
| Operating Temperature | −55°C to 155°C |
| Temperature Coefficient | ±100 to ±200ppm/°C |
| Resistance Series | All E-96 values |
| Pieces per Value | 300 for commonly used values, 50 for rarely used values |

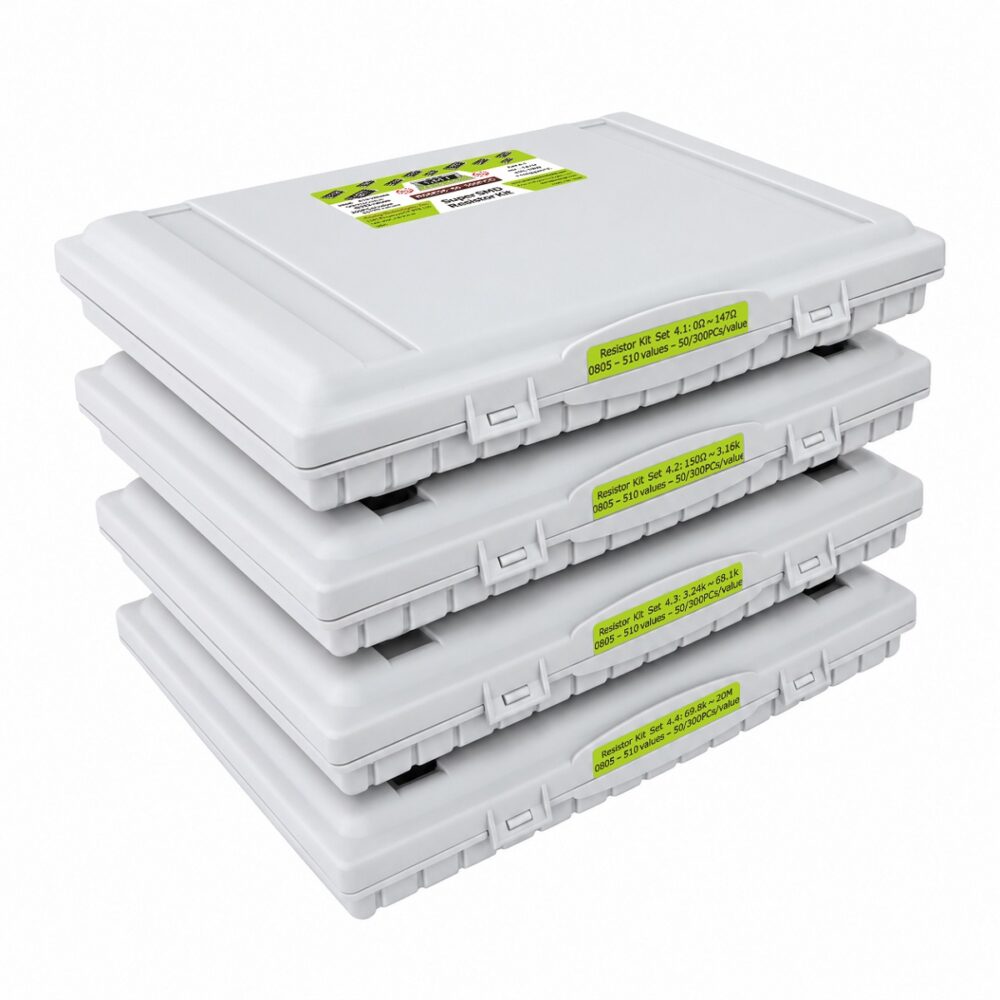

| Enclosure | 4 × 200-bin Super SMD Component Enclosure™ |
Applications
Typical uses include circuit development, prototyping, troubleshooting, board rework, and keeping an engineering or repair bench stocked with a full range of values.
| Weight | 8 lbs |
|---|---|
| Dimensions | 12 × 10 × 10 in |
| Package Size |
