R12E24 1206 1% SMD Resistor Kit 128 Values
Price range: $89.00 through $399.00
R12E24 is a 1206 1% SMD resistor kit with 128 values for electronics design, prototyping, repair, and laboratory use.
Quantity options:
R12E24-50 – 50 pieces per value
R12E24-100 – 100 pieces per value
R12E24-200 – 200 pieces per value
R12E24-500 – 500 pieces per value
Product Overview
The R12E24 is a 1206 1% SMD resistor kit holding 128 resistance values covering approximately the E-24 series. Each value is pre-sorted and stored separately, so locating a specific resistor takes seconds instead of a parts-drawer search.

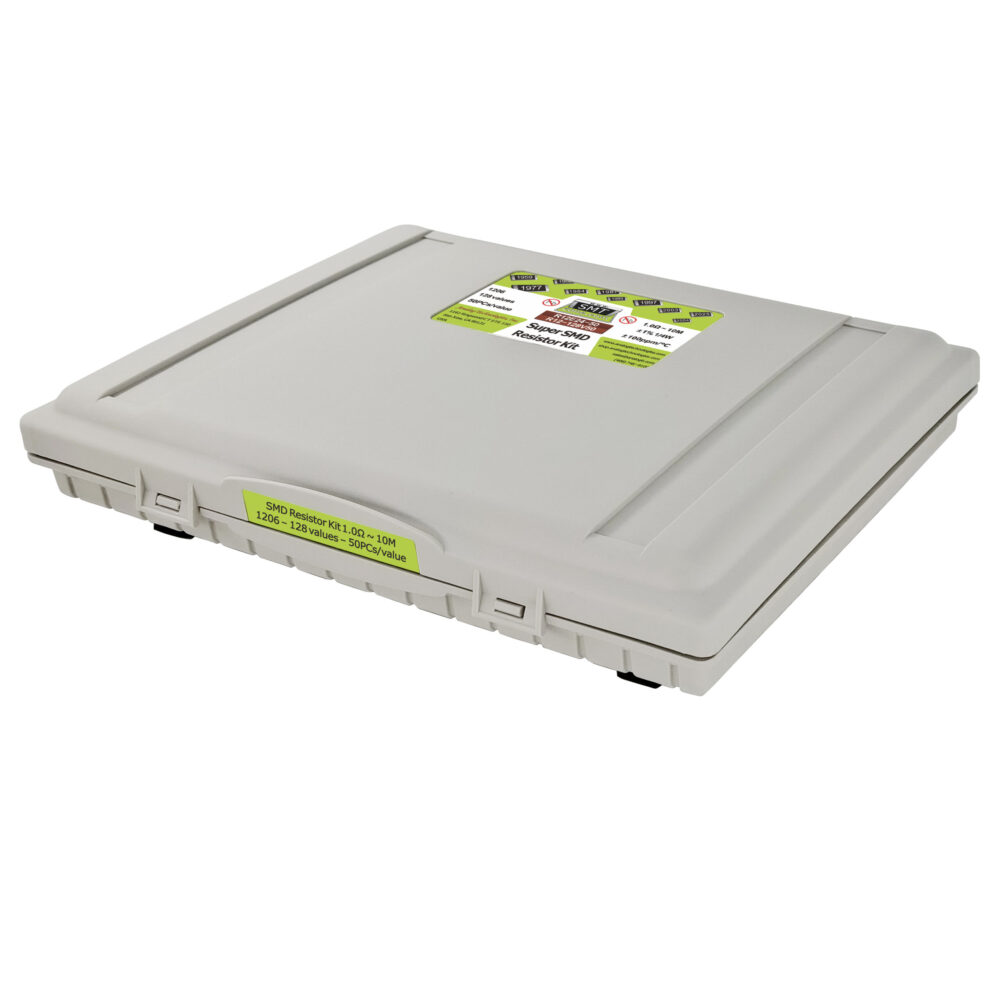

It ships in our patented Super SMD Component Enclosure with 128 individually lidded and labeled bins, which keeps the set organized on a workbench, on a shelf, or in transit to another site. Values approximate the E-24 series but are implemented with 1% resistors, so each bin holds the nearest 1% equivalent — 2.49Ω in place of the 2.4Ω E-24 value, for example.
Resistance vs. Marking Code
The bin lids are labeled with resistance values, but each 1206 resistor carries only a 4-character marking code: the first three digits are the value and the last digit is the number of zeros, while an R marks the decimal point (1R00 = 1.00Ω). The table below follows the same layout as the bins in the enclosure.
| 1.00Ω 1R00 |
10.0Ω 10R0 |
11.0Ω 11R0 |
12.1Ω 12R1 |
13.0Ω 13R0 |
15.0Ω 15R0 |
16.2Ω 16R2 |
18.2Ω 18R2 |
20.0Ω 20R0 |
22.1Ω 22R1 |
24.9Ω 24R9 |
27.4Ω 27R4 |
30.1Ω 30R1 |
33.2Ω 33R2 |
35.7Ω 35R7 |
39.2Ω 39R2 |
| 43.2Ω 43R2 |
47.5Ω 47R5 |
49.9Ω 49R9 |
51.1Ω 51R1 |
56.2Ω 56R2 |
61.9Ω 61R9 |
68.1Ω 68R1 |
75.0Ω 75R0 |
82.5Ω 82R5 |
90.9Ω 90R9 |
100Ω 1000 |
110Ω 1100 |
121Ω 1210 |
130Ω 1300 |
150Ω 1500 |
162Ω 1620 |
| 182Ω 1820 |
200Ω 2000 |
221Ω 2210 |
249Ω 2490 |
274Ω 2740 |
301Ω 3010 |
332Ω 3320 |
357Ω 3570 |
392Ω 3920 |
432Ω 4320 |
475Ω 4750 |
499Ω 4990 |
511Ω 5110 |
562Ω 5620 |
619Ω 6190 |
681Ω 6810 |
| 750Ω 7500 |
825Ω 8250 |
909Ω 9090 |
1.00K 1001 |
1.10K 1101 |
1.21K 1211 |
1.30K 1301 |
1.50K 1501 |
1.62K 1621 |
1.82K 1821 |
2.00K 2001 |
2.21K 2211 |
2.49K 2491 |
2.74K 2741 |
3.01K 3011 |
3.32K 3321 |
| 3.57K 3571 |
3.92K 3921 |
4.32K 4321 |
4.75K 4751 |
4.99K 4991 |
5.11K 5111 |
5.62K 5621 |
6.19K 6191 |
6.81K 6811 |
7.50K 7501 |
8.25K 8251 |
9.09K 9091 |
10.0K 1002 |
11.0K 1102 |
12.1K 1212 |
13.0K 1302 |
| 15.0K 1502 |
16.2K 1622 |
18.2K 1822 |
20.0K 2002 |
22.1K 2212 |
24.9K 2492 |
27.4K 2742 |
30.1K 3012 |
33.2K 3322 |
35.7K 3572 |
39.2K 3922 |
43.2K 4322 |
47.5K 4752 |
49.9K 4992 |
51.1K 5112 |
56.2K 5622 |
| 61.9K 6192 |
68.1K 6812 |
75.0K 7502 |
82.5K 8252 |
90.9K 9092 |
100K 1003 |
110K 1103 |
121K 1213 |
130K 1303 |
150K 1503 |
162K 1623 |
182K 1823 |
200K 2003 |
221K 2213 |
249K 2493 |
274K 2743 |
| 301K 3013 |
332K 3323 |
357K 3573 |
392K 3923 |
432K 4323 |
475K 4753 |
499K 4993 |
511K 5113 |
562K 5623 |
619K 6193 |
681K 6813 |
750K 7503 |
825K 8253 |
909K 9093 |
1.00M 1004 |
10.0M 1005 |
Specifications
| Resistor Size | 1206 |
| Number of Values | 128 |
| Resistance Range | 1Ω to 10MΩ |
| Tolerance | 1% |
| Power Rating | 1/4W |
| Max. Working Voltage | 200V |
| Max. Overload Voltage | 400V |
| Dielectric Withstanding Voltage | 500V |
| Operating Temperature | −55°C to 155°C |
| Temperature Coefficient | ±100 to ±200ppm/°C |
| Resistance Series | E-24 — approximated with 1% resistors |
| Pieces per Value | 50, 100, 200, 500 |
| Enclosure | 128-bin Super SMD Component Enclosure™ |
Ordering Options
| R12E24-50 | 50 pieces per value |
| R12E24-100 | 100 pieces per value |
| R12E24-200 | 200 pieces per value |
| R12E24-500 | 500 pieces per value |
Applications
Typical uses include circuit development, prototyping, troubleshooting, board rework, and keeping an engineering or repair bench stocked with a full range of values.
| Weight | 2 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Package Size |
