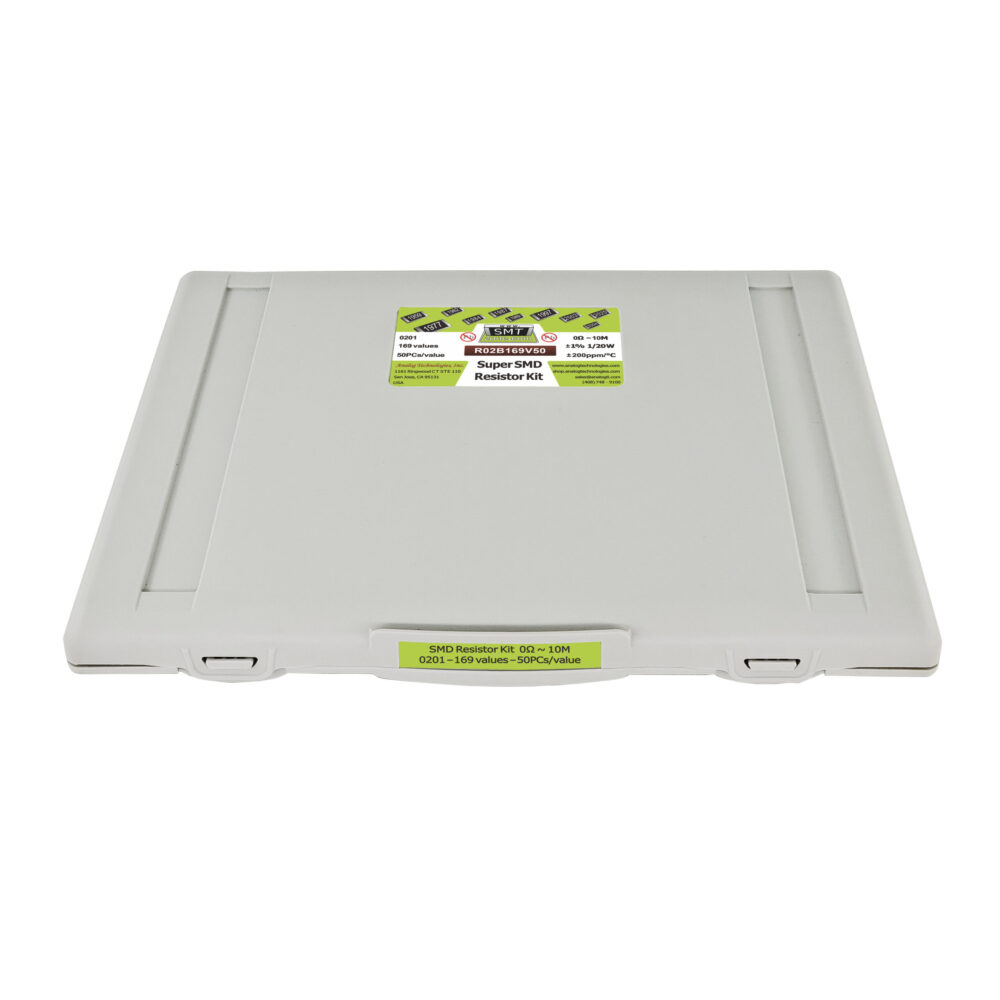

R02B169 0201 1% Upgraded Series SMD Resistor Kit 169 Values
Price range: $159.00 through $1,419.00

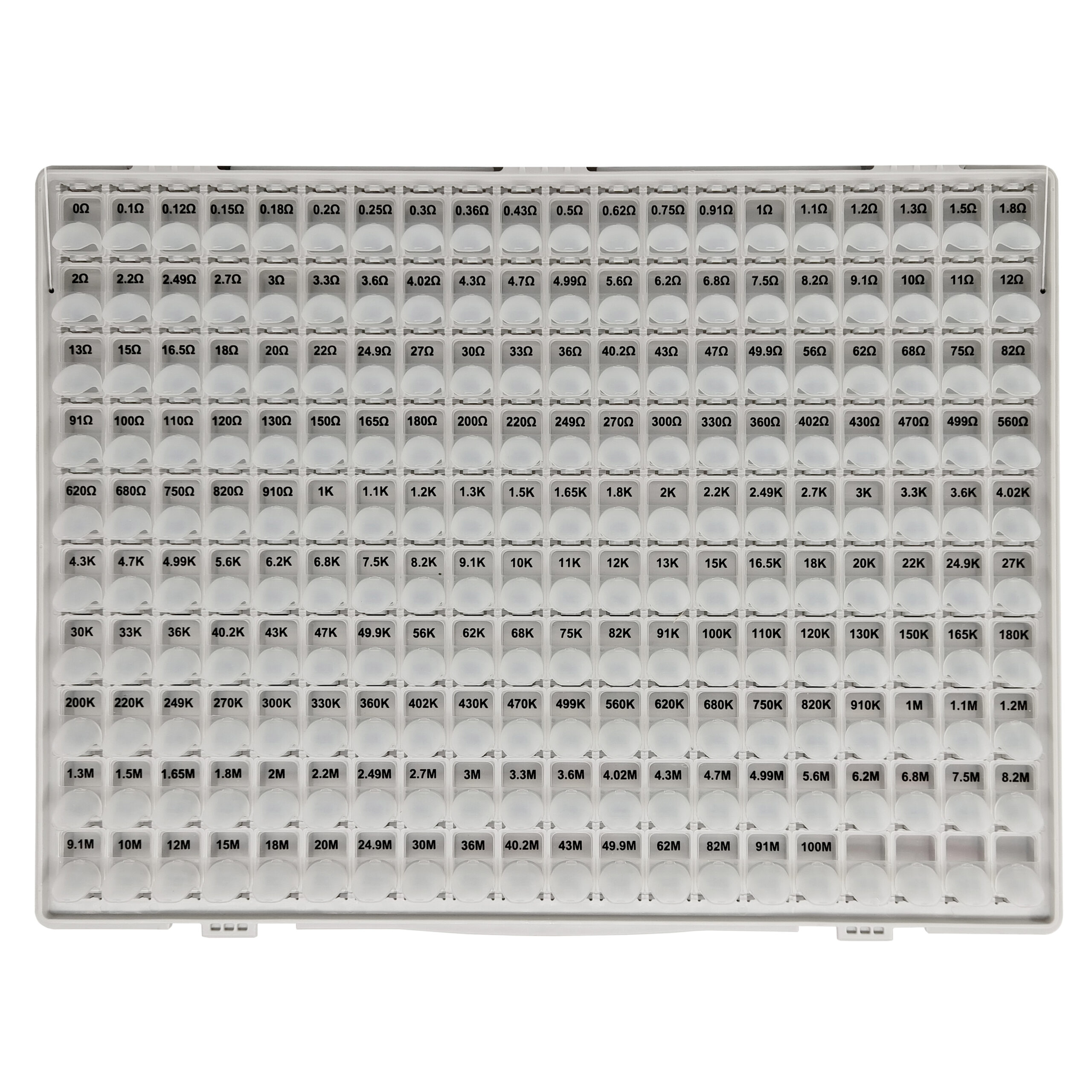

R02B169 is a 0201 1% SMD resistor kit with 169 values, supplied in our patented 200-bin Super Enclosure with individually lidded and labeled bins.
Quantity options:
R02B169V50 – 50 pieces per value
R02B169V100 – 100 pieces per value
R02B169V200 – 200 pieces per value
R02B169V500 – 500 pieces per value
R02B169V1000 – 1000 pieces per value
Product Overview
The R02B169 is a 0201 1% SMD resistor kit holding 169 resistance values. Each value is pre-sorted and stored separately, so locating a specific resistor takes seconds instead of a parts-drawer search.

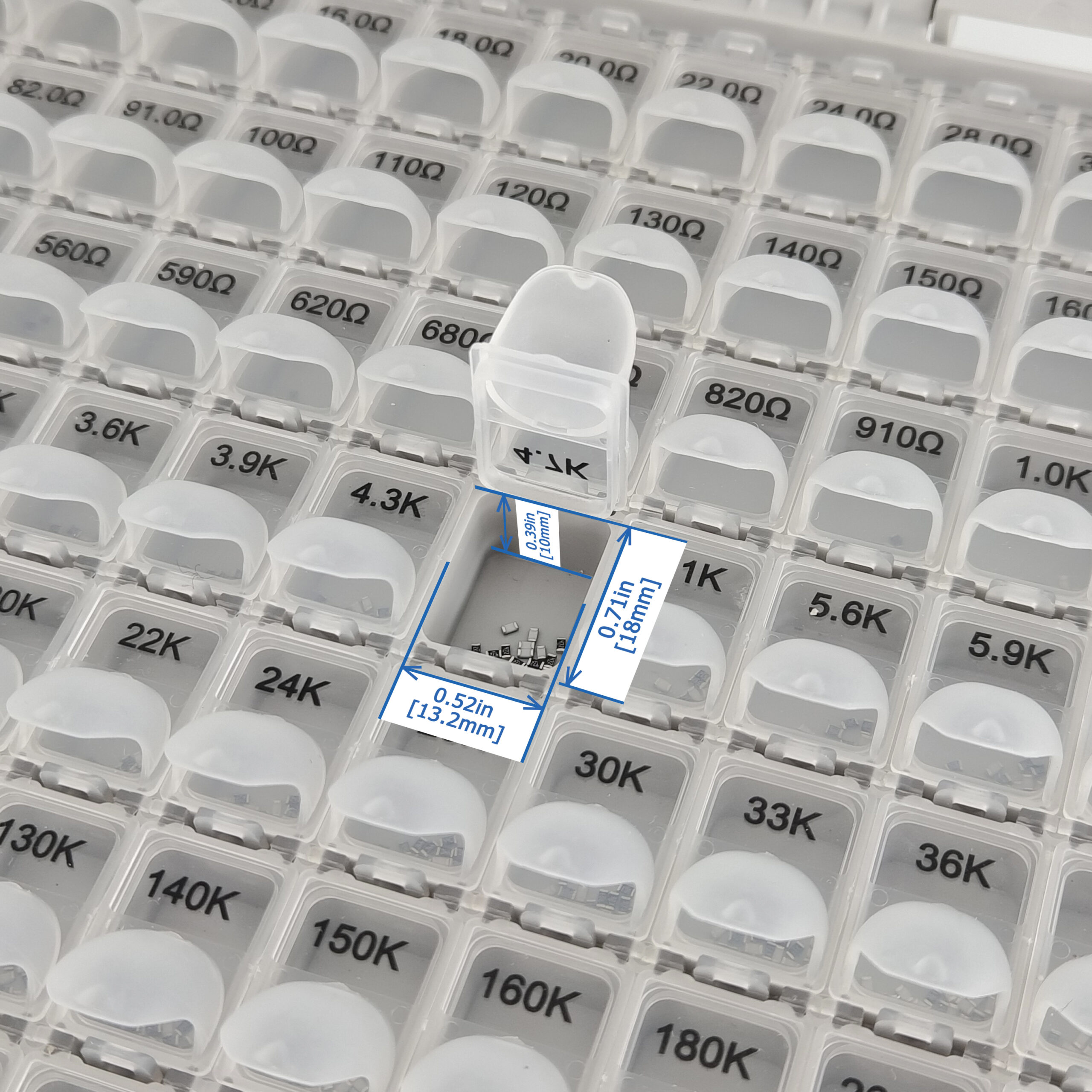

It ships in our patented Super SMD Component Enclosure with 200 individually lidded and labeled bins, which keeps the set organized on a workbench, on a shelf, or in transit to another site.
Specifications
| Resistor Size | 0201 |
| Number of Values | 169 |
| Resistance Range | 0Ω to 10MΩ, 0Ω jumper < 0.05Ω |
| Tolerance | 1% |
| Power Rating | 1/20W |
| Max. Working Voltage | 25V |
| Max. Overload Voltage | 50V |
| Dielectric Withstanding Voltage | 50V |
| Operating Temperature | −55°C to 125°C |
| Temperature Coefficient | ±100 to ±200ppm/°C |
| Pieces per Value | 50, 100, 200, 500, 1000 |
| Enclosure | 200-bin Super SMD Component Enclosure™ |
Ordering Options
| R02B169V50 | 50 pieces per value |
| R02B169V100 | 100 pieces per value |
| R02B169V200 | 200 pieces per value |
| R02B169V500 | 500 pieces per value |
| R02B169V1000 | 1000 pieces per value |
Applications
Typical uses include circuit development, prototyping, troubleshooting, board rework, and keeping an engineering or repair bench stocked with a full range of values.
| Weight | 8 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Package Size |
