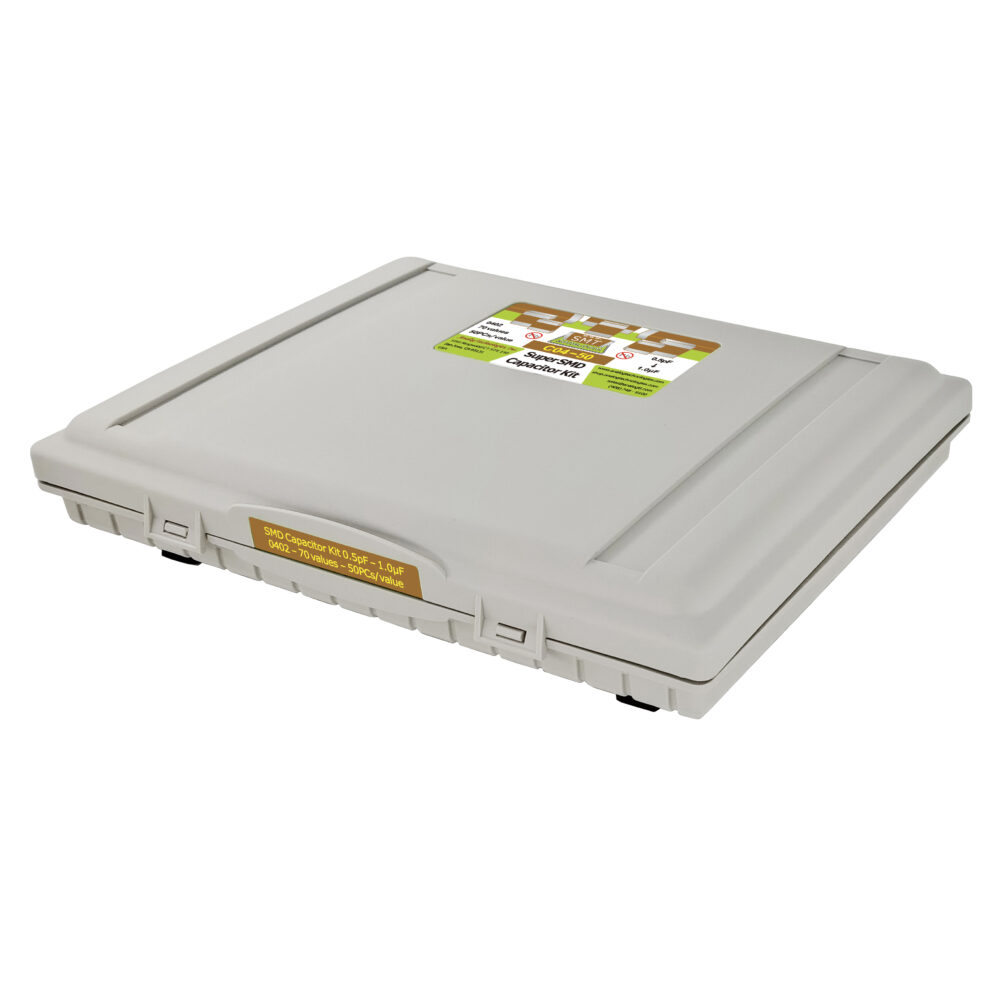

C04 0402 Classic Capacitor Kit 70 Values
Price range: $129.00 through $299.00
C04 is a 0402 Classic SMD capacitor kit with 70 values from 0.5pF to 1.0uF, ±0.25pF or ±5% to ±10%, pre-sorted into our snap-lock Super SMT Component Enclosure™ with 128 individually lidded compartments labeled with capacitance, material, voltage, and tolerance.
Quantity options:
C04-50 – 50 pieces per value
C04-100 – 100 pieces per value
C04-200 – 200 pieces per value
C04-500 – 500 pieces per value
Product Overview

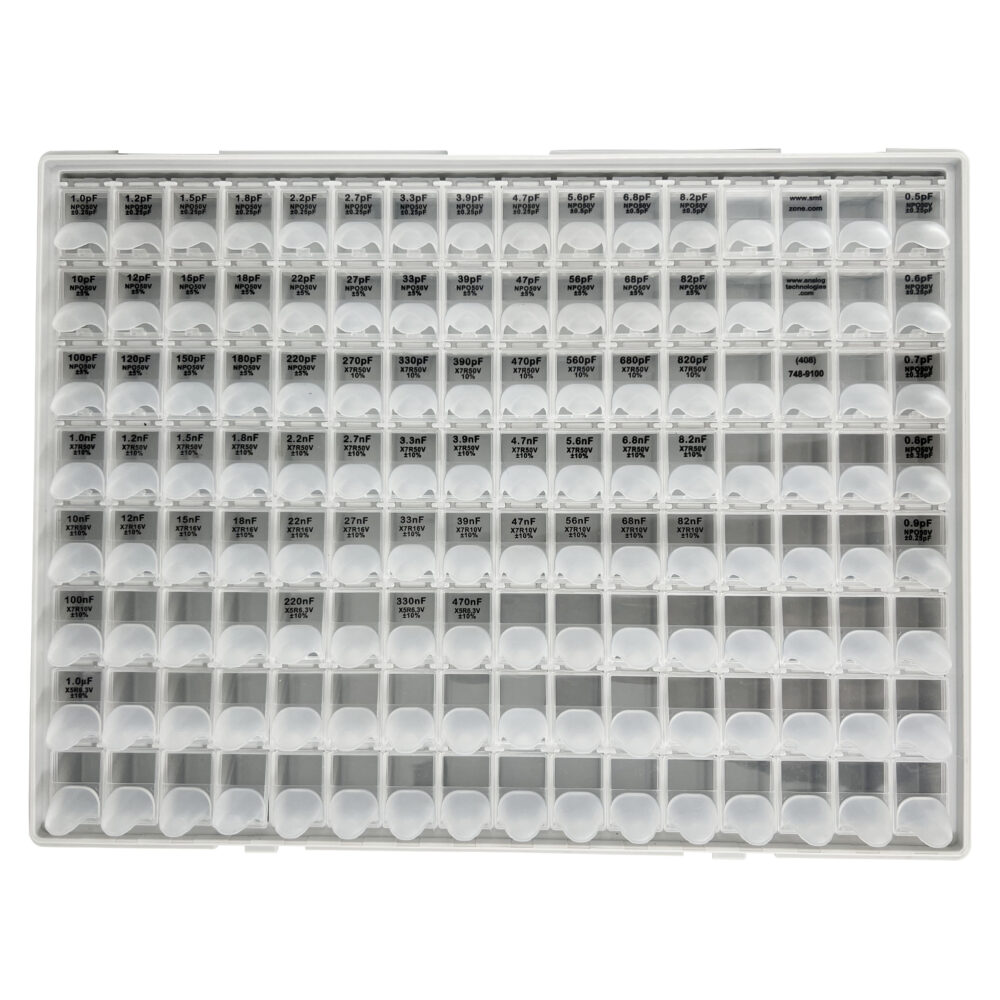

The C04 is a 0402 Classic SMD capacitor kit holding 70 capacitance values from 0.5pF to 1.0uF. Every capacitor is pre-sorted into its own lidded bin, with capacitance, material, voltage, and tolerance marked on the lid, so locating a specific value takes seconds instead of a parts-drawer search.
Analog Technologies has been designing and building professional SMD capacitor kits for over 20 years. The C04 ships in our sturdy snap-lock Super SMD Component Enclosure, which carries 128 individually lidded compartments in the footprint of a sheet of letter-size paper. It sits on a workbench, stores on a shelf, or travels to another site without reorganizing the set.
Specifications
| Capacitor Size | 0402 |
| Number of Values | 70 |
| Capacitance Range | 0.5pF to 1.0uF |
| Tolerance | ±0.25pF, or ±5% to ±10% |
| Pieces per Value | 50, 100, 200, or 500 |
| Enclosure | Super SMD Component Enclosure™, 128 lidded bins |
| Bin Dimension | 22 × 15 × 16 (mm) |
| Enclosure Dimension | 280 × 216 × 45 (mm) |
Ordering Options
| C04-50 | 50 pieces per value |
| C04-100 | 100 pieces per value |
| C04-200 | 200 pieces per value |
| C04-500 | 500 pieces per value |
Applications
Typical uses include building prototypes, running experiments on new circuits, reworking printed circuit boards, and keeping a laboratory or repair bench stocked with a full range of values.
