CRF12 35V 1206 RF Capacitor Kit 35 Values
Price range: $129.00 through $519.00
CRF12-35V is a 1206 RF SMD capacitor kit with 35 values from 1.5pF to 1.0nF, ±0.25pF, ±0.5pF, or ±5%, pre-sorted into our snap-lock Super SMT Component Enclosure™ with 128 individually lidded compartments labeled with capacitance, material, voltage, and tolerance.
Quantity options:
CRF12-35V-50 – 50 pieces per value
CRF12-35V-100 – 100 pieces per value
CRF12-35V-200 – 200 pieces per value
CRF12-35V-500 – 500 pieces per value
Product Overview

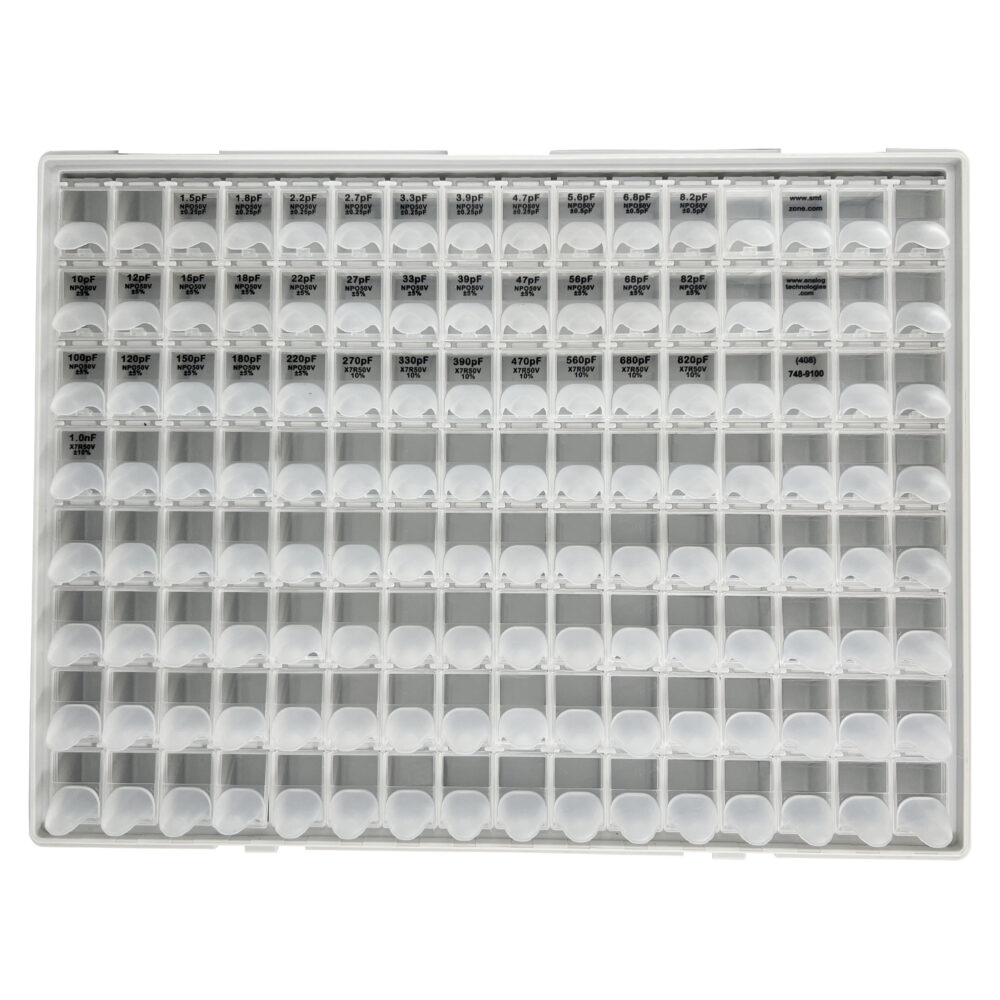

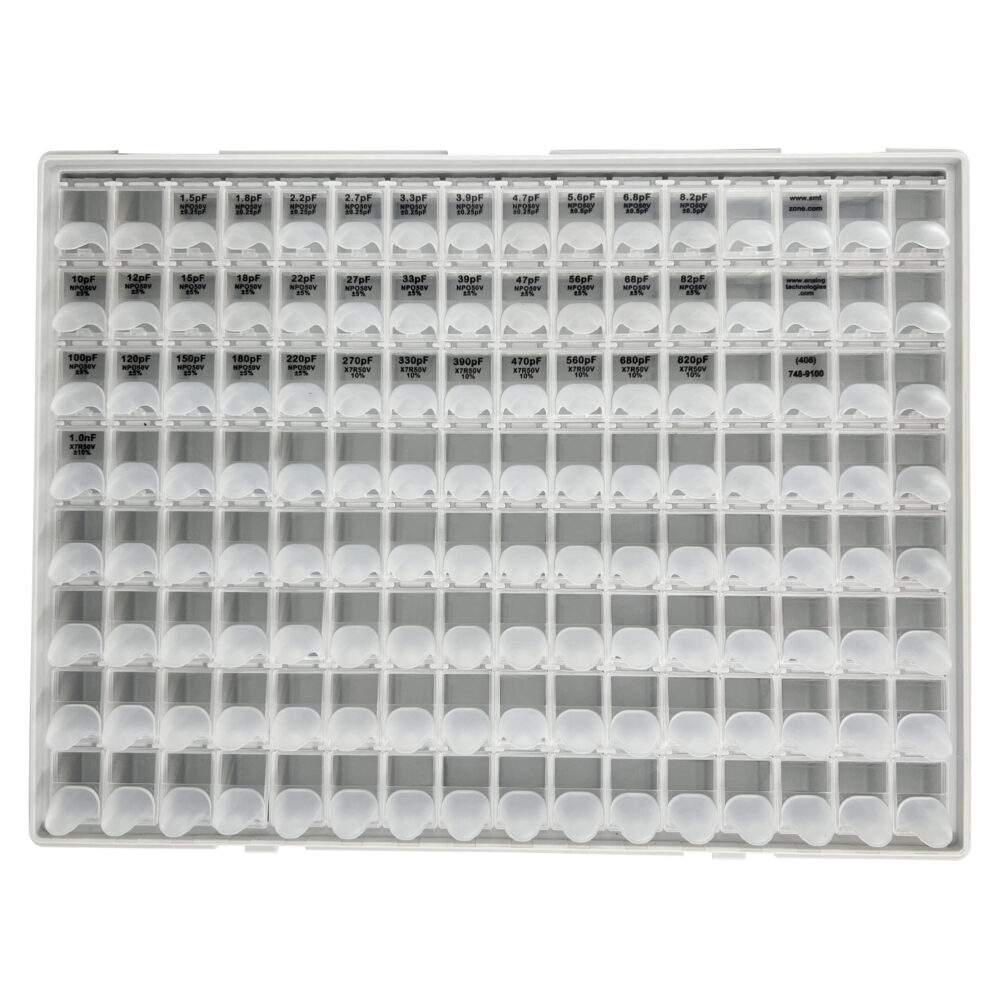

The CRF12-35V is a 1206 RF SMD capacitor kit holding 35 capacitance values from 1.5pF to 1.0nF. Every capacitor is pre-sorted into its own lidded bin, with capacitance, material, voltage, and tolerance marked on the lid, so locating a specific value takes seconds instead of a parts-drawer search.
Values in the CRF12-35V are selected for RF work, where a fraction of a picofarad shifts a matching network or a filter corner. Tolerances reach ±0.25pF, and the kit ships in our sturdy snap-lock Super SMD Component Enclosure with 128 individually lidded compartments.
Specifications
| Capacitor Size | 1206 |
| Number of Values | 35 |
| Capacitance Range | 1.5pF to 1.0nF |
| Tolerance | ±0.25pF, ±0.5pF, or ±5% |
| Pieces per Value | 50, 100, 200, or 500 |

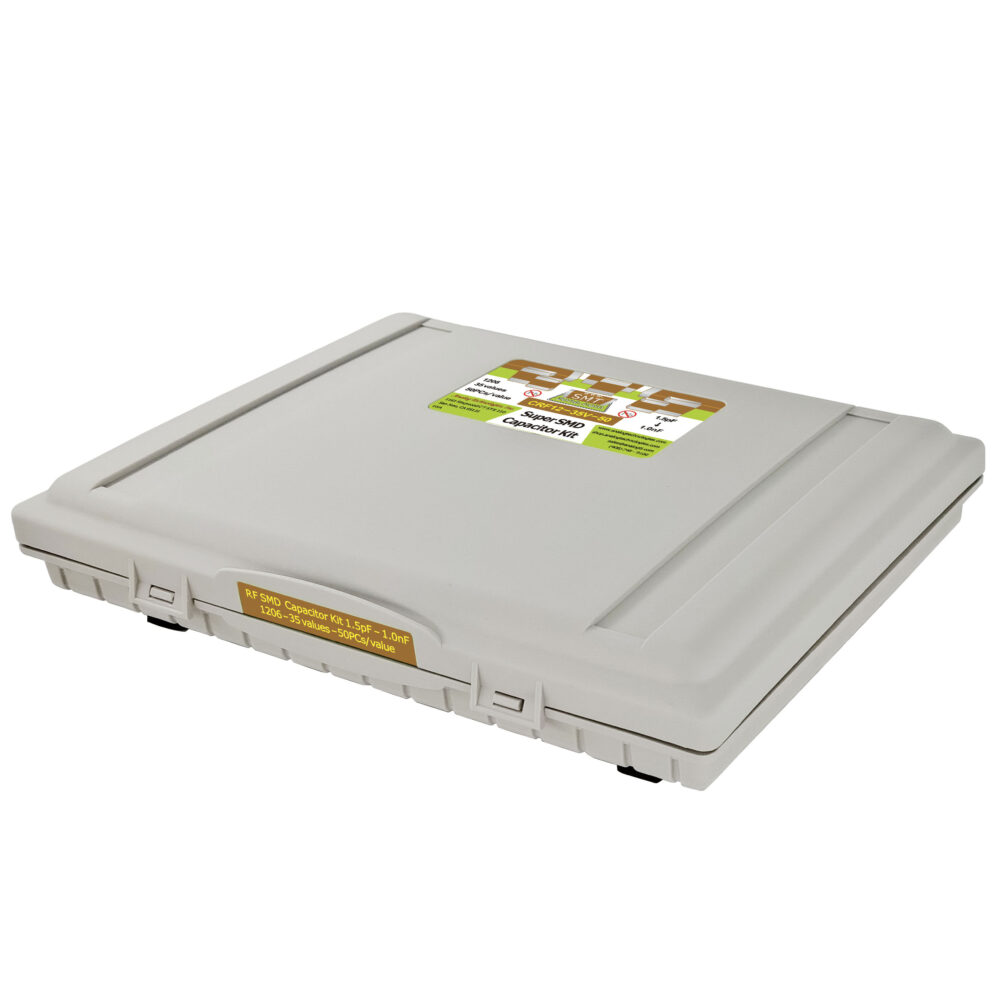

| Enclosure | Super SMD Component Enclosure™, 128 lidded bins |
| Bin Dimension | 22 × 15 × 16 (mm) |
| Enclosure Dimension | 280 × 216 × 45 (mm) |
Ordering Options
| CRF12-35V-50 | 50 pieces per value |
| CRF12-35V-100 | 100 pieces per value |
| CRF12-35V-200 | 200 pieces per value |
| CRF12-35V-500 | 500 pieces per value |
Applications
Typical uses include building prototypes, running experiments on new circuits, reworking printed circuit boards, and keeping a laboratory or repair bench stocked with a full range of values.
Only logged in customers who have purchased this product may leave a review.
Related products
-
R02B169 0201 1% Upgraded Series SMD Resistor Kit 169 Values
Price range: $159.00 through $1,419.00Select options This product has multiple variants. The options may be chosen on the product page -
R08 170V 0805 5% Resistor Kit 170 Values
Price range: $99.00 through $169.00Select options This product has multiple variants. The options may be chosen on the product page -

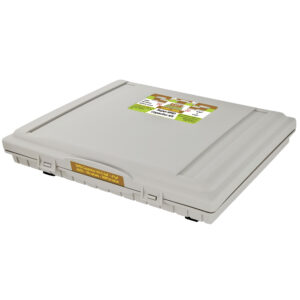

C06 0603 Classic Capacitor Kit 79 Values
Price range: $159.00 through $399.00Select options This product has multiple variants. The options may be chosen on the product page -

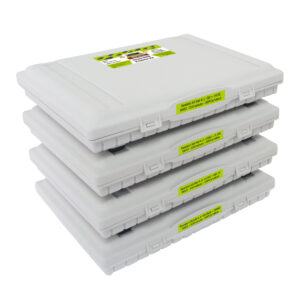

R06E96 0603 1% SMD Resistor Kit 510 Values
