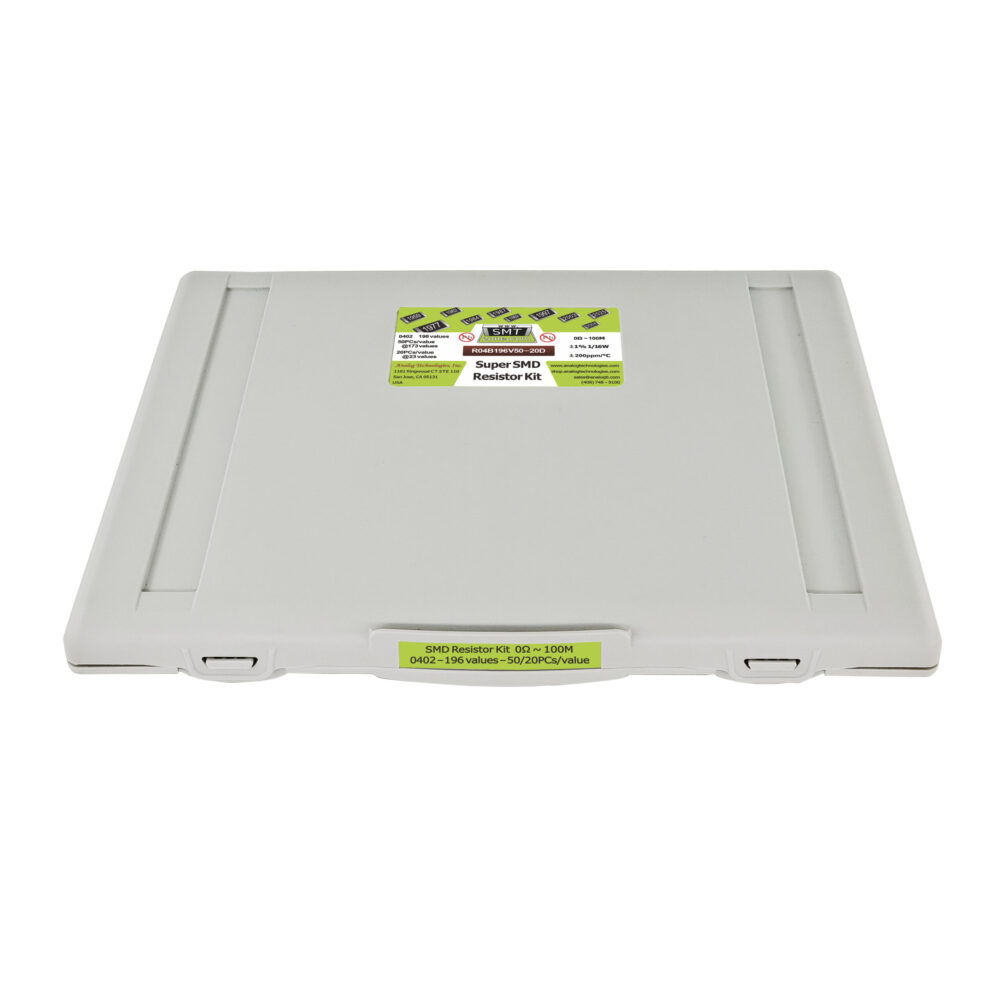

R04B196-50-20D 0402 1% Upgraded Series SMD resistor kit
R04B196 0402 1% Upgraded Series SMD Resistor Kit
SK200 storage bin size diagram showing compartment dimensions
  1. R04B196-50-20D 0402 1% Upgraded Series SMD resistor kit
  2. R04B196 0402 1% Upgraded Series SMD Resistor Kit
  3. SK200 storage bin size diagram showing compartment dimensions

R04B196 0402 1% Upgraded Series SMD Resistor Kit 196 Values

Price range: $159.00 through $509.00

R04B196 is a 0402 1% SMD resistor kit with 196 values in a 200-bin enclosure, stocking more pieces for commonly used values and fewer for rarely used ones.
Quantity options:
R04B196V50-20D – 50 pieces per commonly used value, 20 per rarely used value
R04B196V100-40D – 100 pieces per commonly used value, 40 per rarely used value
R04B196V200-50D – 200 pieces per commonly used value, 50 per rarely used value
R04B196V500-100D – 500 pieces per commonly used value, 100 per rarely used value

Datasheet
SKU: R04B196 Categories: , Tags: ,

Product Overview

The R04B196 is a 0402 1% SMD resistor kit holding 196 resistance values. Each value is pre-sorted into its own lidded bin with the value marked on the lid, so locating a specific resistor takes seconds instead of a parts-drawer search.
Quantities are matched to how often a value is actually used: commonly used values are stocked deeper than rarely used ones, so a kit lasts longer before a restock. It ships in a Super SMD Component Enclosure with 200 individually lidded and labeled bins.

Resistance Values

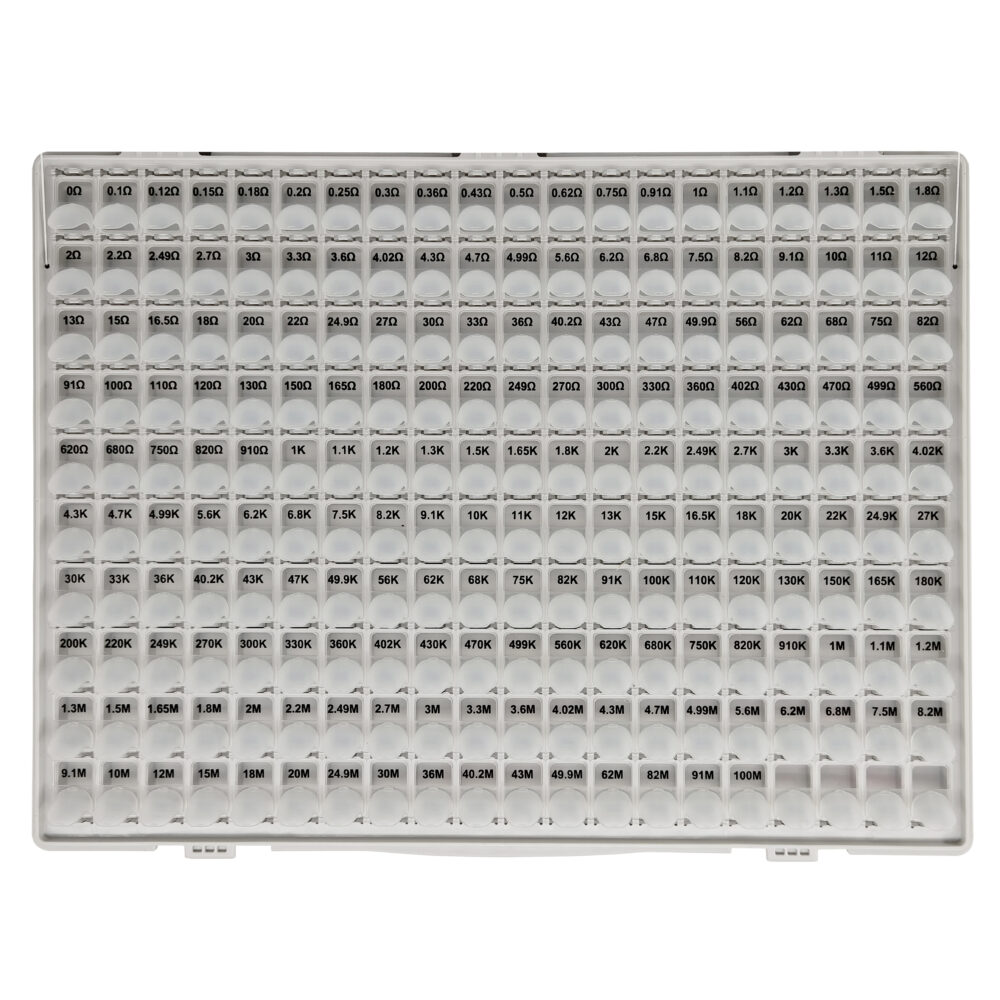

0402 resistors carry no marking code, so each value is identified only by the label on its bin lid. The table below follows the bin layout of the enclosure: 20 columns by 10 rows, with the last 4 bins left empty.
Values shown in blue are rarely used values. They are stocked in smaller quantities than the values in black.
0Ω 0.1Ω 0.12Ω 0.15Ω 0.18Ω 0.2Ω 0.25Ω 0.3Ω 0.36Ω 0.43Ω 0.5Ω 0.62Ω 0.75Ω 0.91Ω 1Ω 1.1Ω 1.2Ω 1.3Ω 1.5Ω 1.8Ω
2Ω 2.2Ω 2.49Ω 2.7Ω 3Ω 3.3Ω 3.6Ω 4.02Ω 4.3Ω 4.7Ω 4.99Ω 5.6Ω 6.2Ω 6.8Ω 7.5Ω 8.2Ω 9.1Ω 10Ω 11Ω 12Ω
13Ω 15Ω 16.5Ω 18Ω 20Ω 22Ω 24.9Ω 27Ω 30Ω 33Ω 36Ω 40.2Ω 43Ω 47Ω 49.9Ω 56Ω 62Ω 68Ω 75Ω 82Ω
91Ω 100Ω 110Ω 120Ω 130Ω 150Ω 165Ω 180Ω 200Ω 220Ω 249Ω 270Ω 300Ω 330Ω 360Ω 402Ω 430Ω 470Ω 499Ω 560Ω
620Ω 680Ω 750Ω 820Ω 910Ω 1K 1.1K 1.2K 1.3K 1.5K 1.65K 1.8K 2K 2.2K 2.49K 2.7K 3K 3.3K 3.6K 4.02K
4.3K 4.7K 4.99K 5.6K 6.2K 6.8K 7.5K 8.2K 9.1K 10K 11K 12K 13K 15K 16.5K 18K 20K 22K 24.9K 27K
30K 33K 36K 40.2K 43K 47K 49.9K 56K 62K 68K 75K 82K 91K 100K 110K 120K 130K 150K 165K 180K
200K 220K 249K 270K 300K 330K 360K 402K 430K 470K 499K 560K 620K 680K 750K 820K 910K 1M 1.1M 1.2M
1.3M 1.5M 1.65M 1.8M 2M 2.2M 2.49M 2.7M 3M 3.3M 3.6M 4.02M 4.3M 4.7M 4.99M 5.6M 6.2M 6.8M 7.5M 8.2M
9.1M 10M 12M 15M 18M 20M 24.9M 30M 36M 40.2M 43M 49.9M 62M 82M 91M 100M

Specifications

Resistor Size 0402
Number of Values 196
Resistance Range 0Ω to 100MΩ, 0Ω jumper < 0.05Ω
Tolerance 1%
Power Rating 1/16W
Max. Working Voltage 50V
Max. Overload Voltage 100V
Dielectric Withstanding Voltage 100V
Operating Temperature −55°C to 155°C
Temperature Coefficient ±100 to ±200ppm/°C
Pieces per Value 50, 100, 200, 500
Enclosure 200-bin Super SMD Component Enclosure™

Ordering Options

R04B196V50-20D 50 pieces per commonly used value, 20 per rarely used value
R04B196V100-40D 100 pieces per commonly used value, 40 per rarely used value
R04B196V200-50D 200 pieces per commonly used value, 50 per rarely used value
R04B196V500-100D 500 pieces per commonly used value, 100 per rarely used value

Applications

Typical uses include circuit development, prototyping, troubleshooting, board rework, and keeping an engineering or repair bench stocked with a full range of values.
Weight 8 lbs
Dimensions 14 × 11 × 4 in
Package Size
