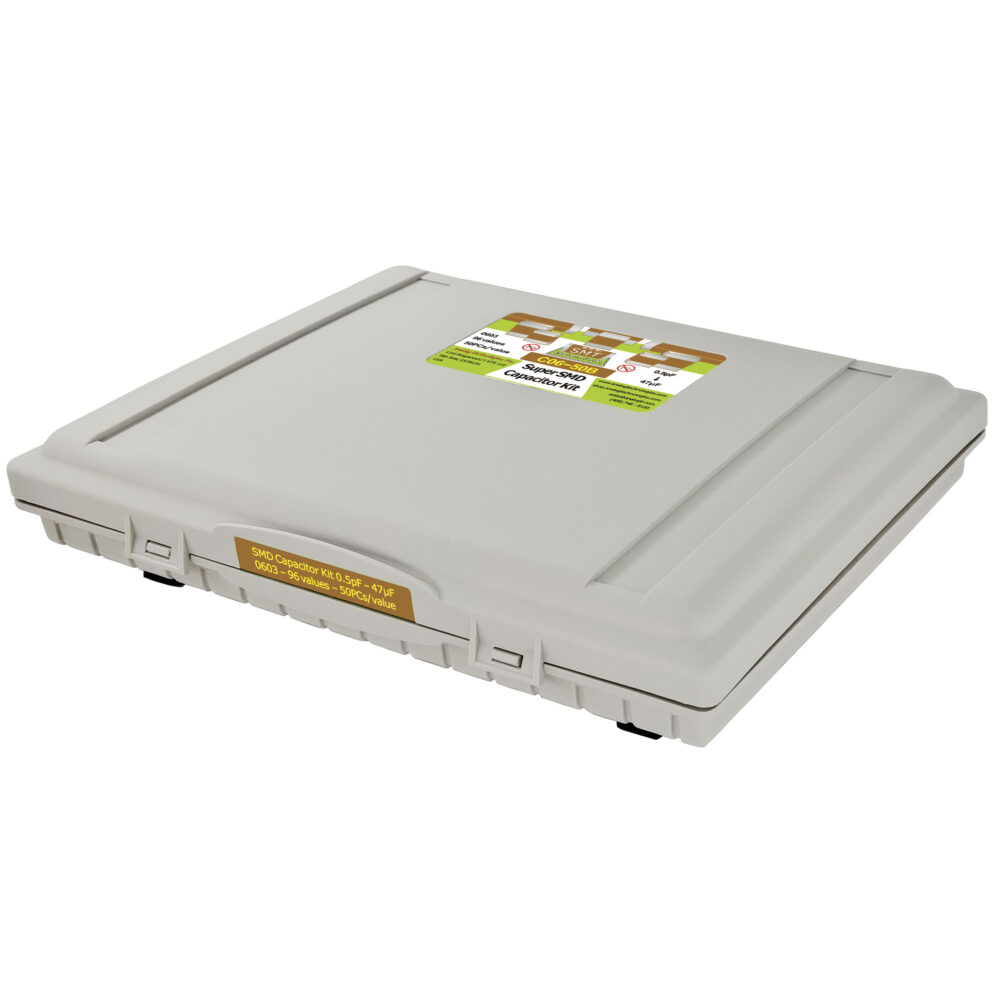

C06B 0603 Upgraded Classic Capacitor Kit 96 Values
Price range: $229.00 through $1,059.00
C06B is a 0603 Upgraded Classic SMD capacitor kit with 96 values from 0.5pF to 47uF, ±0.25pF or ±5% to ±20%, pre-sorted into our snap-lock Super SMD Enclosure with 128 individually lidded and labeled bins showing capacitance, material, voltage, and tolerance.
Quantity options:
C06-50B – 50 pieces per value
C06-100B – 100 pieces per value
C06-200B – 200 pieces per value
C06-500B – 500 pieces per value
Product Overview

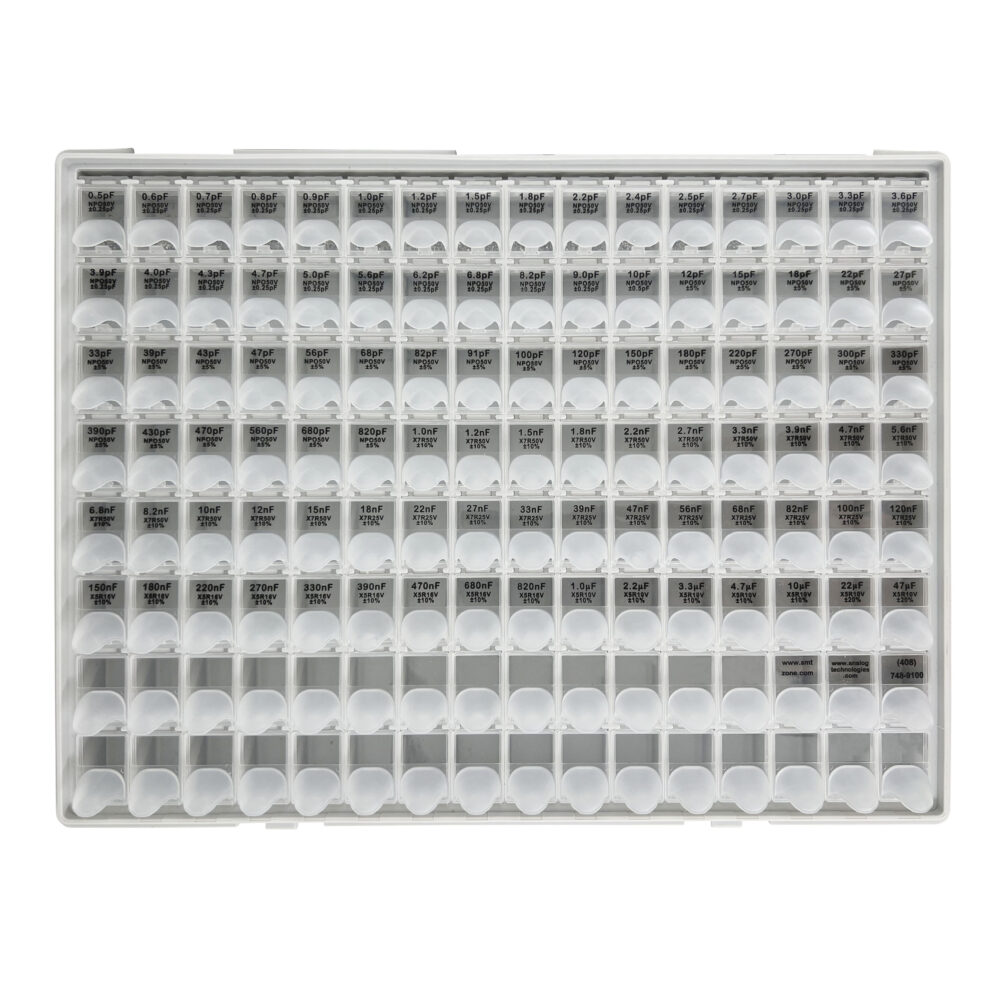

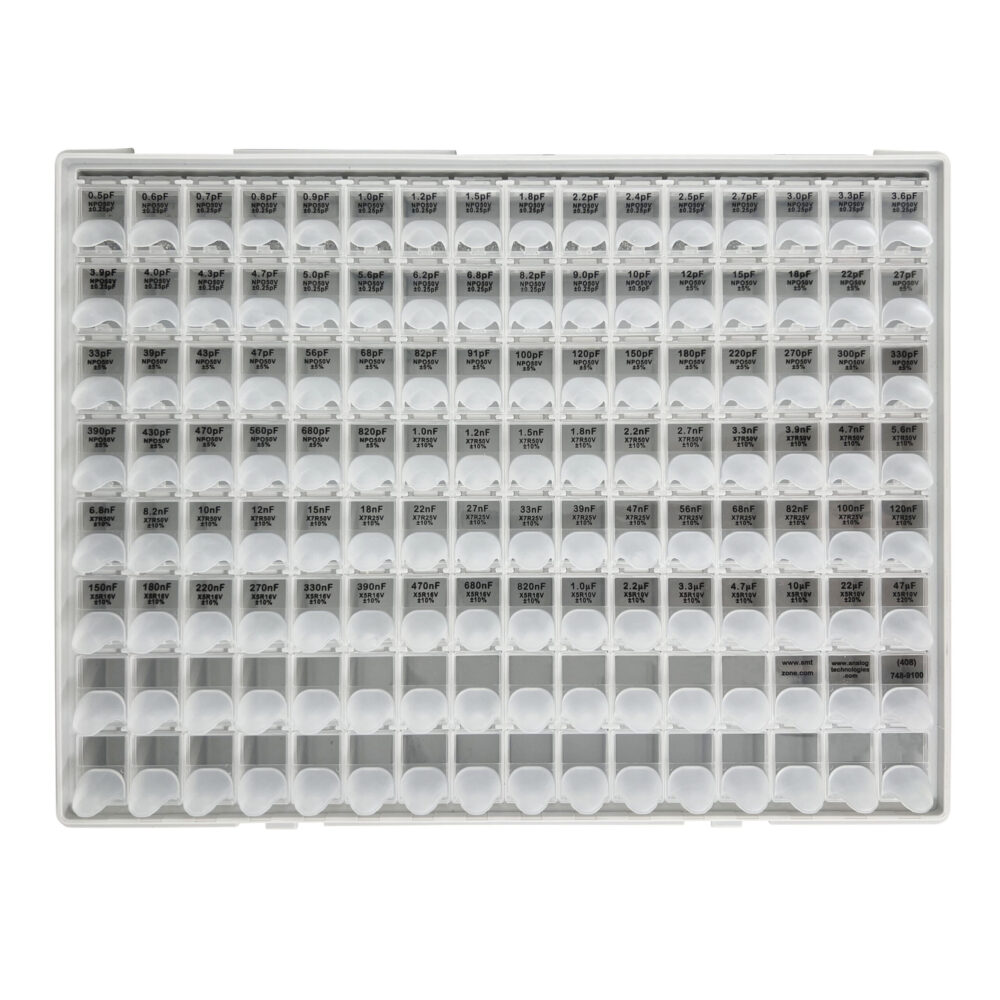

The C06B is a 0603 Upgraded Classic SMD capacitor kit holding 96 capacitance values from 0.5pF to 47uF. Every capacitor is pre-sorted into its own lidded bin, with capacitance, material, voltage, and tolerance marked on the lid, so locating a specific value takes seconds instead of a parts-drawer search.
The C06B belongs to the newer generation of Analog Technologies capacitor kits, introduced in 2023. Compared with the earlier Classic series in the same 0603 size, it carries more values per kit and covers a wider capacitance range. It ships in the same sturdy snap-lock Super SMD Component Enclosure, which carries 128 individually lidded compartments in the footprint of a sheet of letter-size paper.
Specifications
| Capacitor Size | 0603 |
| Number of Values | 96 |
| Capacitance Range | 0.5pF to 47uF |
| Tolerance | ±0.25pF, or ±5% to ±20% |
| Pieces per Value | 50, 100, 200, or 500 |
| Enclosure | Super SMD Component Enclosure™, 128 lidded bins |
| Bin Dimension | 22 × 15 × 16 (mm) |
| Enclosure Dimension | 280 × 216 × 45 (mm) |
Ordering Options
| C06-50B | 50 pieces per value |
| C06-100B | 100 pieces per value |
| C06-200B | 200 pieces per value |
| C06-500B | 500 pieces per value |
Applications
Typical uses include building prototypes, running experiments on new circuits, reworking printed circuit boards, and keeping a laboratory or repair bench stocked with a full range of values.
| Weight | 2 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Package Size | |
| Series |
