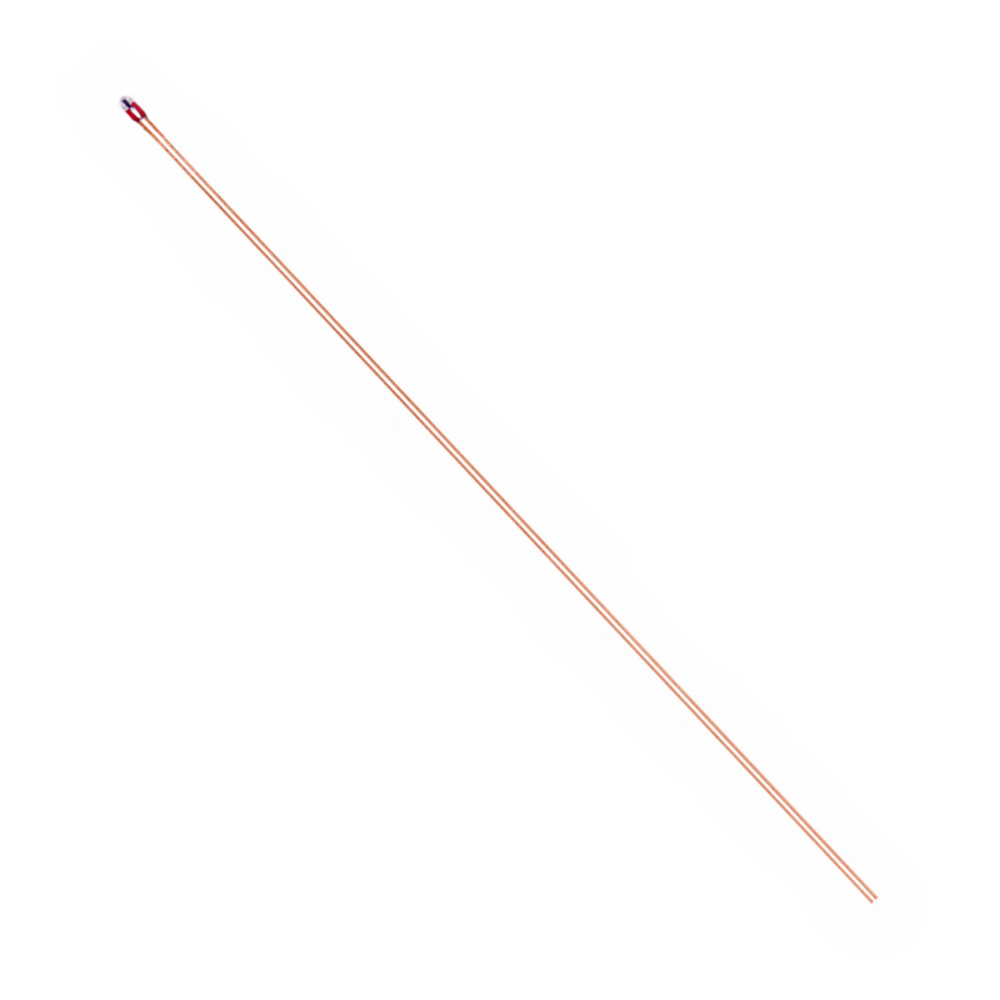

ATH10KR55B3950K 10KΩ 1% 3950K NTC Thermistor (Bare Bead Ø0.55mm, Bare Leads)

ATH10KR55B3950K 10KΩ 1% 3950K NTC Thermistor (Bare Bead Ø0.55mm, Bare Leads)

$9.90

NTC Thermistor (Negative Temperature Coefficient)
R25: 10KΩ
Tolerance: ±1%
B-Value: 3950K (25/50)
Operating Temp: -40°C ~ +250°C
Dissipation Factor: 0.25mW/C
Package: Bare Bead
Lead Type: Bare leads
Dimensions: Bead: Ø0.55 ± 0.1mm × L1.20mm

Datasheet

Available on backorder

SKU: ATH10KR55B3950K Category: Tags: , ,

Product Overview

ATH10KR55B3950K is a 10KΩ ±1% NTC thermistor (B-value 3950K @25/50) built in a bare bead package with bare tinned leads, rated for -40°C ~ +250°C operation.
Its compact bead gives fast thermal response and tight coupling to the sensed surface. Ideal for precision temperature sensing, measurement and compensation in laser diodes, optical modules, CCD/IR cameras and medical or industrial instruments; pairs with ATI TEC modules and temperature controllers.

Specifications

Resistance (R25) 10KΩ
Tolerance ±1%
B-Value 3950K @25/50
Operating Temp. Range -40°C ~ +250°C
Dissipation Factor 0.25mW/C
Time Constant (Air) 1s
Insulation Resistance >100MΩ
Package Type Bare Bead
Lead Type Bare leads
Lead Ø 0.13mm
Lead Length 65 ± 5mm
Dimensions Bead: Ø0.55 ± 0.1mm × L1.20mm
Weight 0.04 lbs
