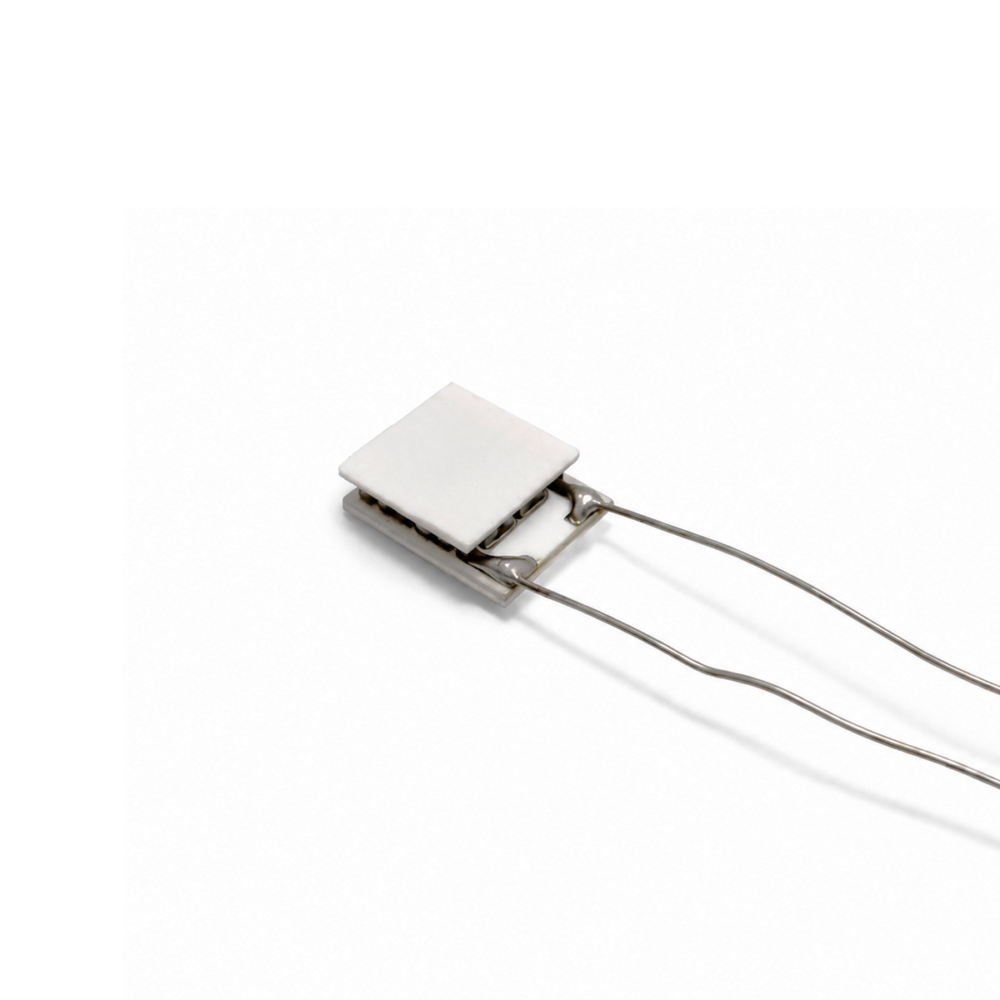

ATE1-18-1R5A 2.2W 1.53A Thermoelectric Cooler (TEC) Module (6×6mm)
$37.70
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 2.2 W
Imax: 1.53 A
Vmax: 2.3 V
ΔTmax: 71°C
Dimensions: 6 × 6 × 2 mm
Sealing: Non-sealed
5 in stock (can be backordered)
Product Overview
ATE1-18-1R5A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 1.53 A, 2.2 W Qmax and 71°C ΔTmax in a 6 × 6 mm, 18-couple package (2.3 V Vmax). It has a trapezoidal footprint: the cold-side length (Lc) is 6 mm while the hot-side length (Lh) is 7.6 mm.
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 2.2 W |
| Imax | 1.53 A |
| Vmax | 2.3 V |
| ΔTmax | 71°C |
| Lc | 6 mm |
| Lh | 7.6 mm |
| W | 6 mm |
| H | 2 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
