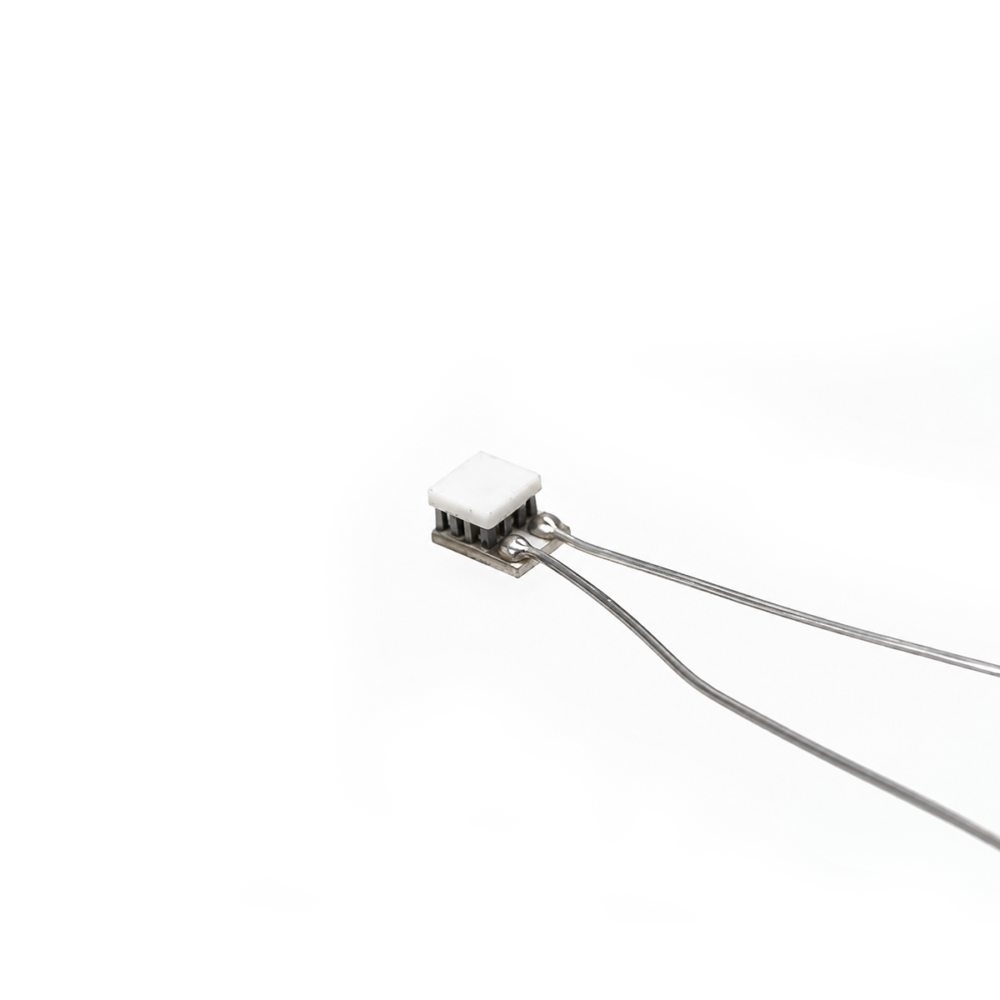

ATE1-08-R4A 0.3W 0.44A Thermoelectric Cooler (TEC) Module (2.5×2.5mm)
$27.55
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 0.3 W
Imax: 0.44 A
Vmax: 1 V
ΔTmax: 71.5°C
Dimensions: 2.5 × 2.5 × 2.05 mm
Sealing: Non-sealed
4 in stock (can be backordered)
Product Overview
ATE1-08-R4A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 0.44 A, 0.3 W Qmax and 71.5°C ΔTmax in a 2.5 × 2.5 mm, 8-couple package (1 V Vmax). It has a trapezoidal footprint: the cold-side length (Lc) is 2.5 mm while the hot-side length (Lh) is 3.5 mm.
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 0.3 W |
| Imax | 0.44 A |
| Vmax | 1 V |
| ΔTmax | 71.5°C |
| Lc | 2.5 mm |
| Lh | 3.5 mm |
| W | 2.5 mm |
| H | 2.05 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
