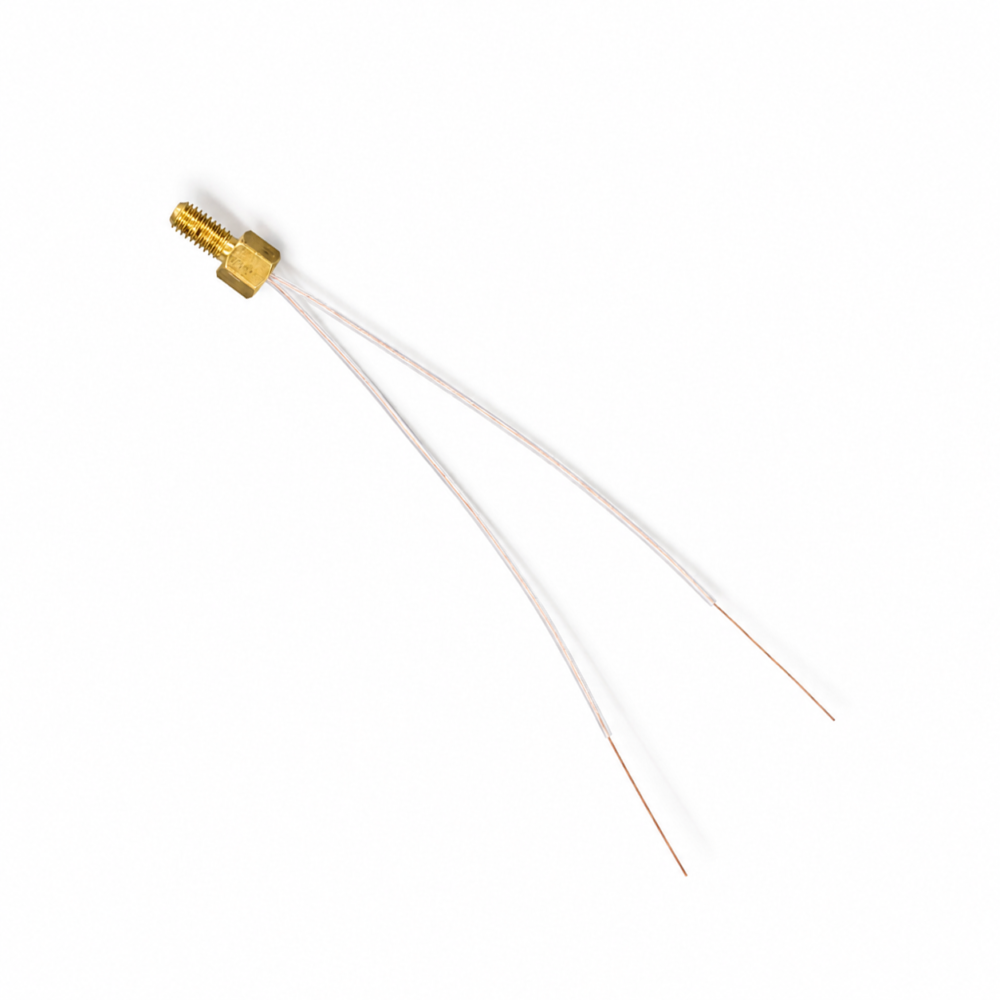

ATH10KHN4 10KΩ 1% 3950K NTC Thermistor (Hex Nut, Bare Leads)
$3.50
NTC Thermistor (Negative Temperature Coefficient)
R25: 10KΩ
Tolerance: ±1%
B-Value: 3950K (25/50)
Operating Temp: -40°C ~ +270°C
Package: Hex Nut, M3 thread
Lead Type: Bare leads
Dimensions: M3 stud × 6mm + 4mm hex body
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $3.50 |
| 10 - 49 | $3.30 |
| 50 - 199 | $3.10 |
| 200 - 499 | $2.90 |
| 500 + | $2.70 |
Product Overview
ATH10KHN4 is a 10KΩ ±1% NTC thermistor (B-value 3950K @25/50) built into a brass hex-nut body with an M3 threaded stud, rated for -40°C ~ +270°C operation.
The threaded stud screws straight into a tapped hole in a fixture, manifold or housing, giving repeatable mounting depth and defined torque without a clamp or adhesive. The 4mm hex body is the shortest in the series, for tight installations. Ideal for precision temperature sensing, measurement and compensation in transformers, electric motors, fluid systems and industrial instruments; pairs with ATI TEC modules and temperature controllers.
Specifications
| Resistance (R25) | 10KΩ |
| Tolerance | ±1% |
| B-Value | 3950K @25/50 | 3990K @25/85 |
| R@25°C / R@50°C | 2.771 |
| R@25°C / R@85°C | 9.271 |
| Operating Temp. Range | -40°C ~ +270°C |
| Time Constant (Air) | 37.8s |
| Time Constant (Water) | 1.22s |
| Insulation Resistance | 50MΩ |
| Package Type | Hex Nut |
| Thread | M3, 6mm long |
| Hex Body Length | 4mm |
| Encapsulation | Glass |
| Lead Type | Bare leads, copper-coated |
| Lead Ø | 0.2mm |
| Lead Length | 70 ± 1mm |
| Dimensions | M3 stud × 6mm + 4mm hex body |
| Weight | 0.04 lbs |
|---|
