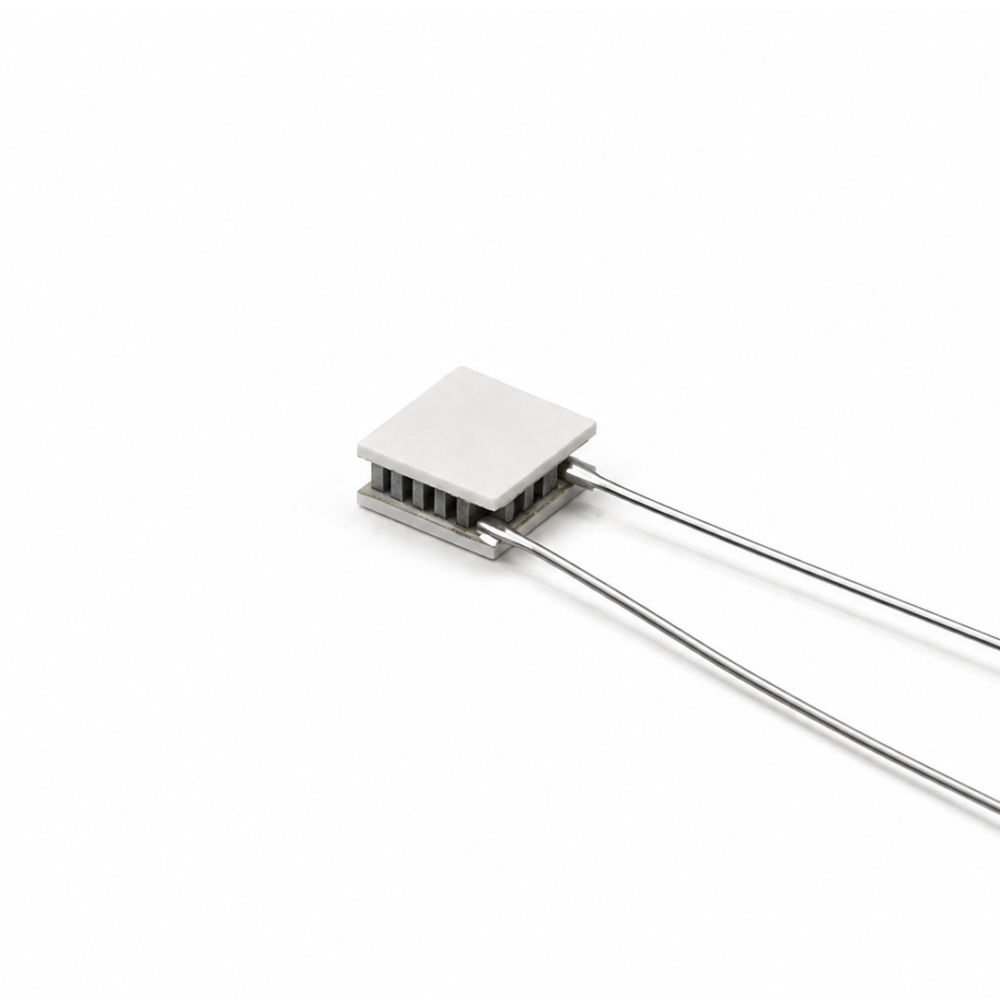

ATE1-17-R8A 1W 0.8A Thermoelectric Cooler (TEC) Module (6×6mm)
$34.60
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 1 W
Imax: 0.8 A
Vmax: 2.2 V
ΔTmax: 74.5°C
Dimensions: 6 × 6 × 3 mm
Sealing: Non-sealed
15 in stock (can be backordered)
Product Overview
ATE1-17-R8A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 0.8 A, 1 W Qmax and 74.5°C ΔTmax in a 6 × 6 mm, 17-couple package (2.2 V Vmax).
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 1 W |
| Imax | 0.8 A |
| Vmax | 2.2 V |
| ΔTmax | 74.5°C |
| Lc | 6 mm |
| W | 6 mm |
| H | 3 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
