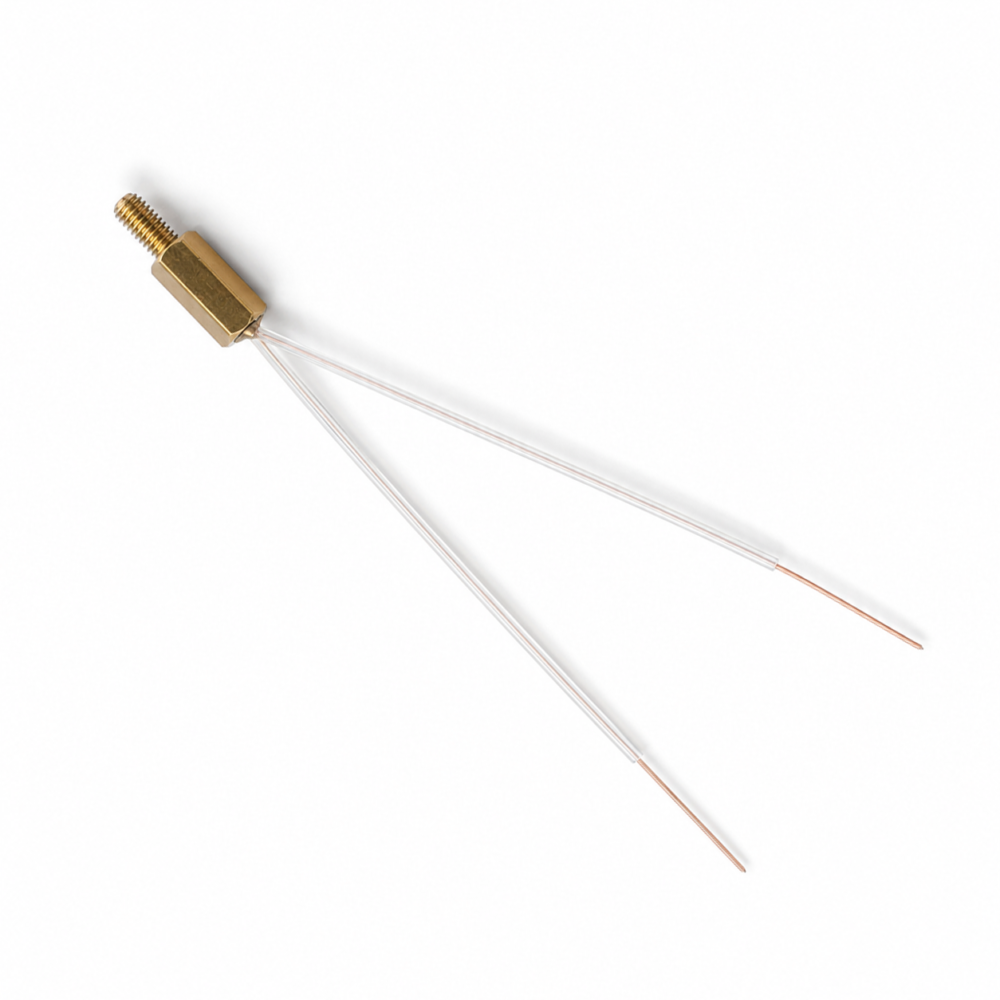

ATH10KHN10 10KΩ 1% 3950K NTC Thermistor (Hex Nut, Bare Leads)
$3.50
NTC Thermistor (Negative Temperature Coefficient)
R25: 10KΩ
Tolerance: ±1%
B-Value: 3950K (25/50)
Operating Temp: -40°C ~ +250°C
Package: Hex Nut
Lead Type: Bare leads
Dimensions: Hex Nut: L6mm+10mm, inner Ø3mm
10 in stock (can be backordered)
Product Overview
ATH10KHN10 is a 10KΩ ±1% NTC thermistor (B-value 3950K @25/50) built in a hex nut package with bare tinned leads, rated for -40°C ~ +250°C operation.
The threaded hex-nut body screws straight into a fixture or housing for repeatable mounting. Ideal for precision temperature sensing, measurement and compensation in laser diodes, optical modules, CCD/IR cameras and medical or industrial instruments; pairs with ATI TEC modules and temperature controllers.
Specifications
| Resistance (R25) | 10KΩ |
| Tolerance | ±1% |
| B-Value | 3950K @25/50 | 3990K @25/85 |
| Operating Temp. Range | -40°C ~ +250°C |
| Time Constant (Air) | 37.8s |
| Time Constant (Water) | 1.22s |
| Insulation Resistance | 50MΩ |
| Package Type | Hex Nut |
| Lead Type | Bare leads |
| Lead Ø | 0.2mm |
| Lead Length | 70 ± 1mm |
| Dimensions | Hex Nut: L6mm+10mm, inner Ø3mm |
| Weight | 0.04 lbs |
|---|
