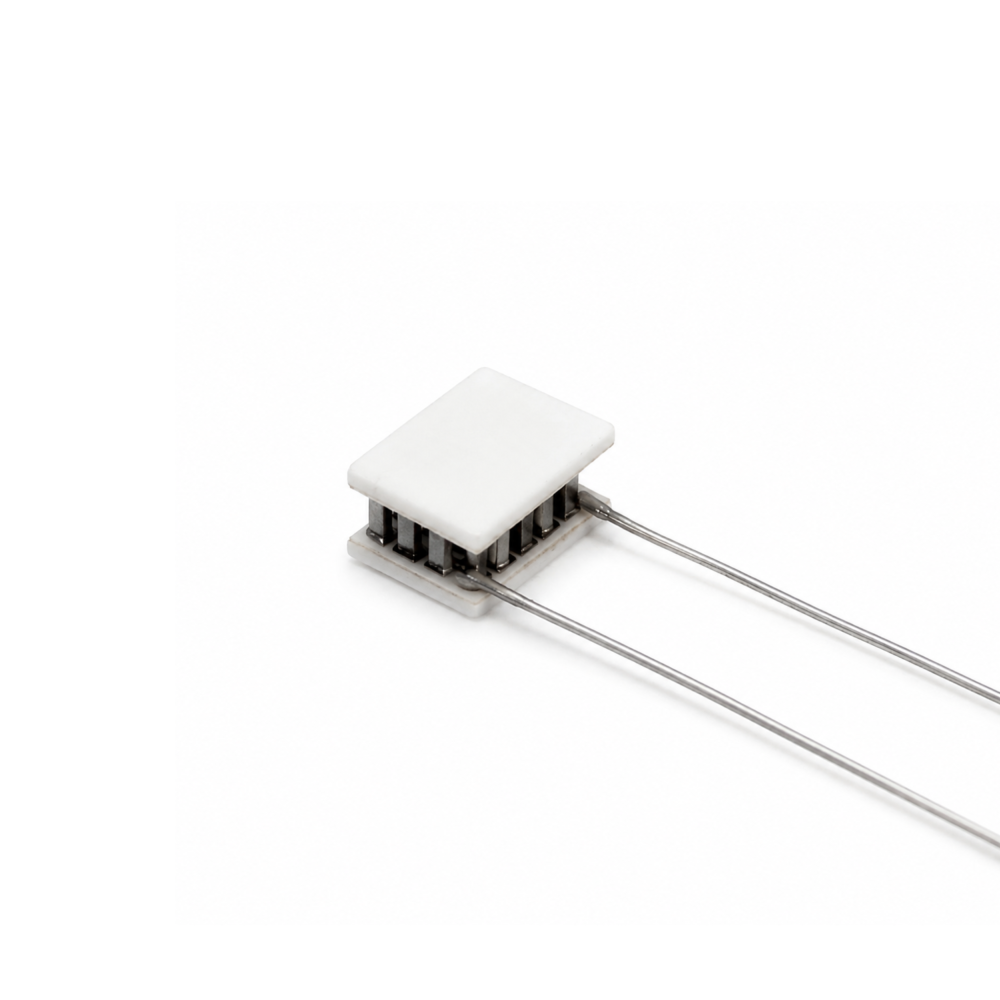

ATE1-11-R8A 0.7W 0.8A Thermoelectric Cooler (TEC) Module (4×6mm)
$31.84
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 0.7 W
Imax: 0.8 A
Vmax: 1.4 V
ΔTmax: 74.5°C
Dimensions: 4 × 6 × 3 mm
Sealing: Non-sealed
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 4 | $31.84 |
| 5 - 24 | $31.20 |
| 25 - 99 | $30.57 |
| 100 + | $29.93 |
Product Overview
ATE1-11-R8A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 0.8 A, 0.7 W Qmax and 74.5°C ΔTmax in a 4 × 6 mm, 11-couple package (1.4 V Vmax).
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 0.7 W |
| Imax | 0.8 A |
| Vmax | 1.4 V |
| ΔTmax | 74.5°C |
| Lc | 4 mm |
| W | 6 mm |
| H | 3 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
