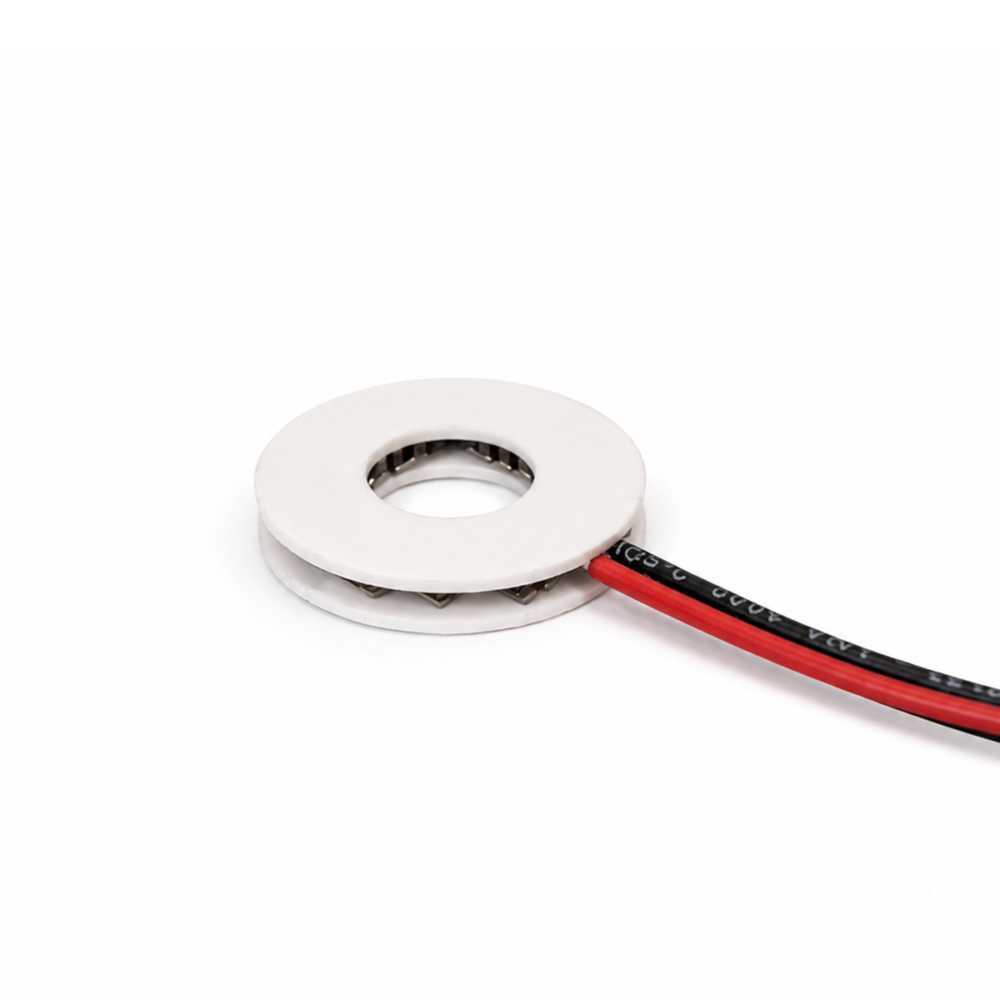

ATEC1-38-3.4A 11.3W 3.4A Circular Thermoelectric Cooler (TEC) Module (Ø24mm)
$52.30
Circular Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 11.3 W
Imax: 3.4 A
Vmax: 4.8 V
ΔTmax: 74.5°C
Dimensions: 24 × 10 × 3.6 mm
Sealing: Non-sealed
20 in stock (can be backordered)
Product Overview
ATEC1-38-3.4A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 3.4 A, 11.3 W Qmax and 74.5°C ΔTmax in a 24 × 10 mm, 38-couple package (4.8 V Vmax).
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of TO-can laser diodes, photodetectors and circular optical sub-assemblies; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 11.3 W |
| Imax | 3.4 A |
| Vmax | 4.8 V |
| ΔTmax | 74.5°C |
| Lc | 24 mm |
| W | 10 mm |
| H | 3.6 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
