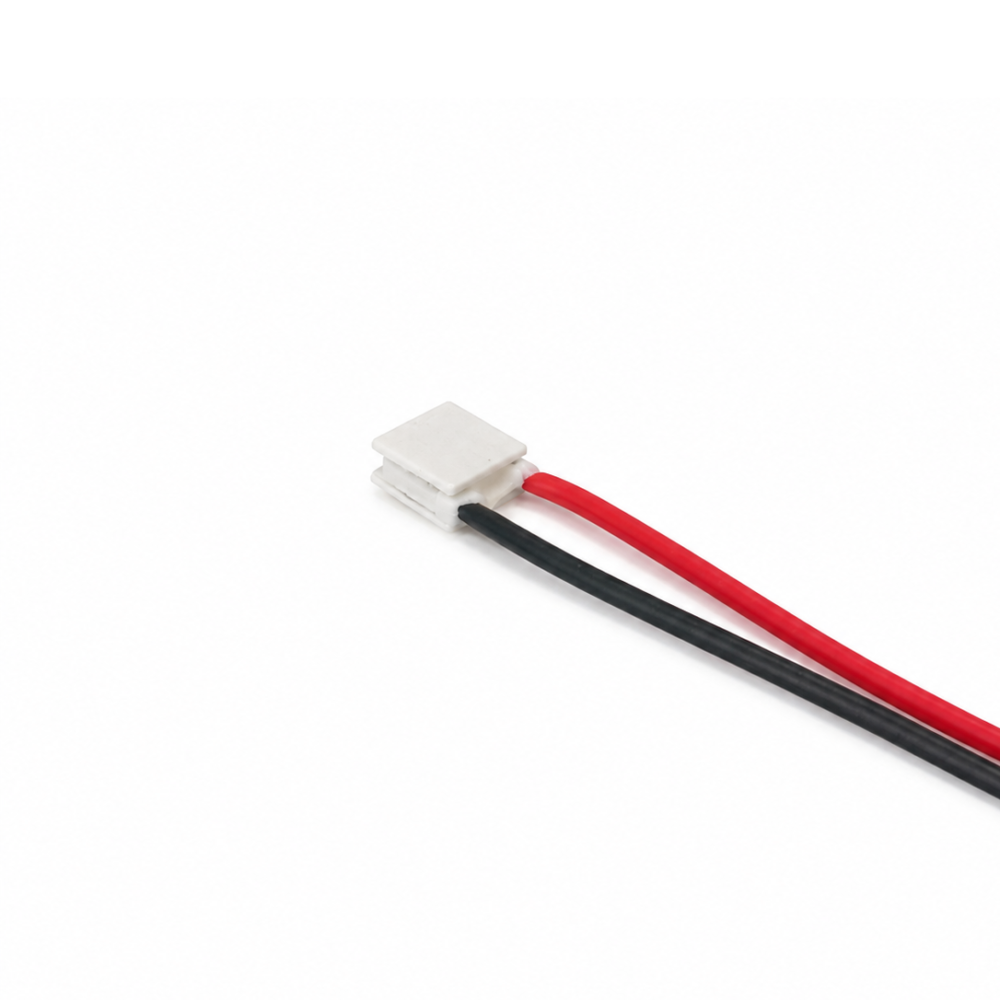

ATE1-07-1AS 0.6W 1A Thermoelectric Cooler (TEC) Module (8×8mm)
$11.45
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 0.6 W
Imax: 1 A
Vmax: 0.8 V
ΔTmax: 61.5°C
Dimensions: 8 × 8 × 5.18 mm
Sealing: Sealed
29 in stock (can be backordered)
Product Overview
ATE1-07-1AS is a sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 1 A, 0.6 W Qmax and 61.5°C ΔTmax in a 8 × 8 mm, 7-couple package (0.8 V Vmax).
Its edge-sealed construction blocks moisture for humid or condensing environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 0.6 W |
| Imax | 1 A |
| Vmax | 0.8 V |
| ΔTmax | 61.5°C |
| Lc | 8 mm |
| W | 8 mm |
| H | 5.18 mm |
| Construction / Temp. Range | Sealed, single-stage; -55°C to +85°C |
