ATE1-TCHE-127-3A 28W 3A Thermal Cycling High-Efficiency Thermoelectric Cooler (TEC) Module (29.7×29.7mm)
$25.00
Thermal Cycling High-Efficiency Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 28 W
Imax: 3 A
Vmax: 18.1 V
ΔTmax: 83°C
Dimensions: 29.7 × 29.7 × 3.8 mm
Sealing: Non-sealed
Available on backorder
Product Overview
ATE1-TCHE-127-3A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 3 A, 28 W Qmax and 83°C ΔTmax in a 29.7 × 29.7 mm, 127-couple package (18.1 V Vmax).
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of PCR thermal cyclers and high-duty-cycle bio-instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 28 W |
| Imax | 3 A |
| Vmax | 18.1 V |
| ΔTmax | 83°C |
| Lc | 29.7 mm |
| W | 29.7 mm |
| H | 3.8 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
Only logged in customers who have purchased this product may leave a review.
Related products
-

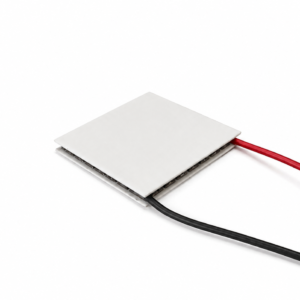

ATE1-127-3BH 25W 3A High-Temperature Thermoelectric Cooler (TEC) Module (40×40mm)
