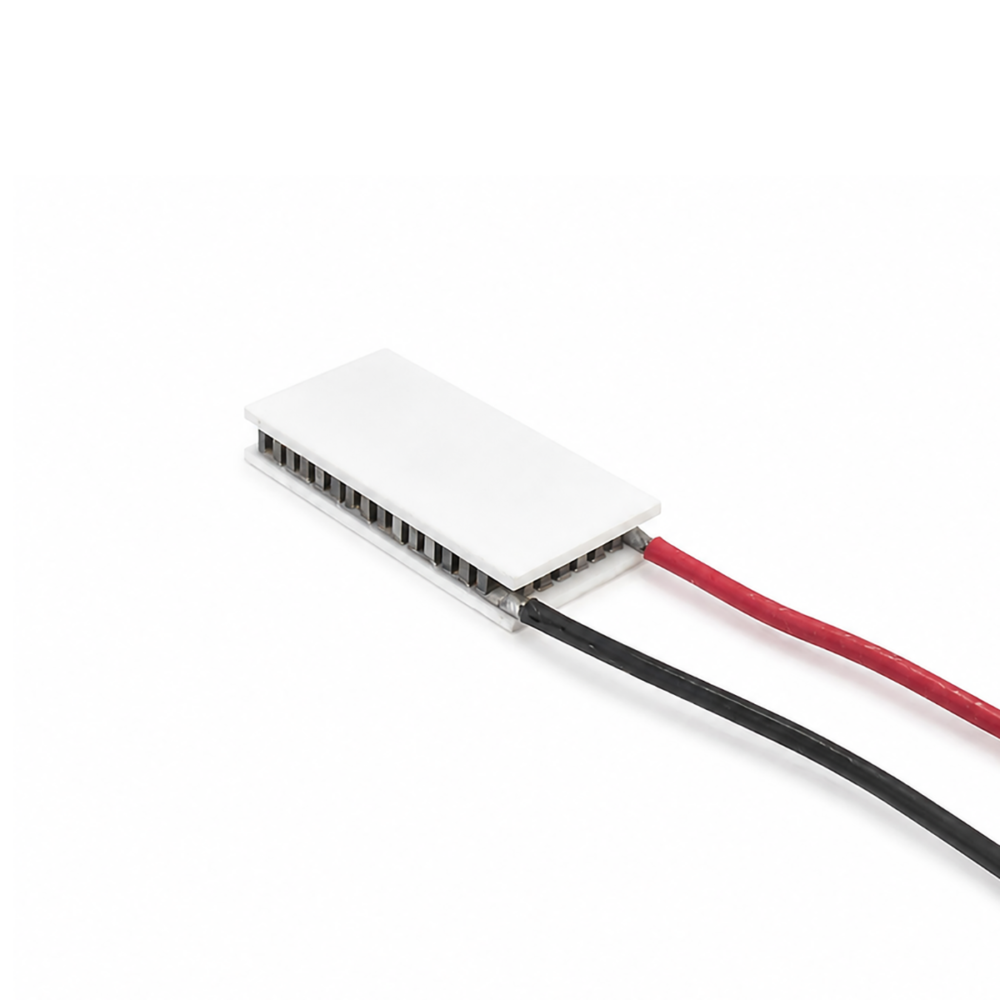

ATE1-63-1.9A 10.4W 1.9A Thermoelectric Cooler (TEC) Module (25×12mm)
$36.64
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 10.4 W
Imax: 1.9 A
Vmax: 8 V
ΔTmax: 74.5°C
Dimensions: 25 × 12 × 3.8 mm
Sealing: Non-sealed
2 in stock (can be backordered)
Product Overview
ATE1-63-1.9A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 1.9 A, 10.4 W Qmax and 74.5°C ΔTmax in a 25 × 12 mm, 63-couple package (8 V Vmax).
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 10.4 W |
| Imax | 1.9 A |
| Vmax | 8 V |
| ΔTmax | 74.5°C |
| Lc | 25 mm |
| W | 12 mm |
| H | 3.8 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
