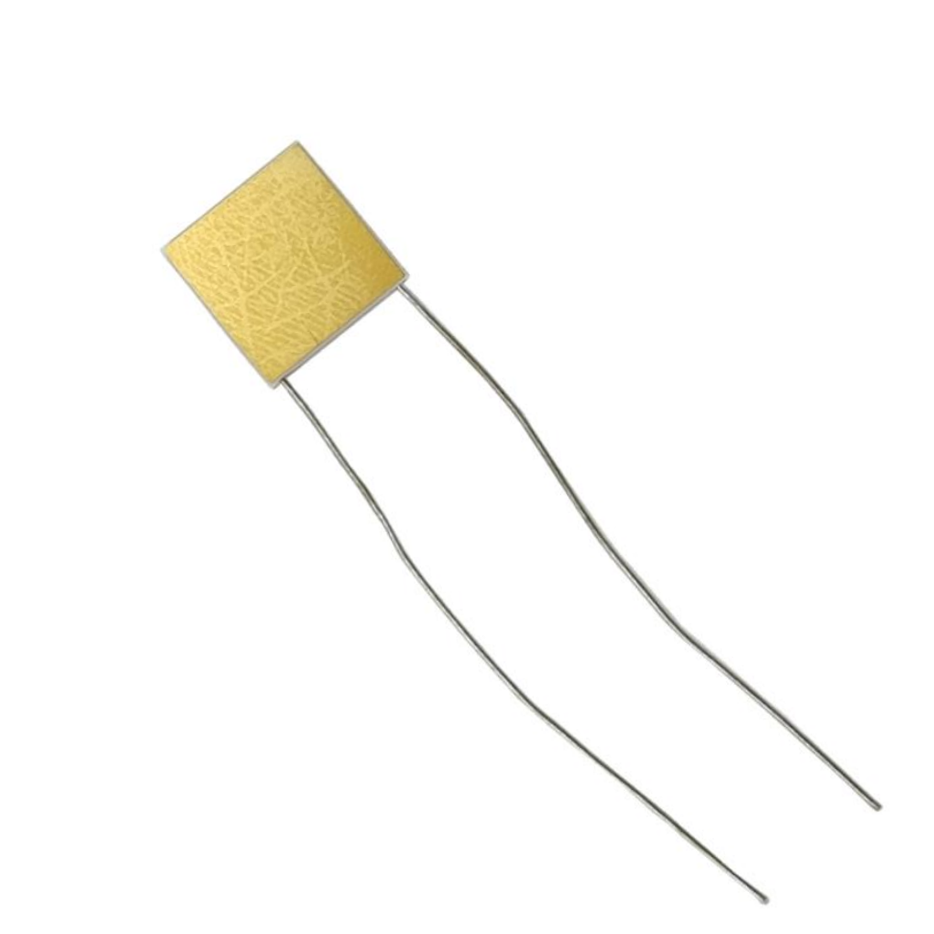

ATE1-31-2.4A-A 5.4W 2.4A Thermoelectric Cooler (TEC) Module (15×15mm)
$38.99
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 5.4 W
Imax: 2.4 A
Vmax: 4.7 V
ΔTmax: 80°C
Dimensions: 15 × 15 × 4.04 mm
Sealing: Sealed
Available on backorder
Product Overview
ATE1-31-2.4A-A is a sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 2.4 A, 5.4 W Qmax and 80°C ΔTmax in a 15 × 15 mm, 31-couple package (4.7 V Vmax).
Its edge-sealed construction blocks moisture for humid or condensing environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 5.4 W |
| Imax | 2.4 A |
| Vmax | 4.7 V |
| ΔTmax | 80°C |
| Lc | 15 mm |
| W | 15 mm |
| H | 4.04 mm |
| Construction / Temp. Range | Sealed, single-stage; -55°C to +85°C |
