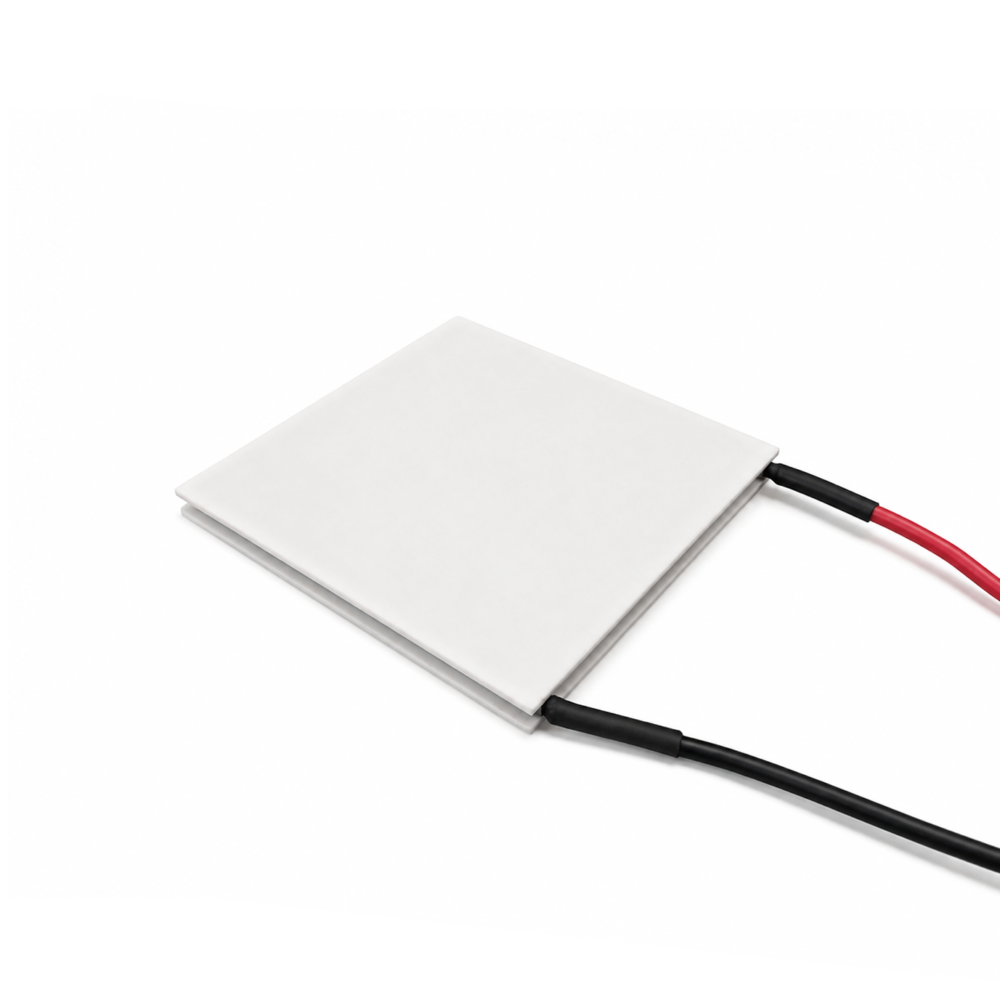

ATE1-127-17AH 170W 17A High-Temperature Thermoelectric Cooler (TEC) Module (50×50mm)
$35.10
High-Temperature Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 170 W
Imax: 17 A
Vmax: 15.4 V
ΔTmax: 63°C
Dimensions: 50 × 50 × 3.74 mm
Sealing: Non-sealed
Available on backorder
Product Overview
ATE1-127-17AH is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 17 A, 170 W Qmax and 63°C ΔTmax in a 50 × 50 mm, 127-couple package (15.4 V Vmax).
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of high-ambient industrial cooling, power electronics and outdoor enclosures; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 170 W |
| Imax | 17 A |
| Vmax | 15.4 V |
| ΔTmax | 63°C |
| Lc | 50 mm |
| W | 50 mm |
| H | 3.74 mm |
| Construction / Temp. Range | Non-sealed, single-stage; operation up to +200°C |
