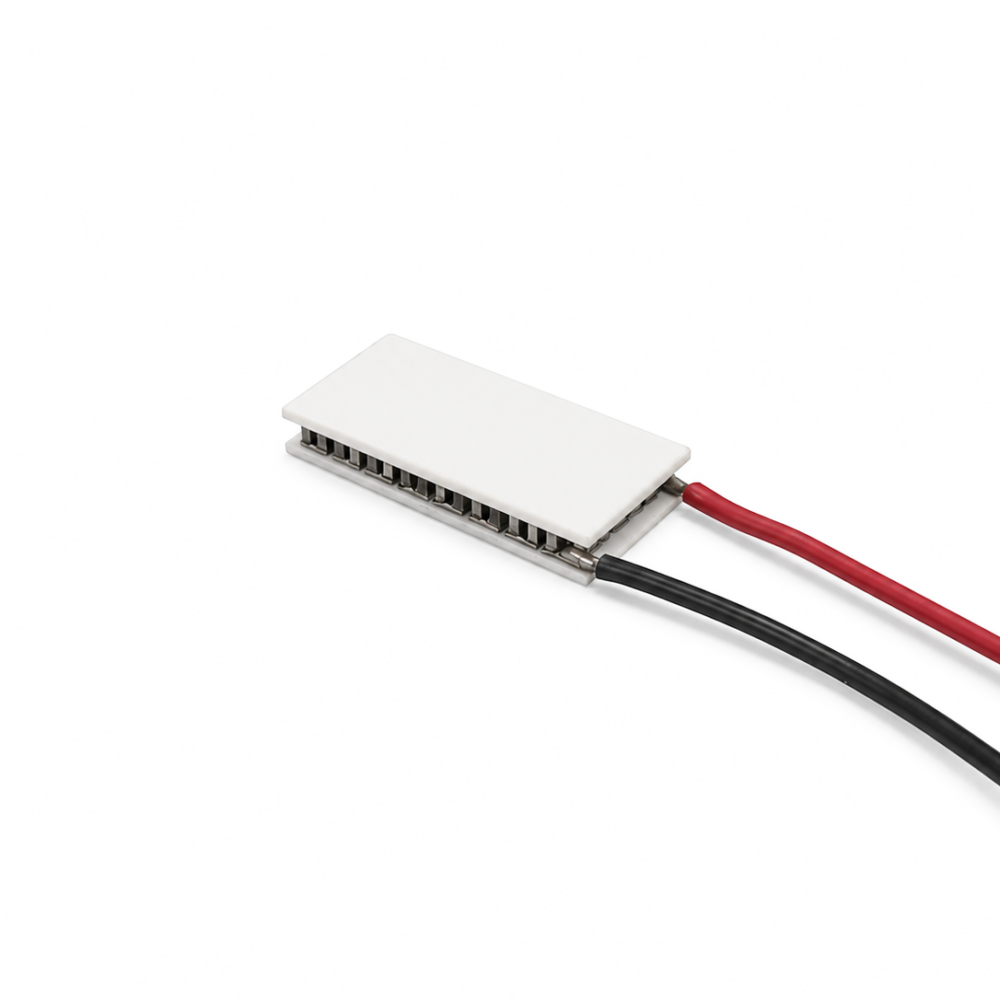

ATE1-63-3.4A 18.8W 3.4A Thermoelectric Cooler (TEC) Module (30×15mm)
$36.75
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 18.8 W
Imax: 3.4 A
Vmax: 8 V
ΔTmax: 74.5°C
Dimensions: 30 × 15 × 3.6 mm
Sealing: Non-sealed
9 in stock (can be backordered)
Product Overview
ATE1-63-3.4A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 3.4 A, 18.8 W Qmax and 74.5°C ΔTmax in a 30 × 15 mm, 63-couple package (8 V Vmax).
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 18.8 W |
| Imax | 3.4 A |
| Vmax | 8 V |
| ΔTmax | 74.5°C |
| Lc | 30 mm |
| W | 15 mm |
| H | 3.6 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
