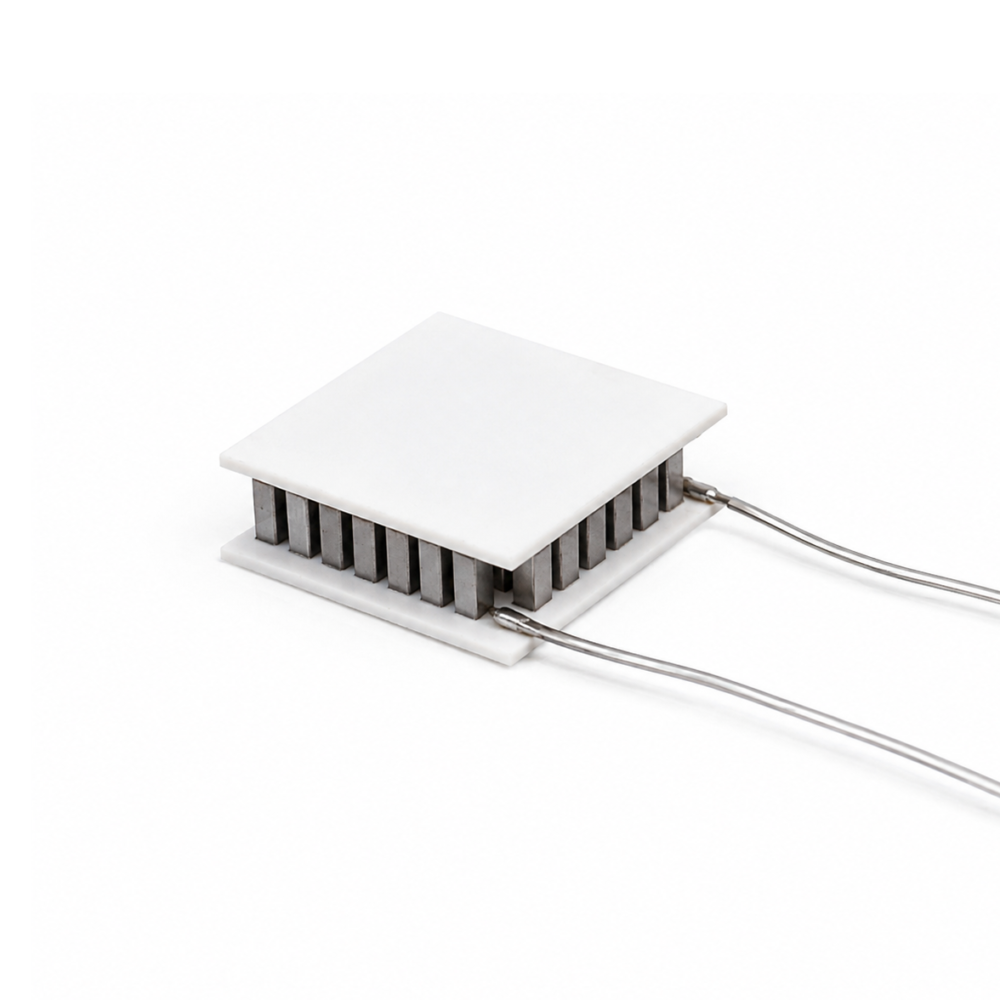

ATE1-31-1.6A 3.6W 1.6A Thermoelectric Cooler (TEC) Module (10×10mm)
$38.95
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 3.6 W
Imax: 1.6 A
Vmax: 3.8 V
ΔTmax: 74°C
Dimensions: 10 × 10 × 3 mm
Sealing: Non-sealed
6 in stock (can be backordered)
Product Overview
ATE1-31-1.6A is a non-sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 1.6 A, 3.6 W Qmax and 74°C ΔTmax in a 10 × 10 mm, 31-couple package (3.8 V Vmax).
Standard non-sealed construction for dry, temperature-controlled environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 3.6 W |
| Imax | 1.6 A |
| Vmax | 3.8 V |
| ΔTmax | 74°C |
| Lc | 10 mm |
| W | 10 mm |
| H | 3 mm |
| Construction / Temp. Range | Non-sealed, single-stage; -55°C to +85°C |
