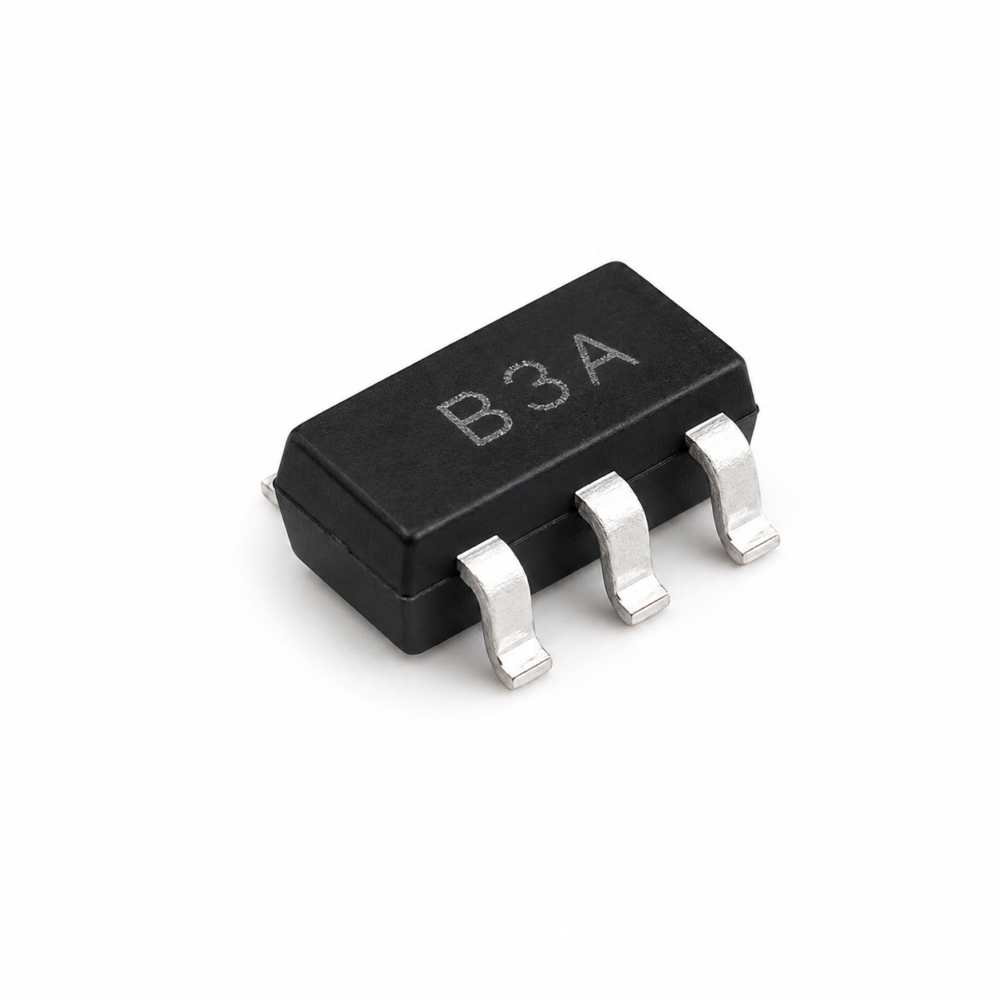

AT8605ARTZ 5.5V 10MHz Rail-to-Rail Operational Amplifier
$0.79
Operational Amplifier
Supply Voltage: 2.2V ~ 5.5V
Bandwidth (GBW): 10MHz
Rail-to-Rail I/O, Low Distortion
Product Overview
The AT8605ARTZ is a wideband, low-noise, low-distortion operational amplifier with a 10MHz gain-bandwidth product and rail-to-rail input and output operation. It operates from a single supply of 2.2V to 5.5V and draws 800µA quiescent current per amplifier.
The AT8605ARTZ features ultra-low distortion, low input voltage noise density, and low input current noise density, making it an ideal choice for portable equipment, mobile communications, smoke detectors, sensor interfaces, and medical instrumentation.
Specifications
| Supply Voltage | 2.2V to 5.5V |
| Gain Bandwidth (GBW) | 10MHz (Typ) |
| Input Offset Voltage | 5mV (Max) |
| Input Bias Current | 10pA (Typ) |
| Quiescent Current | 800µA/Amplifier (Typ) |
| Input/Output | Rail-to-Rail I/O |
| Package | SOT23-5 |
| Operating Temperature | −40°C to +125°C |
| Weight | 0.3 lbs |
|---|
