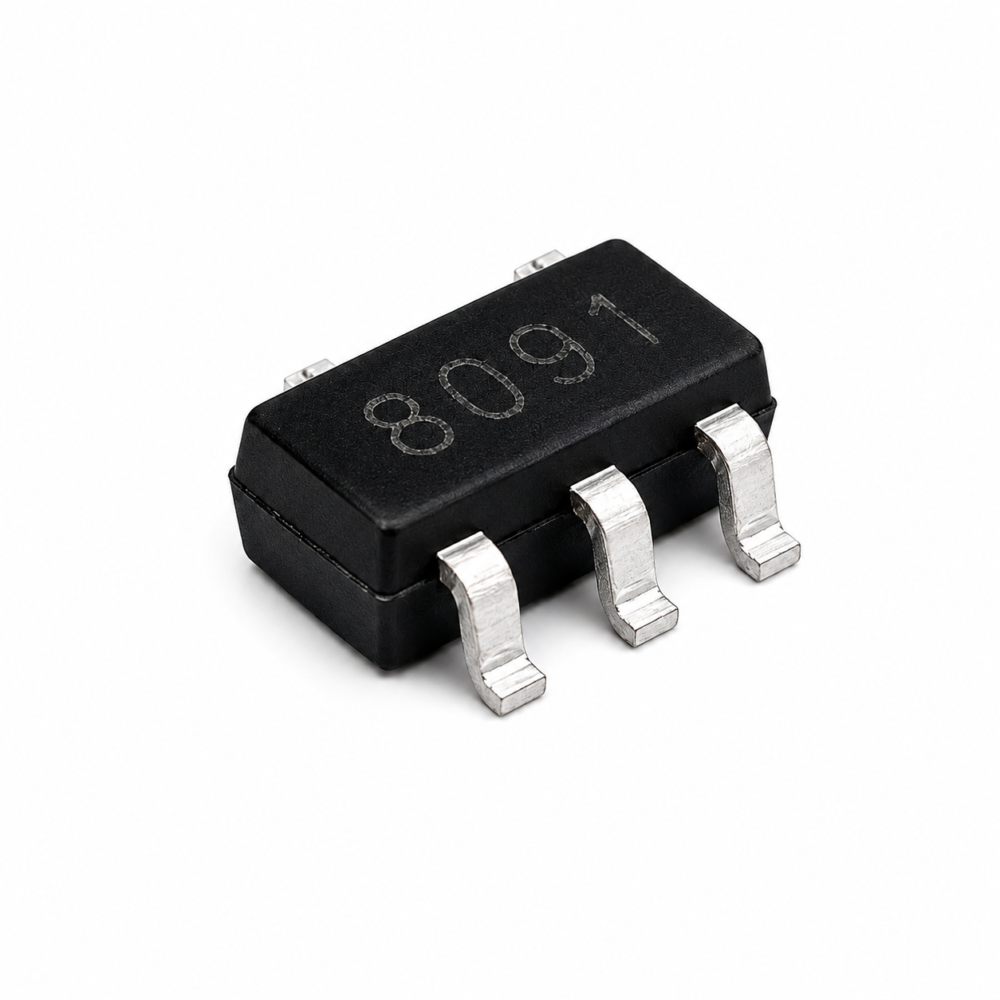

The AT8091 is a rail-to-rail output high-speed voltage-feedback operational amplifier with a −3dB bandwidth of 350MHz at unity gain and low input bias current of 1pA. It is optimized for wide bandwidth applications such as imaging, video, and high-speed data conversion.
The AT8091 delivers low distortion and fast settling from a single supply as low as 2.5V, with a quiescent current of 4.2mA per amplifier. It is available in compact SOT23-5 and SC70-5 packages for space-constrained designs.
Specifications
Supply Voltage
2.5V to 5.5V
Bandwidth (−3dB, G=+1)
350MHz (Typ)
Input Bias Current
1pA (Typ)
Quiescent Current
4.2mA/Amplifier (Typ)
Input/Output
Rail-to-Rail Output
Package
SOT23-5, SC70-5
Operating Temperature
−40°C to +125°C
Weight
0.3 lbs
