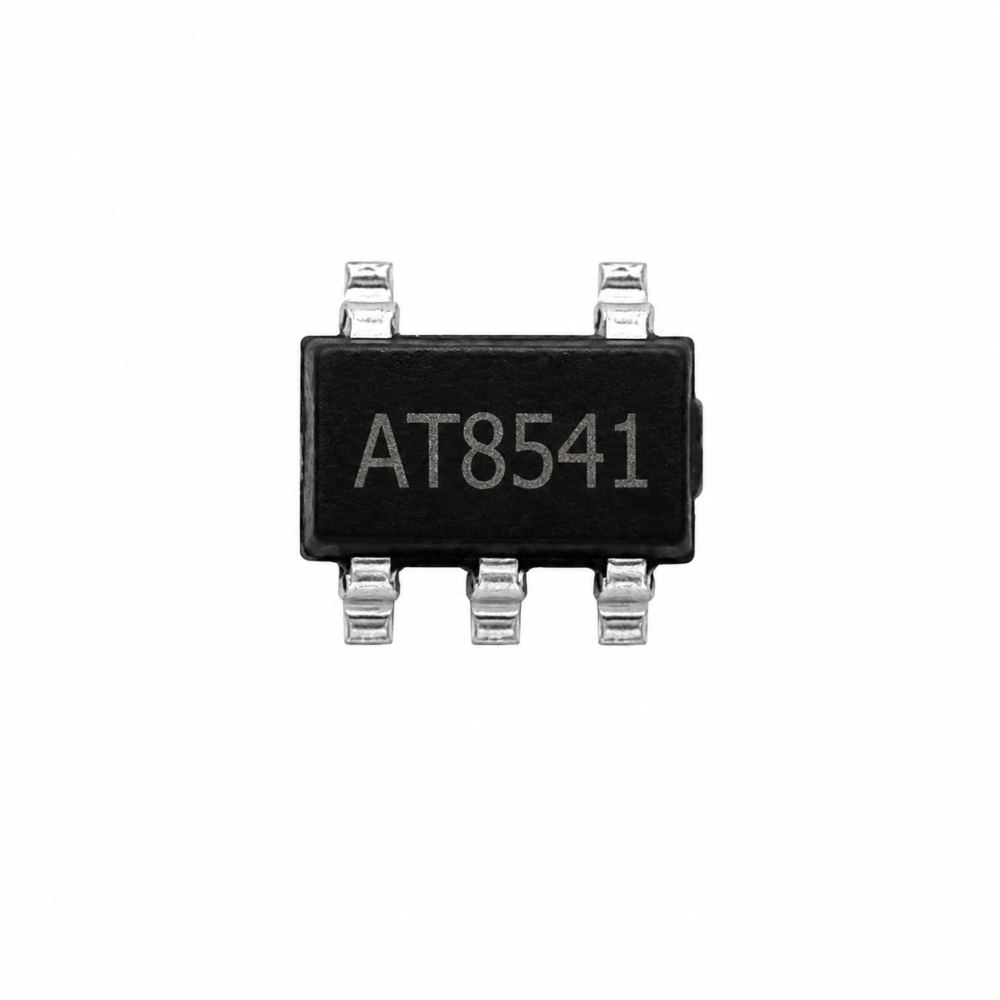

AT8541 5.5V 350kHz Zero-Drift Low-Power Operational Amplifier
$0.79
Zero-Drift Operational Amplifier
Supply Voltage: 2V ~ 5.5V
Bandwidth (GBW): 350kHz
Rail-to-Rail I/O, 40µA/Amp
Out of stock
Product Overview
The AT8541 is a zero-drift, low-power CMOS operational amplifier employing auto-calibration to achieve ±7µV typical input offset and 0.08µV/°C offset drift. It operates from a supply as low as 2V while drawing only 40µA per amplifier.
The AT8541 features rail-to-rail input and output with 0.9µVP-P low-frequency noise, making it well suited for precision current sensing, thermocouple amplification, battery-powered instruments, and medical instrumentation.
Specifications
| Supply Voltage | 2V to 5.5V |
| Gain Bandwidth (GBW) | 350kHz |
| Input Offset Voltage | ±7µV (Typ) |
| Input Offset Drift | ±0.08µV/°C |
| Quiescent Current | 40µA/Amplifier |
| Slew Rate | 0.16V/µs |
| Input Voltage Noise | 0.9µVP-P (0.1Hz to 10Hz) |
| Input/Output | Rail-to-Rail I/O |
| Package | SOT23-5 |
| Operating Temperature | −40°C to +125°C |
| Weight | 0.3 lbs |
|---|
