R06 131V 0603 0.1% Resistor Kit 131 Values
Price range: $229.00 through $1,739.00

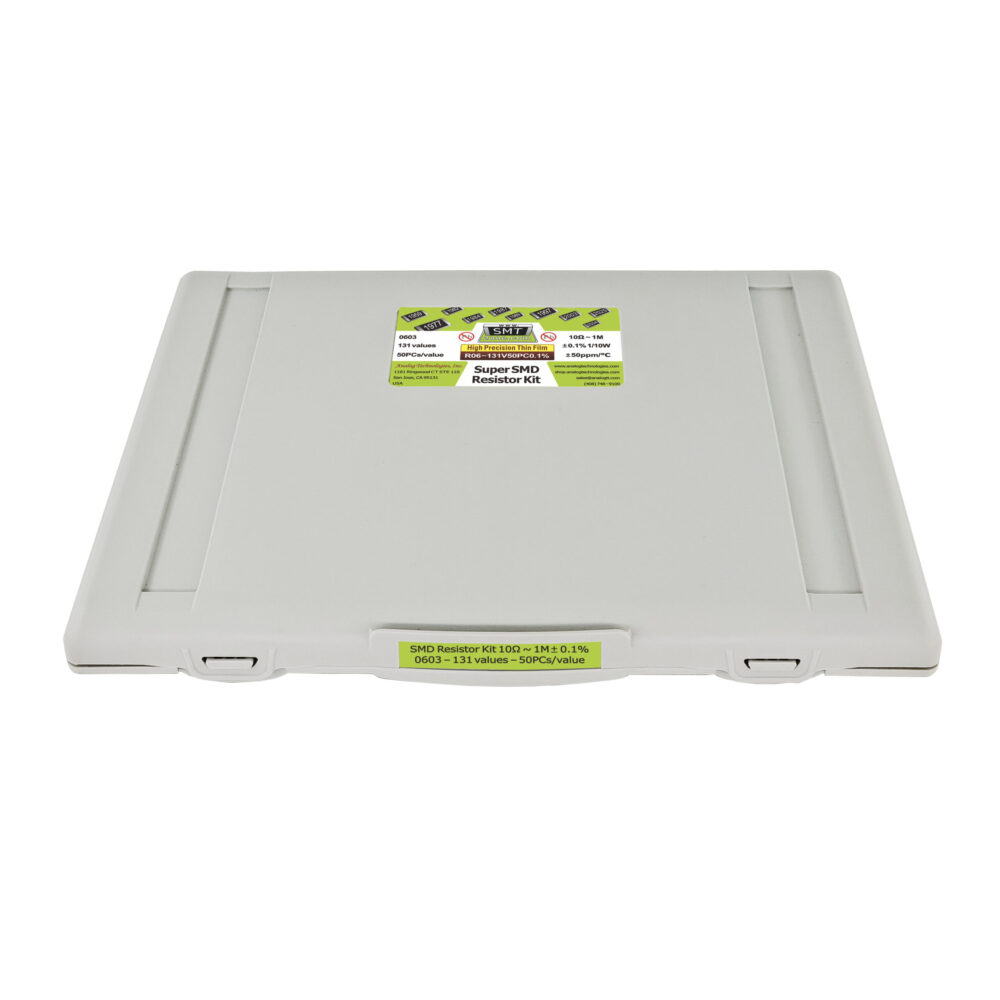

R06-131V is a 0603 0.1% SMD resistor kit with 131 values, supplied in our patented 200-bin Super Enclosure with individually lidded and labeled bins.
Quantity options:
R06-131V50PC0.1% – 50 pieces per value
R06-131V100PC0.1% – 100 pieces per value
R06-131V200PC0.1% – 200 pieces per value
R06-131V500PC0.1% – 500 pieces per value
Product Overview
The R06-131V is a 0603 0.1% SMD resistor kit holding 131 resistance values. Each value is pre-sorted and stored separately, so locating a specific resistor takes seconds instead of a parts-drawer search.

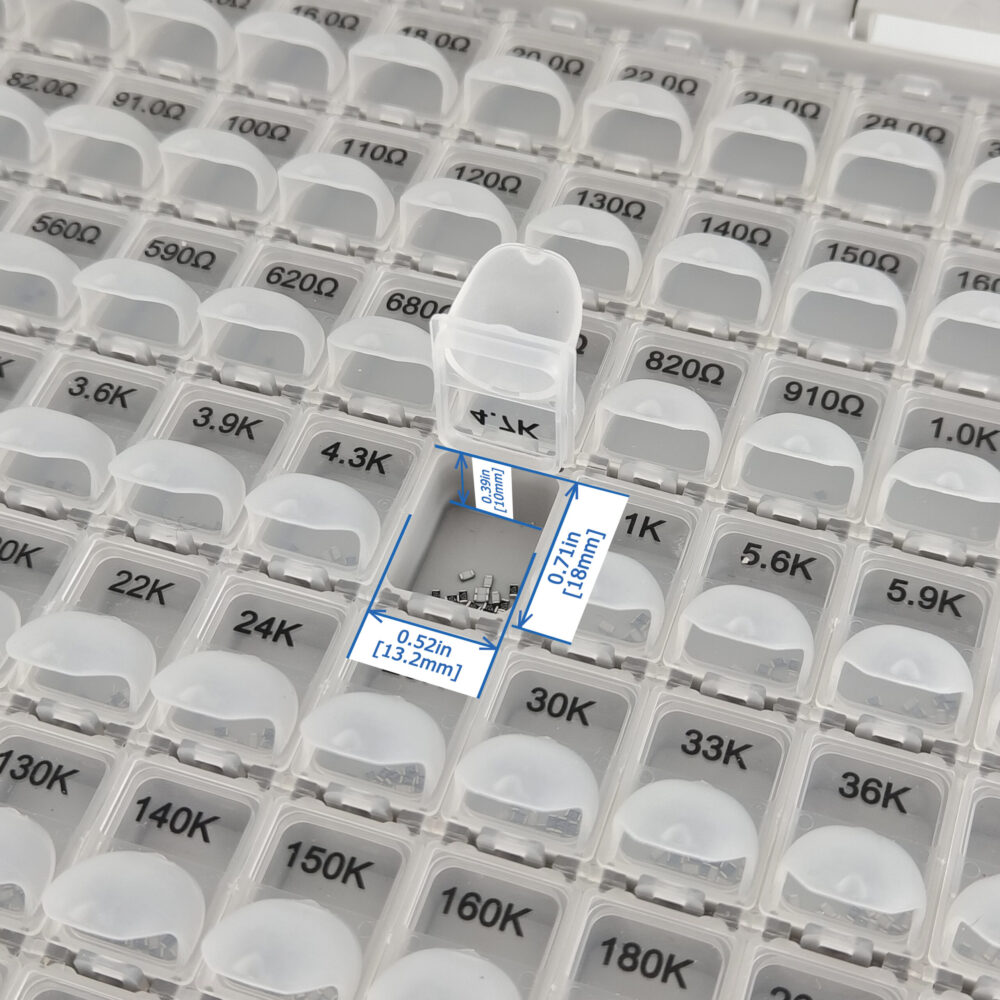

It ships in our patented Super SMD Component Enclosure with 200 individually lidded and labeled bins, which keeps the set organized on a workbench, on a shelf, or in transit to another site.
Resistance vs. Marking Code

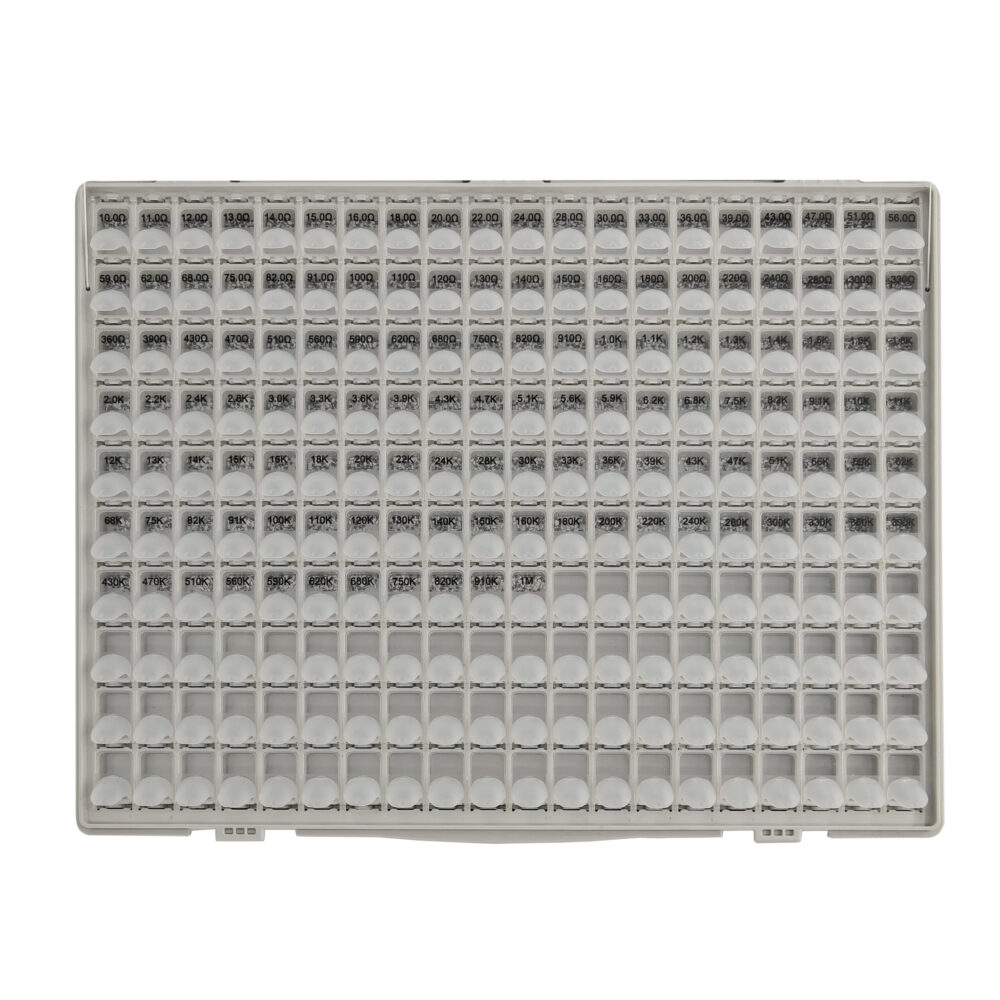

The bin lids are labeled with resistance values, but each 0603 resistor carries only a marking code, and this kit uses two code types. Values that belong to the E-96 series are marked with a 3-character EIA-96 code: two digits for the value and one letter for the multiplier (01X = 10.0Ω, 01E = 1M). All other values are marked with a 3-digit code: the first two digits are the value and the third digit is the number of zeros that follow (120 = 12.0Ω, 123 = 12K). The table below follows the bin layout of the enclosure: 20 columns by 10 rows. The 131 values fill the first 7 rows, and the remaining bins are left empty.
| 10.0Ω 01X |
11.0Ω 05X |
12.0Ω 120 |
13.0Ω 12X |
14.0Ω 15X |
15.0Ω 18X |
16.0Ω 160 |
18.0Ω 180 |
20.0Ω 30X |
22.0Ω 220 |
24.0Ω 240 |
28.0Ω 44X |
30.0Ω 300 |
33.0Ω 330 |
36.0Ω 360 |
39.0Ω 390 |
43.0Ω 430 |
47.0Ω 470 |
51.0Ω 510 |
56.0Ω 560 |
| 59.0Ω 75X |
62.0Ω 620 |
68.0Ω 680 |
75.0Ω 85X |
82.0Ω 820 |
91.0Ω 910 |
100Ω 01A |
110Ω 05A |
120Ω 121 |
130Ω 12A |
140Ω 15A |
150Ω 18A |
160Ω 161 |
180Ω 181 |
200Ω 30A |
220Ω 221 |
240Ω 241 |
280Ω 44A |
300Ω 301 |
330Ω 331 |
| 360Ω 361 |
390Ω 391 |
430Ω 431 |
470Ω 471 |
510Ω 511 |
560Ω 561 |
590Ω 75A |
620Ω 621 |
680Ω 681 |
750Ω 85A |
820Ω 821 |
910Ω 911 |
1.0K 01B |
1.1K 05B |
1.2K 122 |
1.3K 12B |
1.4K 15B |
1.5K 18B |
1.6K 162 |
1.8K 182 |
| 2.0K 30B |
2.2K 222 |
2.4K 242 |
2.8K 44B |
3.0K 302 |
3.3K 332 |
3.6K 362 |
3.9K 392 |
4.3K 432 |
4.7K 472 |
5.1K 512 |
5.6K 562 |
5.9K 75B |
6.2K 622 |
6.8K 682 |
7.5K 85B |
8.2K 822 |
9.1K 912 |
10K 01C |
11K 05C |
| 12K 123 |
13K 12C |
14K 15C |
15K 18C |
16K 163 |
18K 183 |
20K 30C |
22K 223 |
24K 243 |
28K 44C |
30K 303 |
33K 333 |
36K 363 |
39K 393 |
43K 433 |
47K 473 |
51K 513 |
56K 563 |
59K 75C |
62K 623 |
| 68K 683 |
75K 85C |
82K 823 |
91K 913 |
100K 01D |
110K 05D |
120K 124 |
130K 12D |
140K 15D |
150K 18D |
160K 164 |
180K 184 |
200K 30D |
220K 224 |
240K 244 |
280K 44D |
300K 304 |
330K 334 |
360K 364 |
390K 394 |
| 430K 434 |
470K 474 |
510K 514 |
560K 564 |
590K 75D |
620K 624 |
680K 684 |
750K 85D |
820K 824 |
910K 914 |
1M 01E |
|||||||||
Specifications
| Resistor Size | 0603 |
| Number of Values | 131 |
| Resistance Range | 10Ω to 1MΩ |
| Tolerance | 0.1% |
| Power Rating | 1/10W |
| Max. Working Voltage | 75V |
| Max. Overload Voltage | 150V |
| Dielectric Withstanding Voltage | 100V |
| Operating Temperature | −55°C to 155°C |
| Temperature Coefficient | ±50ppm/°C |
| Pieces per Value | 50, 100, 200, 500 |
| Enclosure | 200-bin Super SMD Component Enclosure™ |
Ordering Options
| R06-131V50PC0.1% | 50 pieces per value |
| R06-131V100PC0.1% | 100 pieces per value |
| R06-131V200PC0.1% | 200 pieces per value |
| R06-131V500PC0.1% | 500 pieces per value |
Applications
Typical uses include circuit development, prototyping, troubleshooting, board rework, and keeping an engineering or repair bench stocked with a full range of values.
| Weight | 8 lbs |
|---|---|
| Dimensions | 12 × 10 × 10 in |
| Package Size |
