ATIN0740 Series Shielded SMD Power Inductor 0.22uH to 15uH

ATIN0740 Series Shielded SMD Power Inductor 0.22uH to 15uH

$1.30

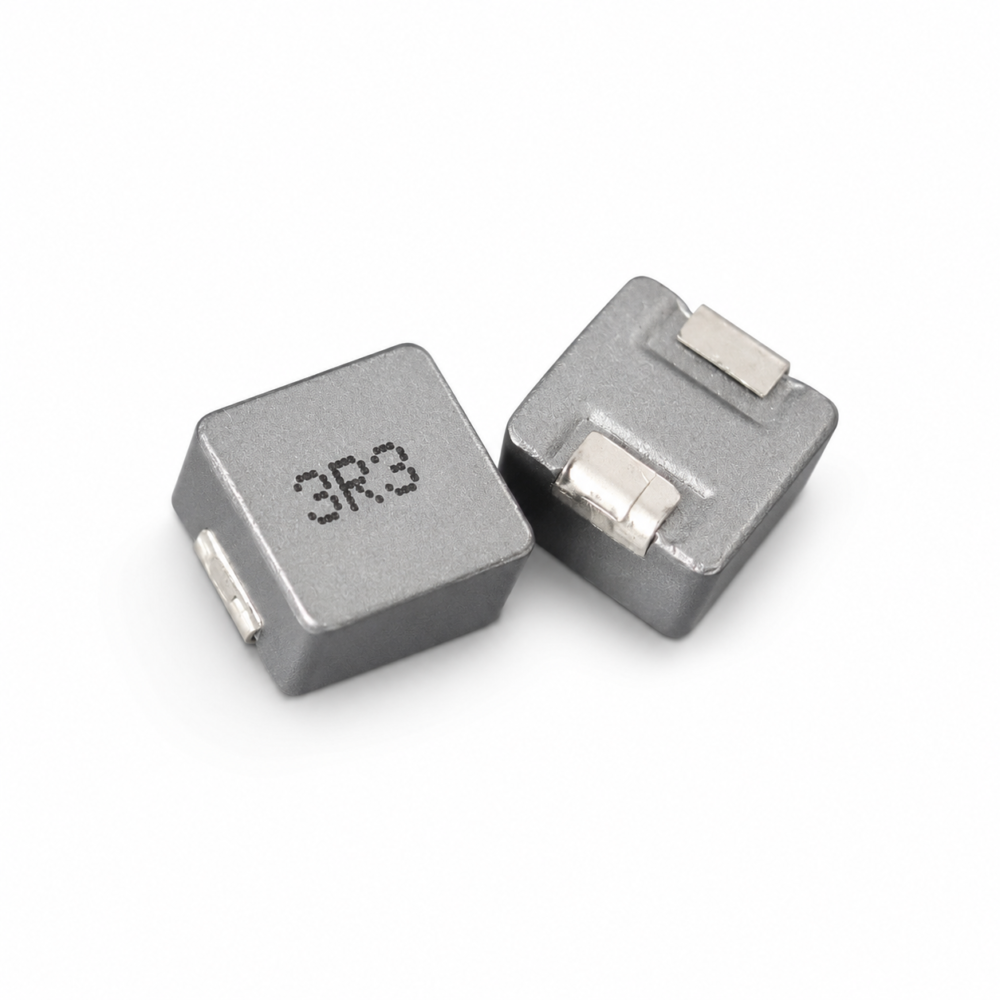

ATIN0740 is a shielded SMD power inductor series with 13 inductance values from 0.22 µH to 15 µH.
Inductance: 0.22 – 15 µH (±20%)
Irms: up to 30.0 A
Isat: up to 34.0 A
Frequency range: up to 1.0 MHz

Datasheet
SKU: ATIN0740 Category:

Product Overview

The ATIN0740 is a shielded SMD power inductor series covering 13 inductance values from 0.22 µH to 15 µH. The composite shielded construction handles high transient current spikes without saturation and keeps buzz noise ultra low.
The series offers the lowest DCR per µH in this package size, making it suited to DC-DC converters, switching power supplies, and output filtering up to 1.0 MHz.

Specifications

Inductance Range 0.22 – 15 µH
Inductance Tolerance ±20% (M)
Frequency Range Up to 1.0 MHz
Irms Range 3.6 – 30.0 A
Isat Range 4.3 – 34.0 A
Construction Shielded, composite
Operating Temperature −55°C ~ +125°C
Compliance RoHS Directive 2002/95/EC

Ordering Options

Part Number L (0A) µH Irms (A) Isat (A) DCR Max (mΩ)
ATIN0740-R22M 0.22 30.0 34.0 1.3
ATIN0740-R50M 0.5 20.0 21.0 3.4
ATIN0740-1R1M 1.1 15.3 19.0 5.5
ATIN0740-1R5M 1.5 11.5 13.0 10.0
ATIN0740-2R2M 2.2 11.0 11.0 12.0
ATIN0740-3R3M 3.3 10.0 10.0 16.0
ATIN0740-4R7M 4.7 6.7 8.0 24.0
ATIN0740-5R6M 5.6 6.3 8.0 29.0
ATIN0740-6R8M 6.8 6.0 7.0 33.0
ATIN0740-8R2M 8.2 5.0 5.5 39.0
ATIN0740-100M 10.0 4.1 5.0 45.0
ATIN0740-120M 12.0 4.0 5.0 53.0
ATIN0740-150M 15.0 3.6 4.3 60.0

Applications

Typical uses include DC-DC converters, switching power supplies, POL regulators, output filtering, and high transient current circuits requiring low DCR and stable inductance.
Weight 0.2 lbs
Inductance

0.22, 0.5, 1.1, 1.5, 10, 12, 15, 2.2, 3.3, 4.7, 5.6, 6.8, 8.2
