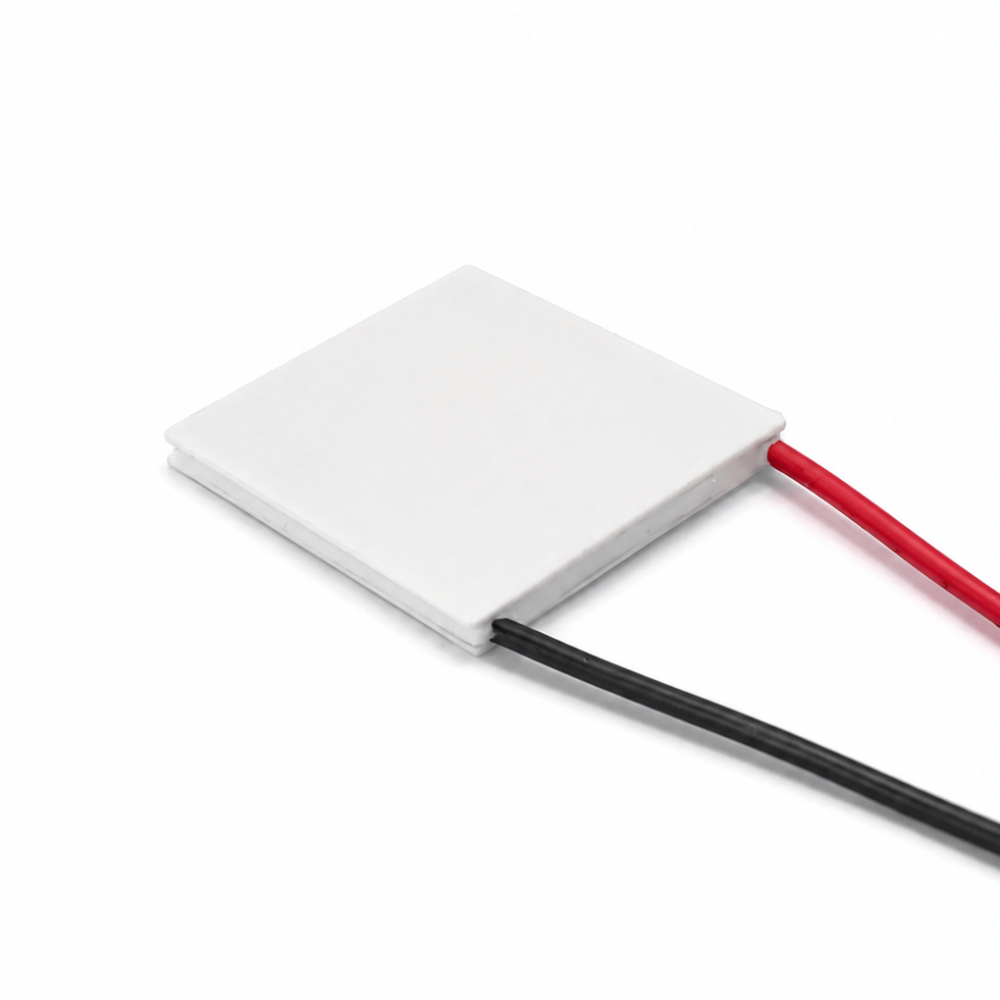

ATE1-71-6AS 34.1W 6A Thermoelectric Cooler (TEC) Module (30×30mm)
$13.69
Single-Stage Thermoelectric Cooler (TEC / Peltier Module)
Qmax: 34.1 W
Imax: 6 A
Vmax: 8.5 V
ΔTmax: 63°C
Dimensions: 30 × 30 × 4 mm
Sealing: Sealed
14 in stock (can be backordered)
Product Overview
ATE1-71-6AS is a sealed, single-stage thermoelectric cooler (TEC / Peltier module) rated 6 A, 34.1 W Qmax and 63°C ΔTmax in a 30 × 30 mm, 71-couple package (8.5 V Vmax).
Its edge-sealed construction blocks moisture for humid or condensing environments. Ideal for temperature control of laser diodes, optical components, CCD / IR cameras and bio-tech instruments; pairs with ATI TEC controllers and NTC thermistors.
Specifications
| Qmax | 34.1 W |
| Imax | 6 A |
| Vmax | 8.5 V |
| ΔTmax | 63°C |
| Lc | 30 mm |
| W | 30 mm |
| H | 4 mm |
| Construction / Temp. Range | Sealed, single-stage; -55°C to +85°C |
