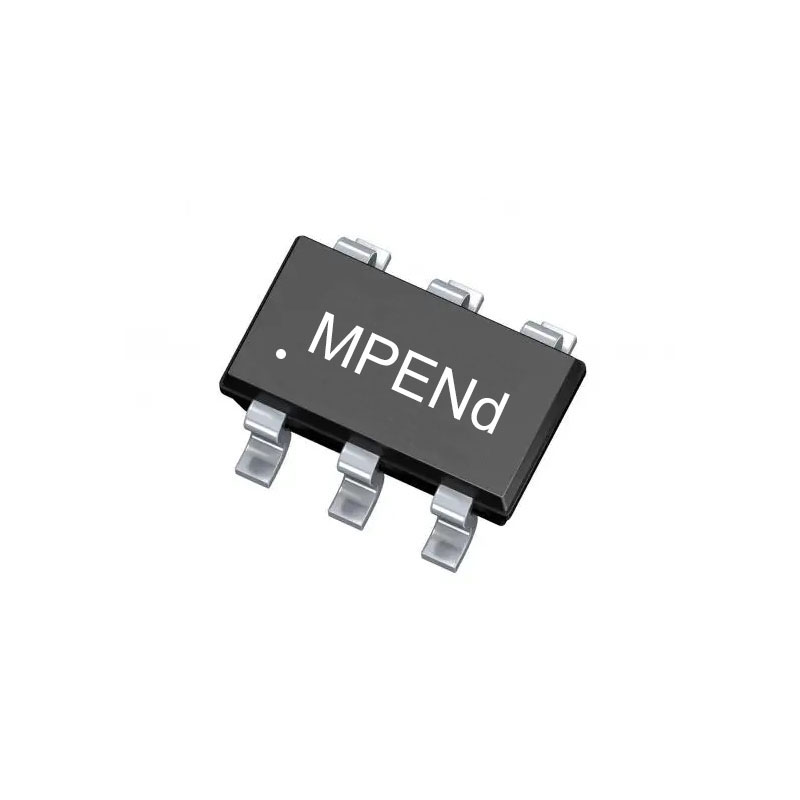

The ATDC2934 is a current-mode PWM step-down DC/DC converter with a 0.9Ω integrated switch, delivering up to 600 mA output current from a wide 5 V to 42 V input supply. Its 1.2 MHz fixed switching frequency allows small external components for a compact power-conversion solution.
This product page provides selectable configurations. Customers can choose the ATDC2934 main product only or the ATDC2934EV1 evaluation board only from the configuration menu. Each configuration has its own SKU, price, and stock quantity.
The ATDC2934EV1 evaluation board is designed for convenient evaluation of the ATDC2934 step-down DC/DC converter. It provides a complete application circuit, adjustable output voltage, terminal blocks, solder pads, and measurement nodes for easy connection to external instruments and components.
The ATDC2934 features fixed-frequency peak-current-mode control with internal compensation and soft-start, high-side and low-side current limits, over-voltage protection, and thermal shutdown, achieving up to 95% efficiency at VIN = 12 V. It is available in a thermally enhanced SOT-23-6 package.
Configuration Options
Main Product Only
ATDC2934 converter supplied as a loose IC component only, without the evaluation board.
Evaluation Board
ATDC2934EV1 evaluation board with the ATDC2934 pre-soldered onto the board, ready for testing out of the box.
