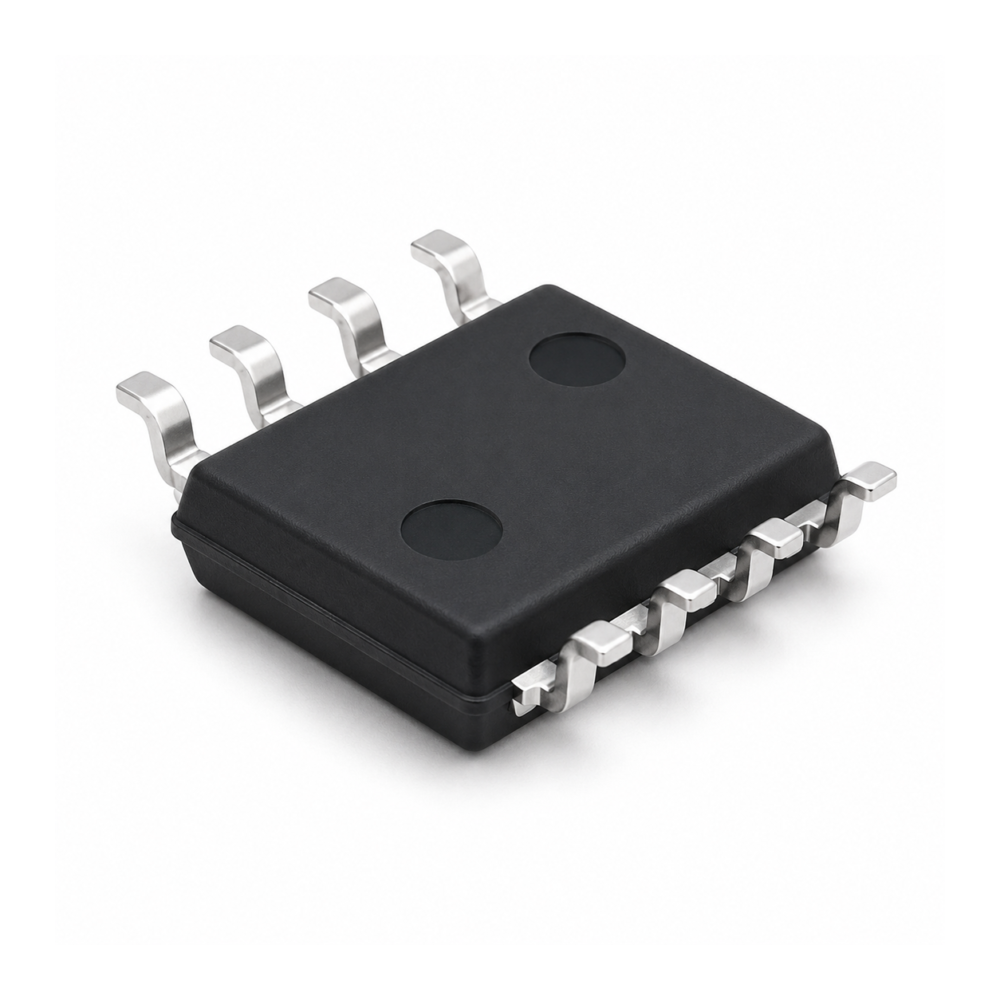

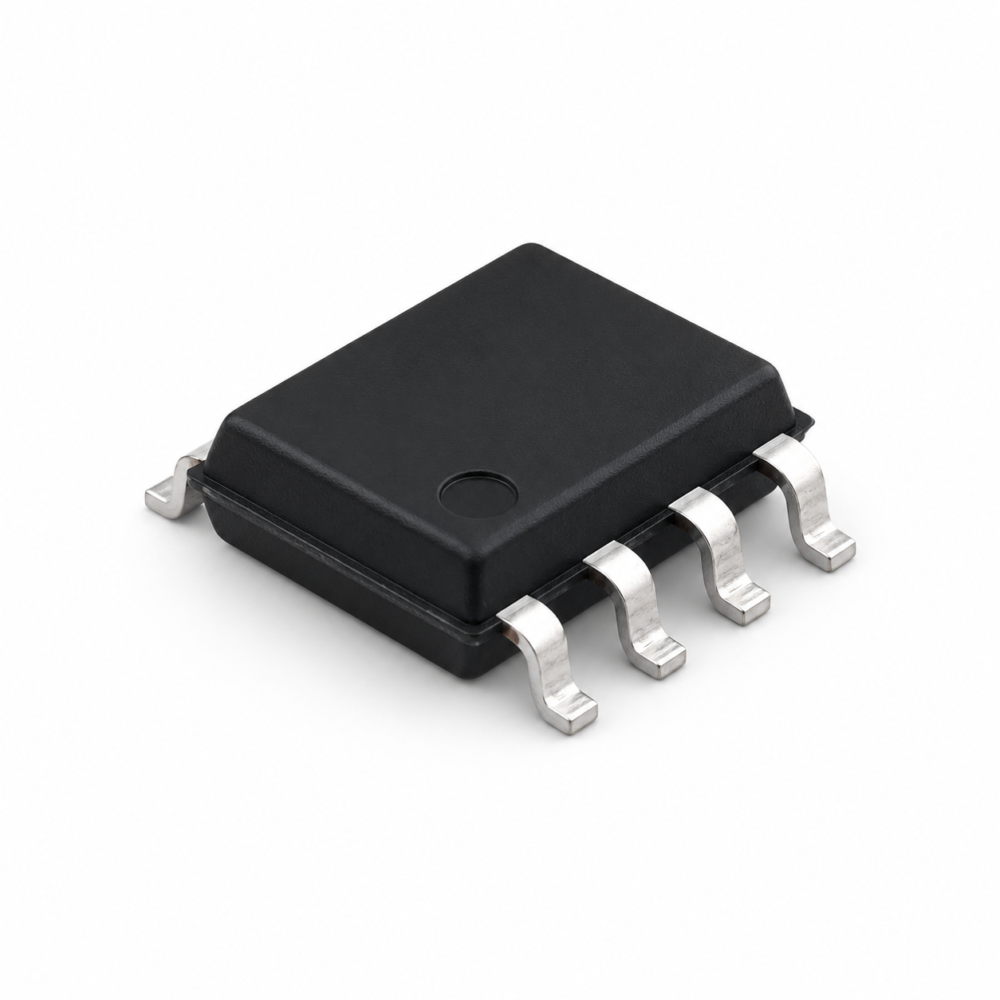

AT8023D Bi-Direction Relay Driver (800mA, 5-24V)
$0.46
Bi-Direction Relay Driver
Recommended Supply: 5V ~ 24V
Max Output Current: 800mA
Integrated Reverse-Voltage Protection
Product Overview
The AT8023D is a bi-direction relay driver designed to control DC motors and magnetic latching relays with large output capability and ultra-low power consumption. It is well suited for smart meters, motor drive circuits, and pulse or level-controlled magnetic latching relay applications.
The AT8023D integrates a high-speed freewheeling diode with a built-in reverse-voltage function, eliminating the need for external TVS in typical applications. Its input high/low conversion level is approximately 1.5V, providing direct compatibility with a wide range of microcontrollers.
Specifications
| Function | Bi-Direction Relay / DC Motor Driver |
| Max Input Voltage | 40V |
| Limit Operating Voltage | 30V |
| Recommended Safe Voltage | 5V to 24V |
| Limit Operating Current | 800mA |
| Typical Operating Power | 5W (400mA @ 12V) |
| Limit Power | 10W (800mA @ 12V) |
| Input Logic Threshold | ~1.5V (MCU-Compatible) |
| Integrated Protection | Freewheeling Diode with Reverse-Voltage Function |
| Weight | 0.3 lbs |
|---|
