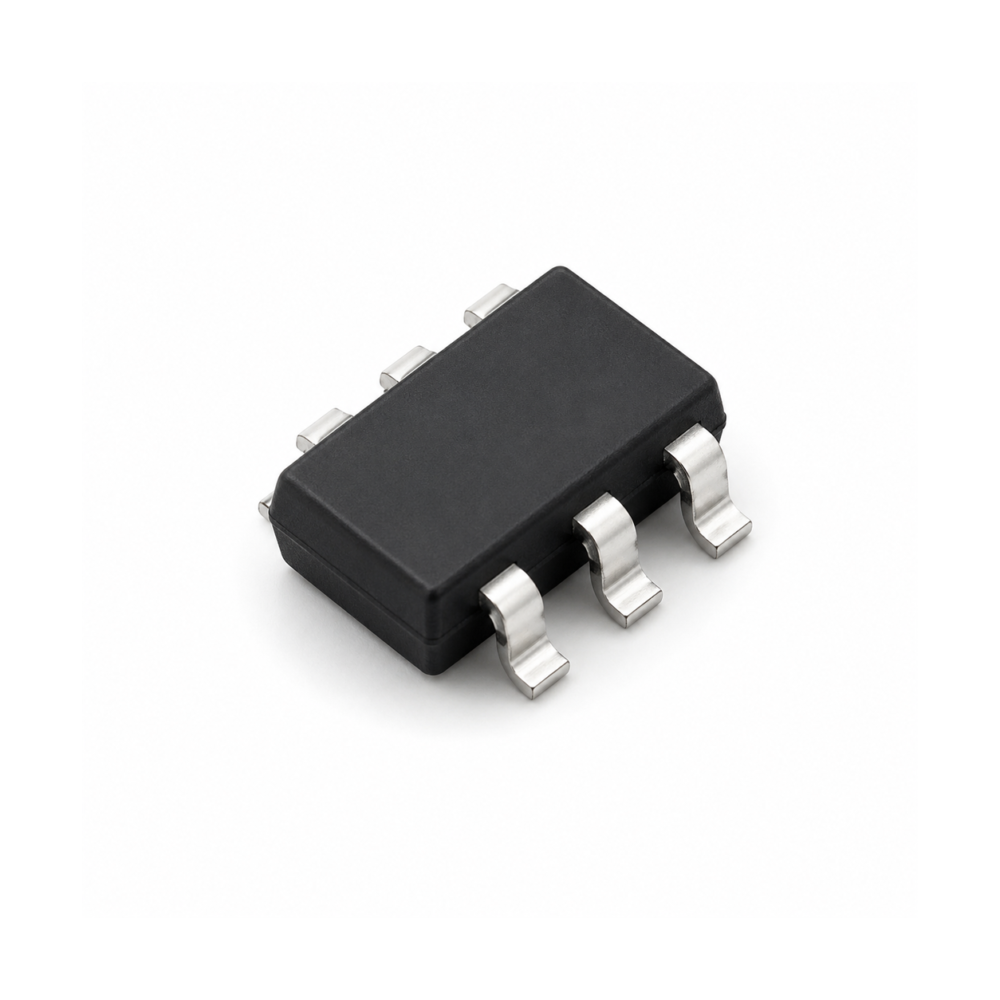

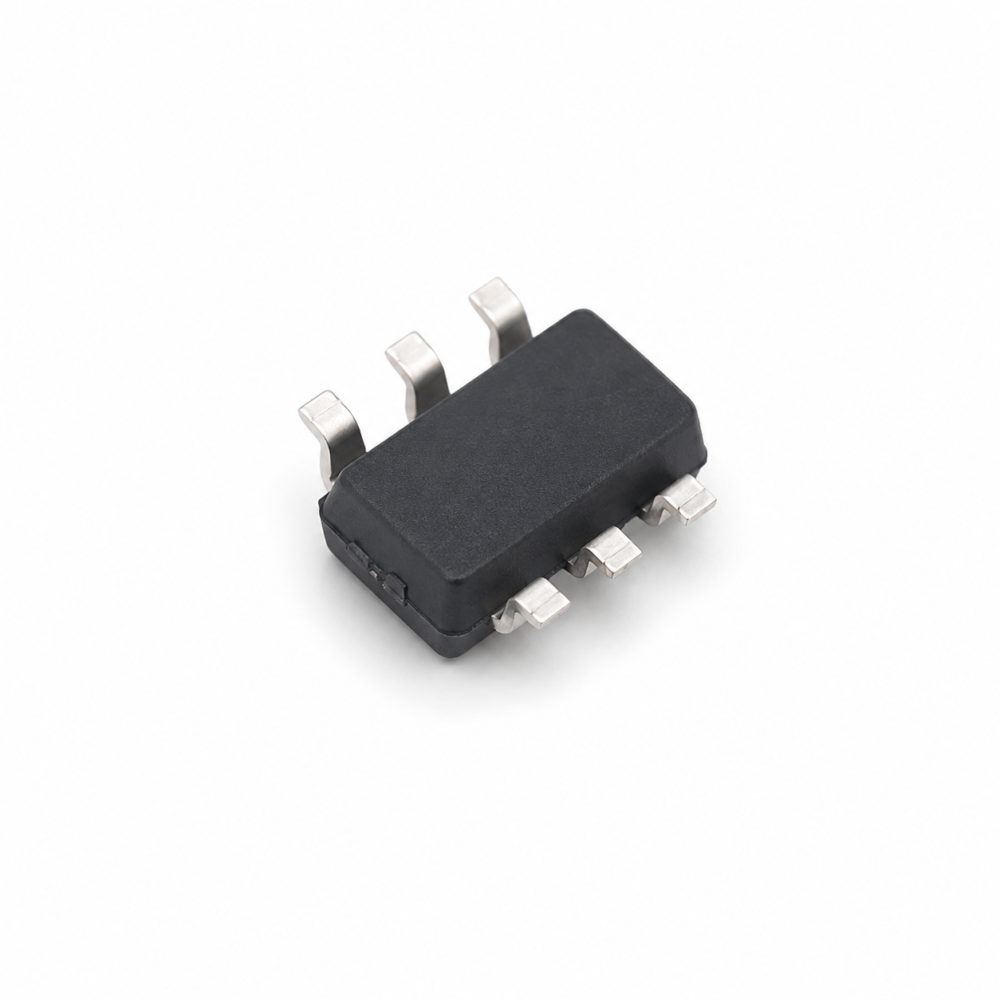

AT9451 0.6A 1.8MHz Step-Down DC-DC Converter (40V Input)
$0.48
Step-Down DC-DC Converter
Input Voltage: 4.2V ~ 40V
Output Current: 0.6A (Peak)
Switching Frequency: 1.8MHz
Product Overview
The AT9451 is a 1.8MHz non-synchronous step-down switching regulator with an integrated 500mΩ high-side power MOSFET. It provides internally compensated 0.6A peak output current over a wide 4.2V to 40V input range, with efficiency exceeding 90%.
The AT9451 features stable operation with ceramic output capacitors, internal soft-start, and precision current limiting without an external sense resistor. Low quiescent current (230µA operating, <1µA shutdown) makes it suitable for battery-powered applications. It is available in SOT23-6.
Specifications
| Input Voltage | 4.2V to 40V |
| Output Current | 0.6A (Peak) |
| Switching Frequency | 1.8MHz (Fixed) |
| Internal MOSFET RDS(ON) | 500mΩ |
| Efficiency | >90% |
| Topology | Non-Synchronous Buck |
| Operating Quiescent Current | 230µA |
| Shutdown Current | <1µA |
| Package | SOT23-6 |
| Weight | 0.3 lbs |
|---|
