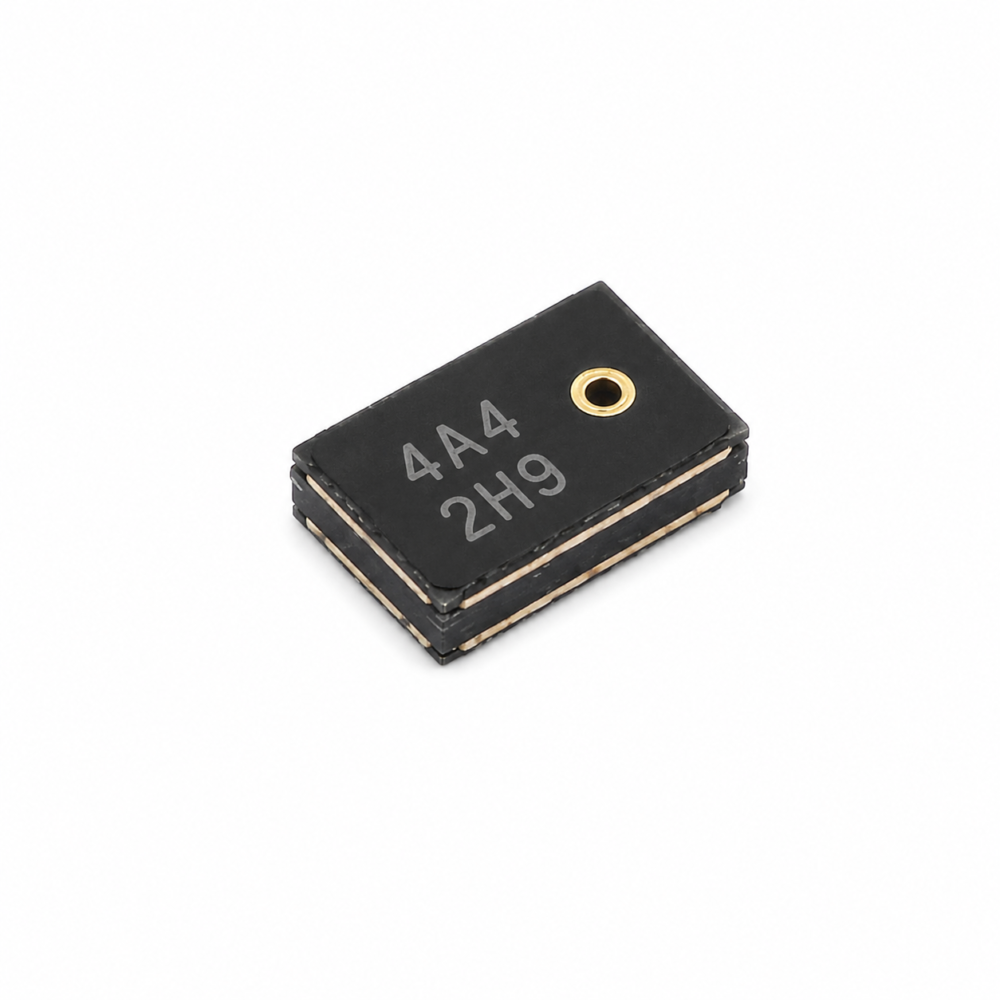

The AT6216 is a high-quality, low-power, analog-output top-ported omni-directional MEMS microphone. It integrates a MEMS microphone element and a preamplifier, delivering high SNR and flat wideband frequency response for natural sound with high intelligibility.
The AT6216 includes a built-in EMI filter for high RF immunity and is available in a compact 2.75mm × 1.85mm × 1.00mm surface-mount package. It is reflow-solder compatible with no sensitivity degradation and is Halogen and Lead free.
Specifications
Output Type
Analog
Port Location
Top
Directivity
Omni-directional
Supply Voltage (VDD)
1.5V to 3.6V
SNR
65dB(A)
Sensitivity
−38dBV/Pa
Package
2.75 × 1.85 × 1.00 mm SMD
Compliance
Halogen & Lead Free, Reflow Compatible
Weight
0.3 lbs
