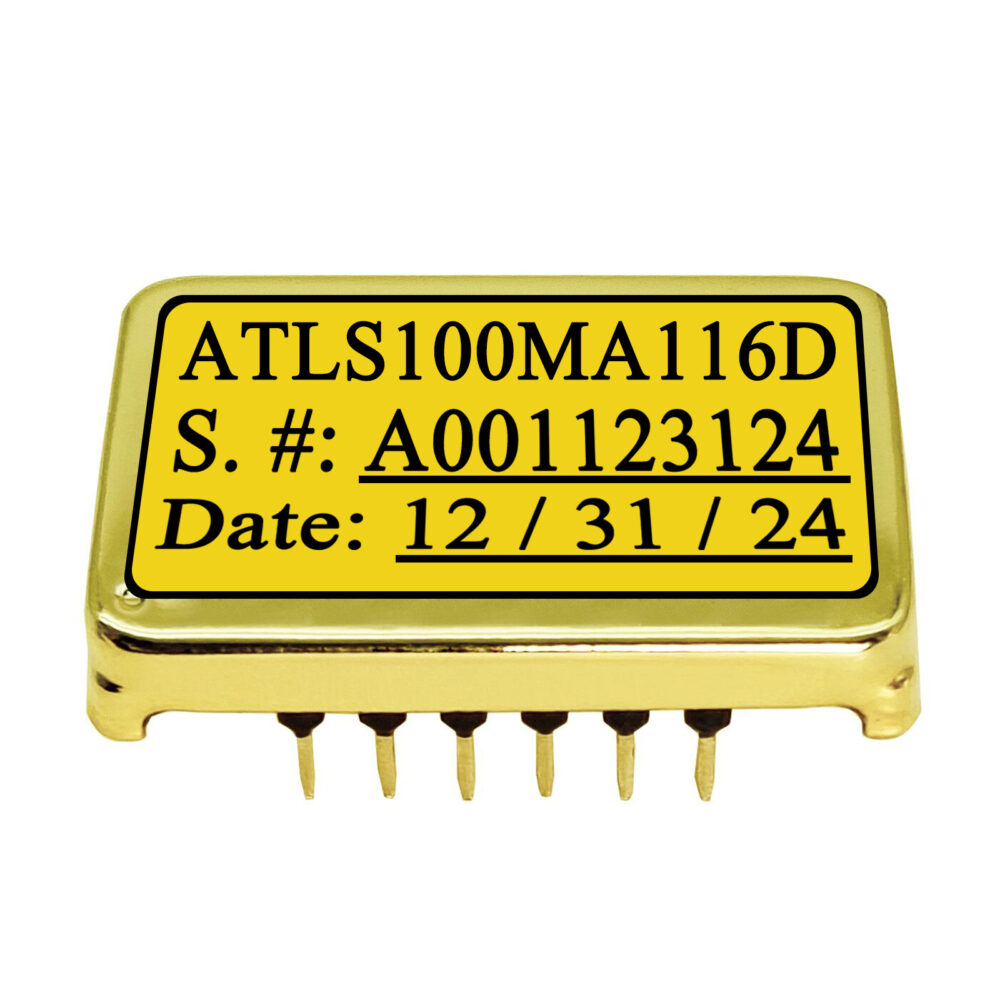

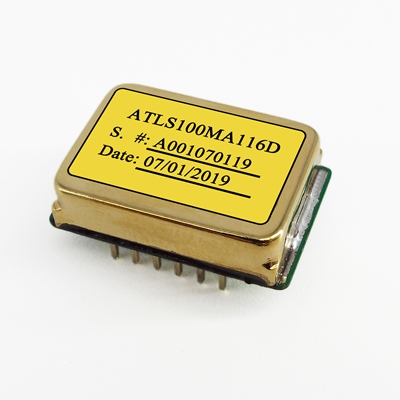

ATLS100MA116D Ultra-Low Noise Laser Driver, 100mA, DC Input
$101.00
Constant Current Laser Diode Driver
Input Voltage (VVPS): 6.5V ~ 16V
Output Voltage: 1.5V ~ 14V (1.5V ~ VVPS – 2V)
Max. Output Current: 100mA
Noise: <300nAP-P
6 in stock (can be backordered)
Product Overview
The ATLS100MA116D is a constant current laser diode driver designed for driving up to 100mA laser diodes with ultra-low output noise. It operates from a 6.5V ~ 16V power supply and delivers stable current output across a 1.5V ~ 14V load voltage range, with output noise <300nAP-P (0.1Hz ~ 10Hz).
The driver is suitable for applications including DPSSL, EDFA, SOA, Fiber Laser, Direct Diode Lasers.
Specifications
| Input Voltage (VVPS) | 6.5V ~ 16V |
| Output Voltage | 1.5V ~ 14V (1.5V ~ VVPS – 2V) |
| Max. Output Current | 100mA |
| Noise | <300nAP-P |
| Stability | <15ppm/°C |
| Modulation BW | DC ~ 1MHz |
| Efficiency | No heat sink needed when PDRIVER < 1W |
| Drive Type | Linear |
| Package Type | DIP |
| Input Type | DC Medium |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 20×14.5×5 |
| Weight | 0.3 lbs |
|---|---|
| Laser Input Voltage | DC Medium (6V To 16V) |
| Laser Max Current | Up To 500mA |
| Laser Drive Type | Linear |
| Laser Package | DIP |
| Vin | 6.5V ~ 16V |
| Iout | 100mA |
| Vf | 1.5V ~ 14V |
| Noise | <300nAP-P |
