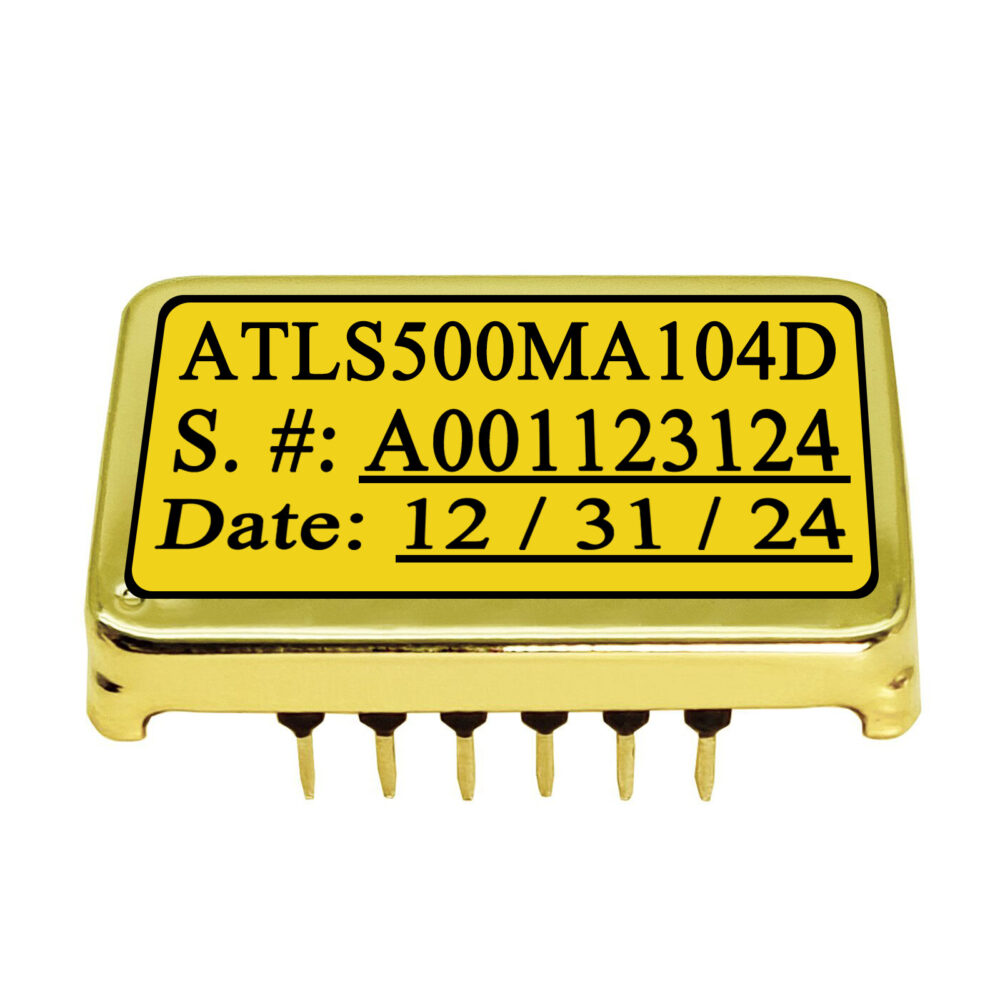

The ATLS500MA104D is a constant current laser diode driver designed for driving up to 500mA laser diodes with ultra-low output noise. It operates from a 3.1V ~ 5.5V power supply and delivers stable current output across a 1.5V ~ 4V load voltage range, with output noise <3.6µAP-P (0.1Hz ~ 10Hz).
The driver is suitable for applications including DPSSL, EDFA, SOA, Fiber Laser, DSB Diode Lasers.
Specifications
Input Voltage (VVPS)
3.1V ~ 5.5V
Output Voltage
1.5V ~ 4V (1.5V ~ VVPS – 1.5V)
Max. Output Current
500mA
Noise
<3.6µAP-P
Stability
<±0.5mA @ -30°C ~ 60°C
Modulation BW
DC ~ 4.67MHz
Efficiency
No heat sink needed when PDRIVER < 1W
Drive Type
Linear
Package Type
DIP
Input Type
DC Low
Operating Temperature (°C)
-40 ~ 85
Dimension (mm)
20×14.5×5
Weight
1 lbs
Laser Input Voltage
DC Low (Up To 6V)
Laser Max Current
Up To 500mA
Laser Drive Type
Linear
Laser Package
DIP
