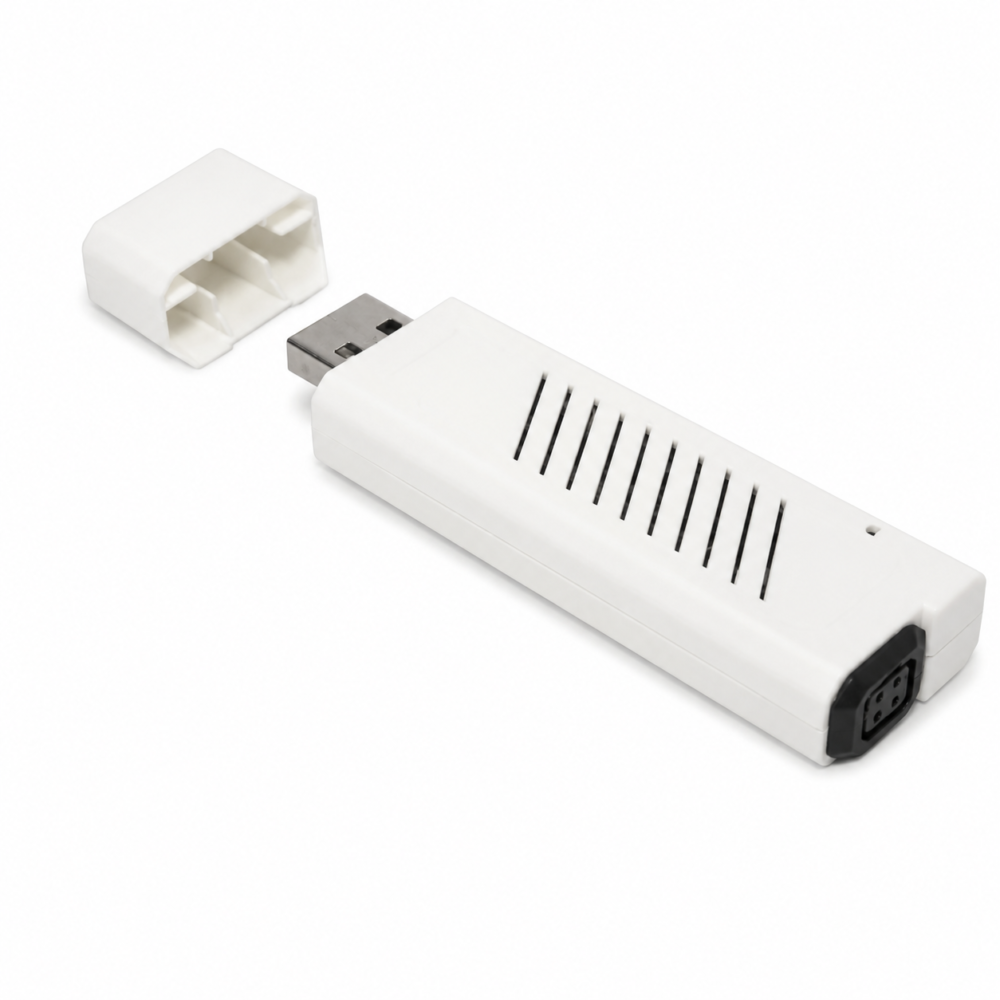

AUSBC1 Miniature USB Camera with Video Converter (640×480, Plug & Play)
$95.77Original price was: $95.77.$77.00Current price is: $77.00.
Miniature USB Camera with Video Converter Camera Head Size: 11 × 11 × 7 mm Resolution: 640 × 480 (Capture up to 720 × 576) Plug & Play — No Driver Needed High Sensitivity: 0.6 lux / F1.2
The AUSBC1 consists of two units: a miniature camera head and a USB video converter. The camera head generates standard NTSC or PAL video/audio signals with a built-in color filter array, while the USB converter digitizes those analog signals via USB Video Class protocol for convenient connection to a computer.
The camera head measures just 11 × 11 × 7 mm with a 2.2 mm mounting pin hole, offers 640 × 480 resolution, 0.6 lux/F1.2 sensitivity, progressive scan, and greater than 50 dB signal-to-noise ratio at under 100 mA @5 V. The USB converter captures video at up to 720 × 480 (NTSC) or 720 × 576 (PAL/SECAM) in AVI, MPEG-1, or Windows Media format, and works driver-free on Windows, Linux and macOS.
It is used in medical care, microscopy, video conferencing, PC multimedia, pipe and well inspection, and CCTV security surveillance applications.
Specifications
Camera Head Size
11 × 11 × 7 mm
Mounting Pin Hole
2.2 mm
Resolution
640 × 480
Capture Resolution
720 × 480 (NTSC) / 720 × 576 (PAL/SECAM)
Sensitivity
0.6 lux / F1.2
Signal-to-Noise Ratio
> 50 dB
Current Consumption
< 100 mA @5 V
Scan Mode
Progressive Scan
Output
Analog Video/Audio; Digital via USB
Driver
Plug & Play (USB Video Class)
Weight
0.3 lbs
