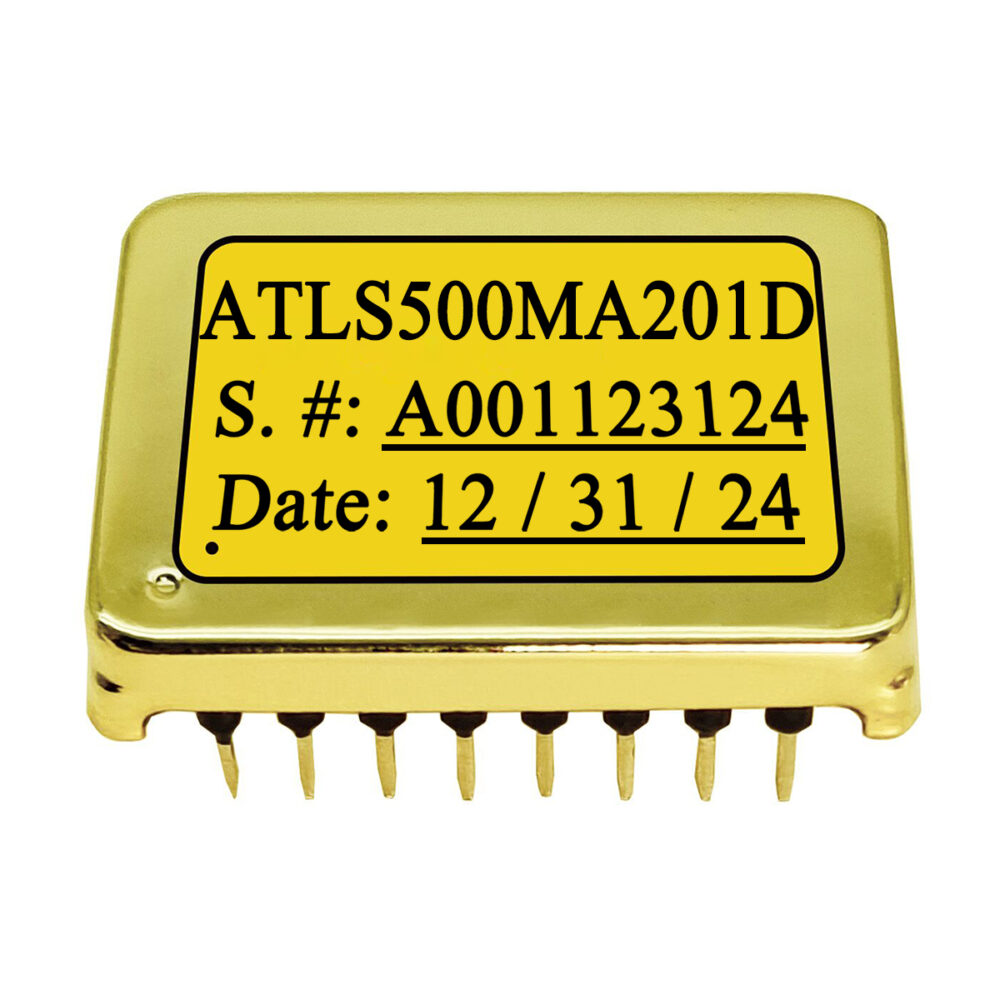

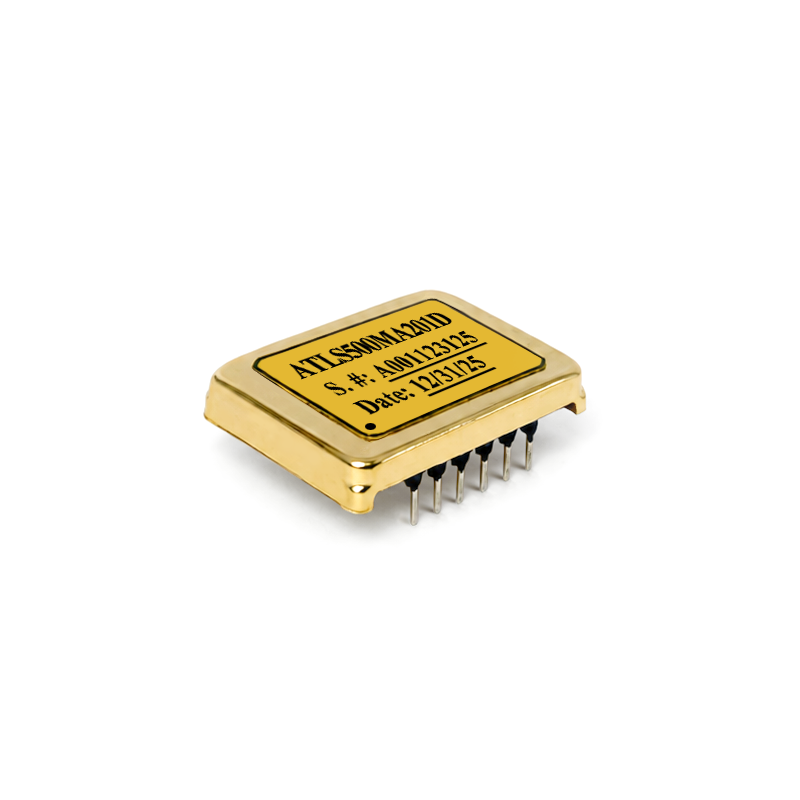

The ATLS500MA201D is a constant current laser diode driver designed for driving up to 500mA laser diodes. It operates from a 3.0V ~ 5.5V power supply and delivers stable current output across a 0V ~ 5.8V load voltage range.
The driver is suitable for applications including DPSSL, EDFA, Fiber Laser, Direct Diode Lasers.
Specifications
Input Voltage (VVPS)
3.0V ~ 5.5V
Output Voltage
0V ~ 5.8V (0V ~ VVPS – 0.2V)
Max. Output Current
500mA
Noise
<2.74µAP-P
Stability
100ppm/°C
Efficiency
90% (IOUT=500mA, VOUT=2.5V, VVPS=5V), no heat sink needed
Drive Type
Switch
Package Type
DIP
Input Type
DC Low
Operating Temperature (°C)
-40 ~ 85
Dimension (mm)
25×20×5
Weight
0.3 lbs
Laser Input Voltage
DC Low (Up To 6V)
Laser Max Current
Up To 500mA
Laser Drive Type
Switch
Laser Package
DIP
