$79.00
Constant Current Laser Diode Driver
Input Voltage (VVPS): 3.0V ~ 5.5V
Output Voltage: 0V ~ 5.8V (0V ~ VVPS – 0.2V)
Max. Output Current: 3A
Noise: <4.48µAP-P
22 in stock
Product Overview

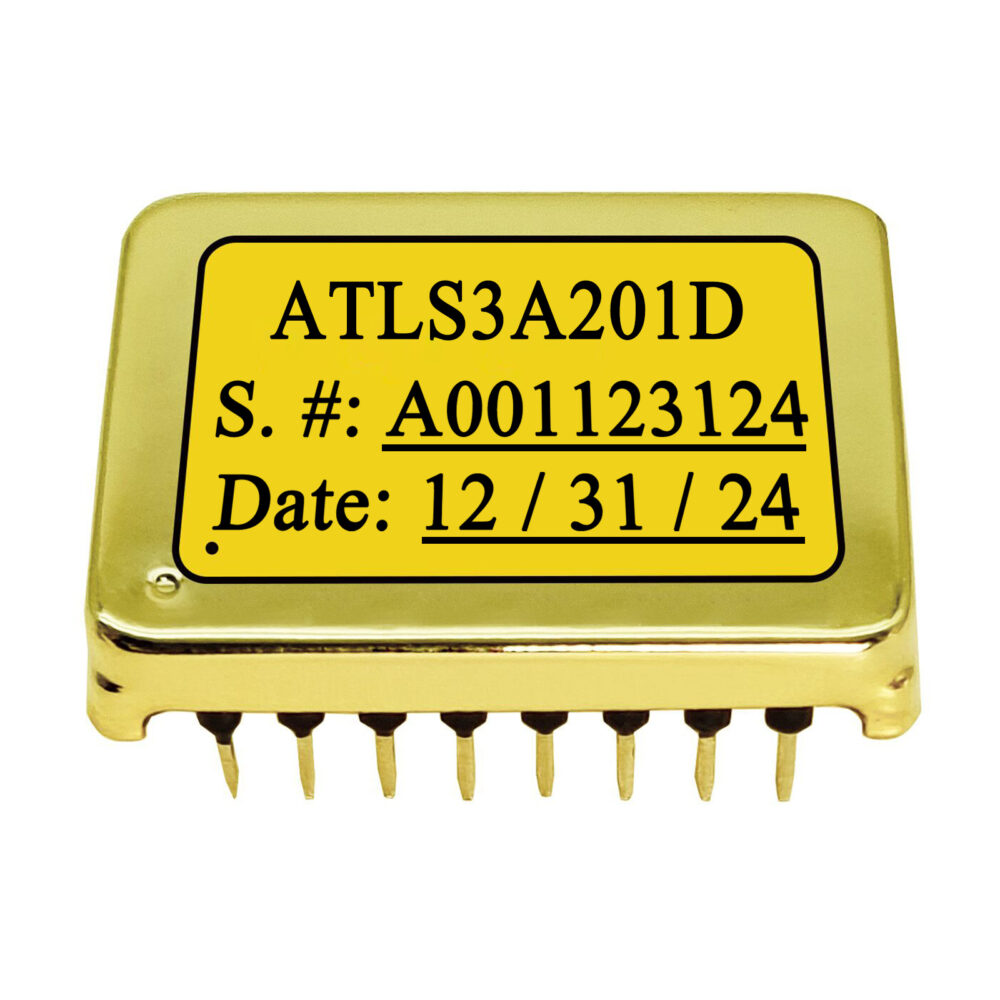

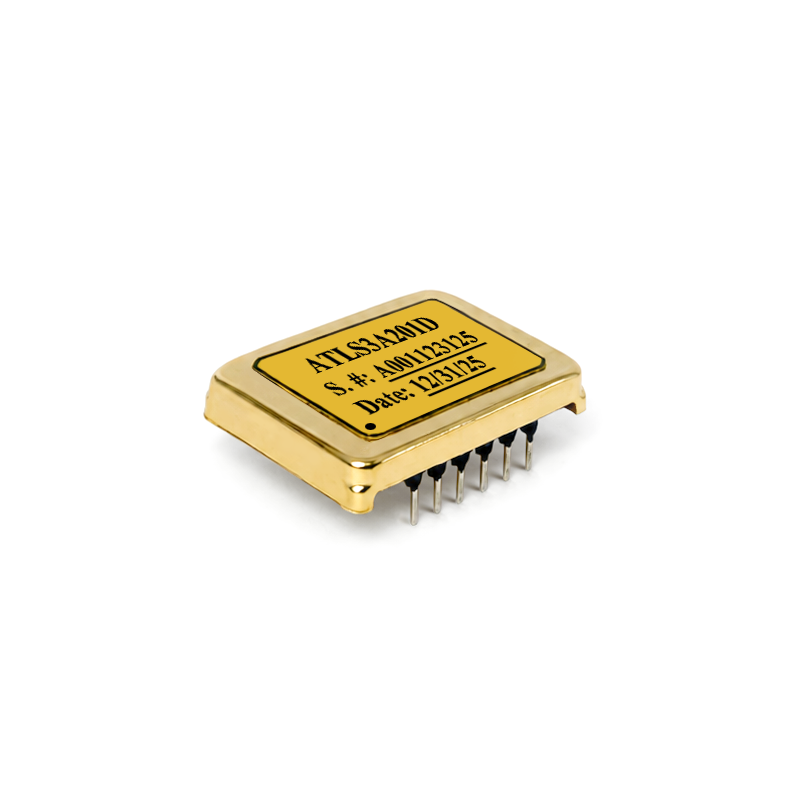

The ATLS3A201D is a constant current laser diode driver designed for driving up to 3A laser diodes. It operates from a 3.0V ~ 5.5V power supply and delivers stable current output across a 0V ~ 5.8V load voltage range.
The driver is suitable for applications including DPSSL, EDFA, Fiber Laser, Direct Diode Lasers.
Specifications
| Input Voltage (VVPS) | 3.0V ~ 5.5V |
| Output Voltage | 0V ~ 5.8V (0V ~ VVPS – 0.2V) |
| Max. Output Current | 3A |
| Noise | <4.48µAP-P |
| Stability | <8mA @3A, full temperature range |
| Efficiency | 90% (IOUT=3A, VOUT=2.5V, VVPS=5V), no heat sink needed |
| Drive Type | Switch |
| Package Type | DIP |
| Input Type | DC Low |
| Operating Temperature (°C) | -40 ~ 85 |
| Dimension (mm) | 25×20×5 |
| Weight | 0.3 lbs |
|---|---|
| Laser Input Voltage | DC Low (Up To 6V) |
| Laser Max Current | 2A To 6A |
| Laser Drive Type | Switch |
| Laser Package | DIP |
