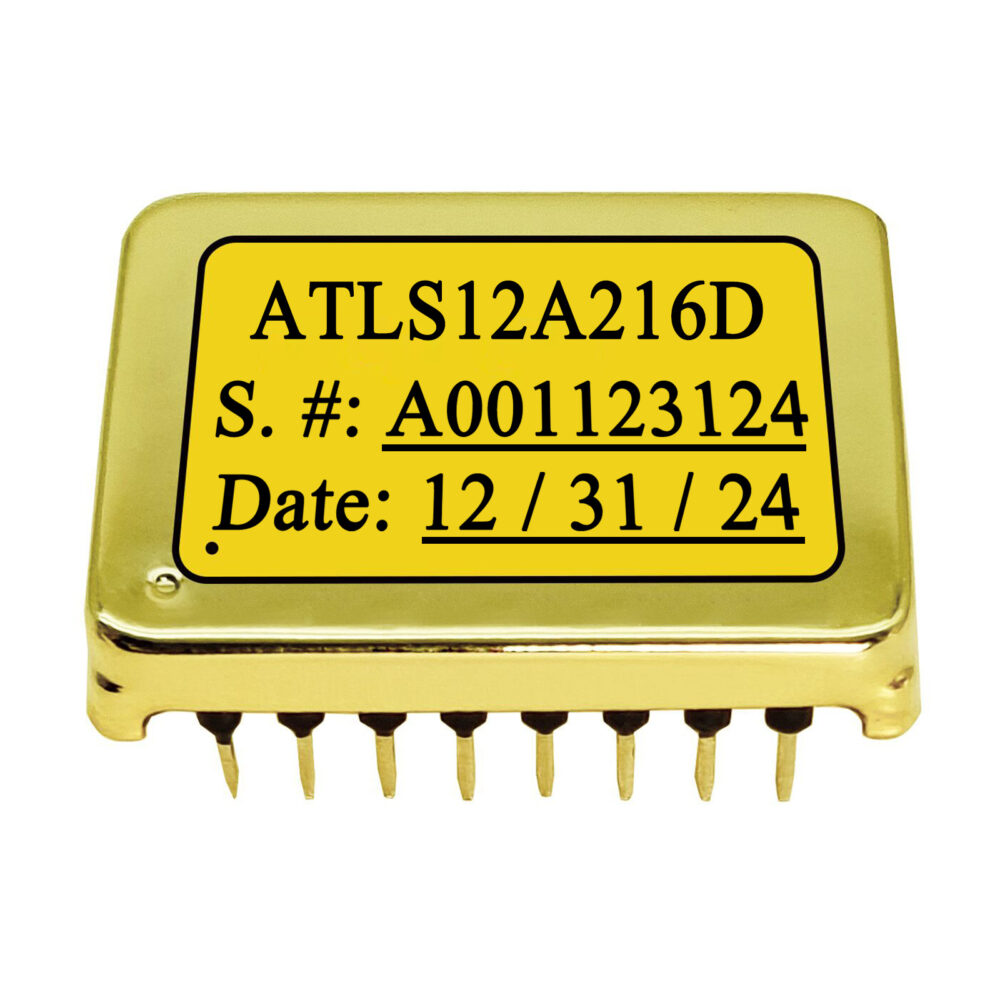

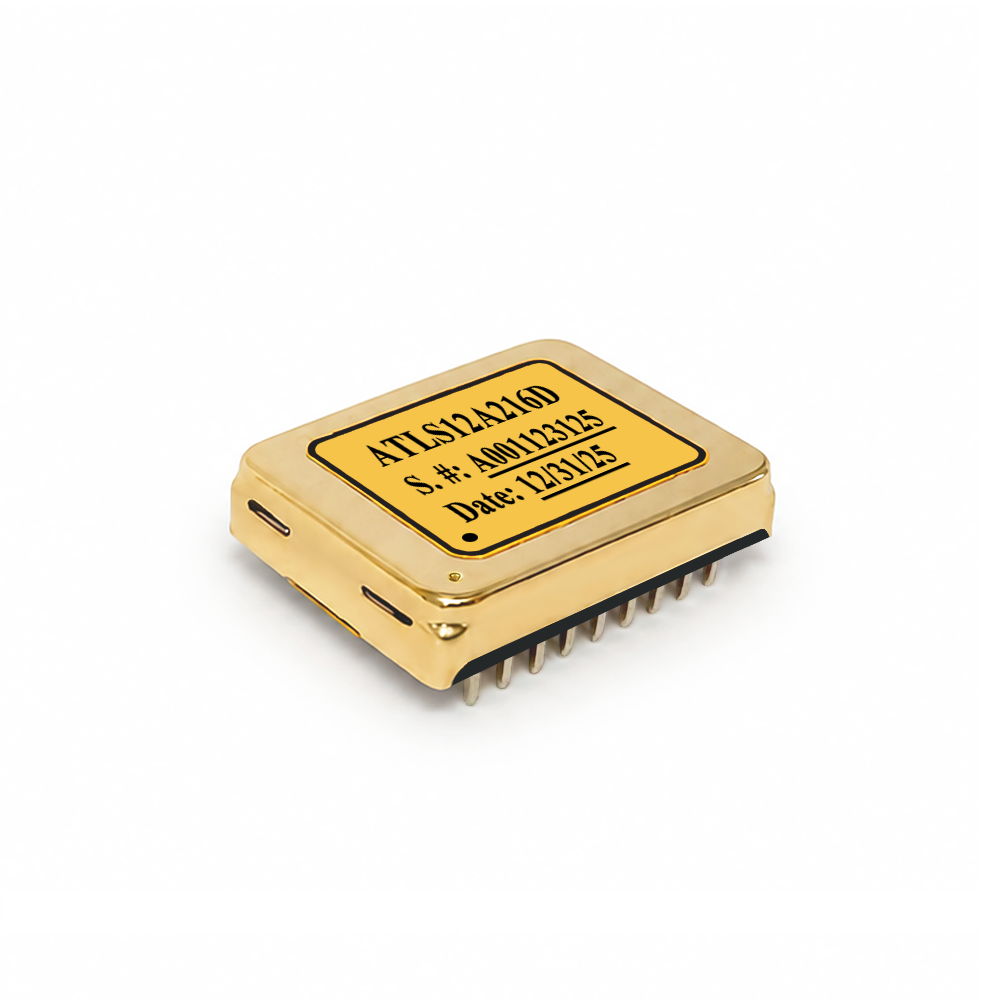

ATLS12A216D PWM Laser Driver, 12A, DC Input

ATLS12A216D PWM Laser Driver, 12A, DC Input

$129.00

Constant Current Laser Diode Driver
Input Voltage (VVPS): 5.5V ~ 15V
Output Voltage: 1.1V ~ 12V (0.2VVPS ~ 0.8VVPS)
Max. Output Current: 12A
Noise: <12µAP-P

4 in stock (can be backordered)

Datasheet

Discount per Quantity

QuantityPrice
1 - 9$129.00
10 - 49$126.00
50 - 199$122.00
200 - 499$119.00
500 +$114.00
SKU: ATLS12A216D Category:

Product Overview

The ATLS12A216D is a constant current laser diode driver designed for driving up to 12A laser diodes. It operates from a 5.5V ~ 15V power supply and delivers stable current output across a 1.1V ~ 12V load voltage range.
The driver is suitable for applications including DPSSL, EDFA, Fiber Lasers.

Specifications

Input Voltage (VVPS) 5.5V ~ 15V
Output Voltage 1.1V ~ 12V (0.2VVPS ~ 0.8VVPS)
Max. Output Current 12A
Noise <12µAP-P
Stability <±600µA @12A, -20°C ~ 80°C
Modulation BW DC ~ 20kHz
Efficiency 90% (IOUT=12A, VLDA=10V, VVPS=15V), heat sink required
Drive Type Switch
Package Type DIP
Input Type DC Medium
Operating Temperature (°C) -40 ~ 110
Dimension (mm) 27.4×21×5.7
Weight 0.3 lbs
