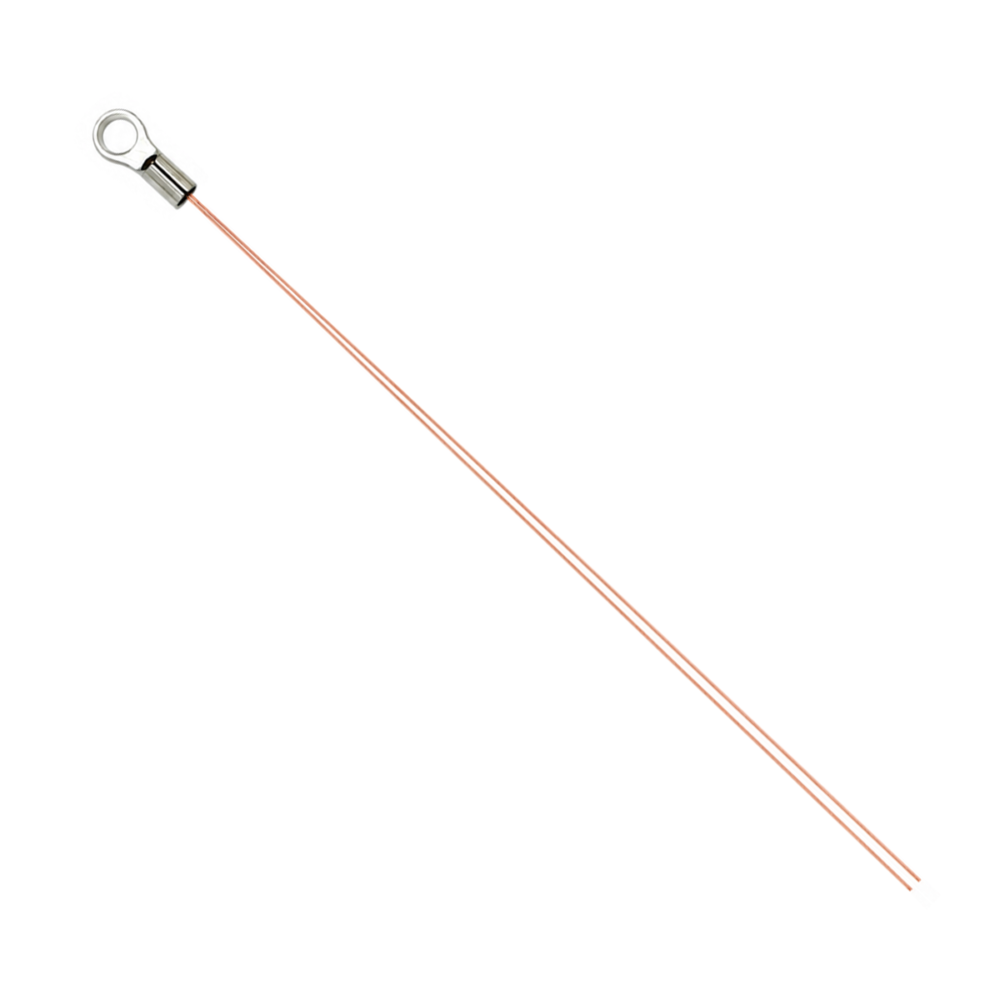

ATH10KB3404KL2A 10KΩ 1% 3404K NTC Thermistor (Ring Lug, Bare Leads)
$3.50
NTC Thermistor (Negative Temperature Coefficient)
R25: 10KΩ
Tolerance: ±1%
B-Value: 3404K (25/50)
Operating Temp: -40°C ~ +250°C
Dissipation Factor: 1.2mW/C
Package: Ring Lug
Lead Type: Bare leads
Dimensions: Lug: L8.1 ± 0.1mm × W3.6 ± 0.1mm
Discount per Quantity
| Quantity | Price |
|---|---|
| 1 - 9 | $3.50 |
| 10 - 49 | $3.30 |
| 50 - 199 | $3.10 |
| 200 - 499 | $2.90 |
| 500 + | $2.70 |
Product Overview
ATH10KB3404KL2A is a 10KΩ ±1% NTC thermistor (B-value 3404K @25/50) built in a ring lug package with bare tinned leads, rated for -40°C ~ +250°C operation.
The ring-lug terminal bolts directly onto a heatsink, cold plate or chassis for solid thermal contact. Ideal for precision temperature sensing, measurement and compensation in laser diodes, optical modules, CCD/IR cameras and medical or industrial instruments; pairs with ATI TEC modules and temperature controllers.
Specifications
| Resistance (R25) | 10KΩ |
| Tolerance | ±1% |
| B-Value | 3404K @25/50 | 3450K @25/100 |
| Operating Temp. Range | -40°C ~ +250°C |
| Dissipation Factor | 1.2mW/C |
| Time Constant (Air) | 4s |
| Insulation Resistance | ≥10MΩ |
| Package Type | Ring Lug |
| Lead Type | Bare leads |
| Lead Ø | 0.15 ± 0.05mm |
| Lead Length | 60 ± 5mm |
| Dimensions | Lug: L8.1 ± 0.1mm × W3.6 ± 0.1mm |
| Weight | 0.04 lbs |
|---|
